Inductive Proximity Sensor, Metal Detection, PNP, M5

M5 inductive proximity sensor, shielded and flush-mountable, reliably detects ferrous metals like steel and iron and non-ferrous metals like aluminum and brass up to 1 mm non-contact. Its compact brass housing with potted electronics ensures IP67 resistance to dust, washdown, and coolant. Operating from -30°C to 65°C, it fits robotic tooling, cylinder sensing, and shaft monitoring.

SKU: CCHN-PROS-I5

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Inductive proximity sensor with M5×1 thread and PNP output, available directly from the manufacturer. Its compact M5 design is especially suitable for space-constrained equipment and tight installation environments. Insulation impedance between the charging part and housing is ≥50MΩ (DC 500 megameter), ensuring robust electrical safety.

Functions

Red LED checks the state of the proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range 12-24V DC
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
PNP output positive signal for PLC, NPN gives 0V, verify PLC input type
Can replace small switches and limit switches

Specification

Model			CCHN-PSI-5A1ZP
Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
			NC
Detection range			1mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 551mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection; A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel-plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Proximity sensor inductive M5 dimensional drawing

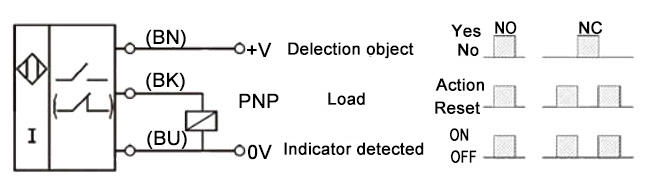

Wiring diagram

Proximity sensor PNP wiring

Tips: What is the difference between NO and NC Inductive Proximity Sensor?

A Normally Open (NO) inductive proximity sensor keeps its output OFF (no signal) when no metal target is detected, and turns ON (delivers a positive voltage for PNP type) as soon as the target enters the sensing range. This makes a NO inductive proximity sensor ideal for simple presence detection, part counting, and positioning tasks where a signal is only required when the object is present.
In contrast, a Normally Closed (NC) sensor maintains a continuous ON signal under normal conditions, and switches OFF (drops to 0V) when the target is detected. NC is preferred for fail-safe control systems, because any broken wire or power loss also cuts the signal, immediately triggering an alarm or machine stop. When choosing between them, select NO for standard on-demand detection and NC for safety-critical circuits that require constant loop monitoring. Always verify your PLC input type (PNP or NPN) and wiring to ensure proper compatibility with your selected output logic.
