Proximity Sensor, Inductive, NPN, NO/NC, 4 mm

4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 1mm detection distance, using for precise positioning of molds, precision machine tools and robots. The inductive proximity sensor is used to detect magnetic metals (for non-magnetic metals, the detection range is reduced).

SKU: CCHN-PROS-I4

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

With a nickel-plated brass housing and ABS plastic detection surface, the inductive proximity switch has an IP67 protection rating and can be used for metal detection in a variety of industrial environments.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			CCHN-PSI-4A1ZN
Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
Detection range			1mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 551mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Proximity sensor inductive 4 mm dimensional drawing

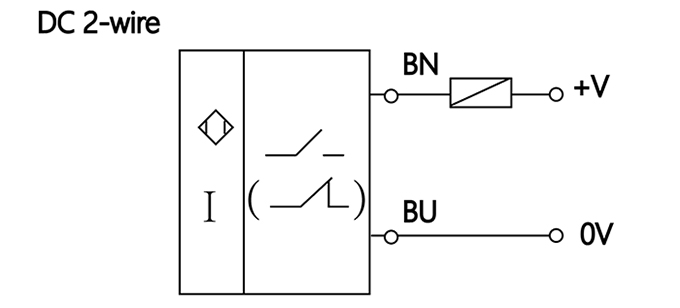

Wiring diagram

Proximity sensor NPN wiring

Tips: How to choose a proximity sensor?

Inductive proximity sensor and capacitive proximity sensor are often used in the general industrial sites. Because these two types of proximity sensors have lower standard on environment. If the detected object is a conductive object or an object fixed on metal, inductive proximity sensor will be generally chosen for its high response frequency, excellent anti-jamming performance, wide range of application and lower price. If the detected object is a non-metal (or metal), liquid height, powder height, plastic or tobacco etc, capacitive proximity sensor will be chosen for its low response frequency but good stability. On the occasion of better environment and non-dust pollution, photoelectric proximity sensor can be chosen because it almost has no effect on the detected object during operation. If the detected object is made from permeability magnetic material, or is buried of a magnet steel in order to distinguish the detected object from another object that moves together, Hall proximity sensor will be chosen due to its lowest price. Sometimes in order to improve the reliability of identification, the above-mentioned several proximity sensors are often used in combination.
