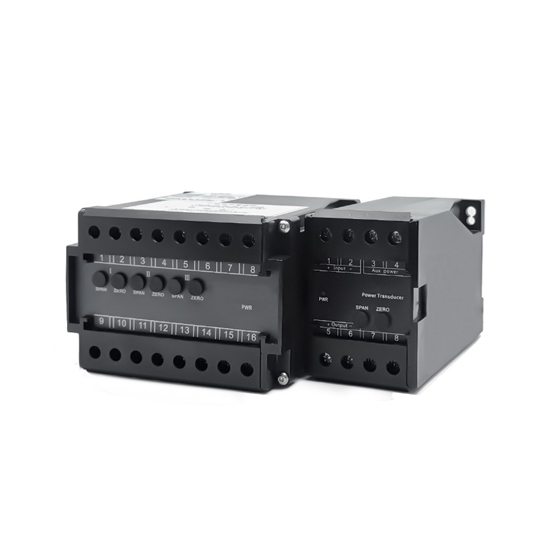

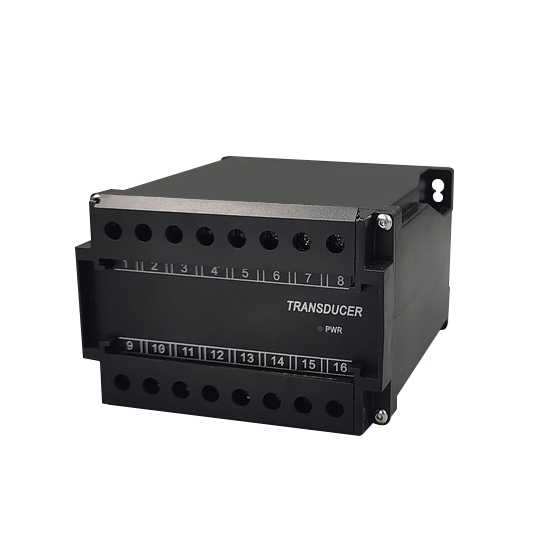

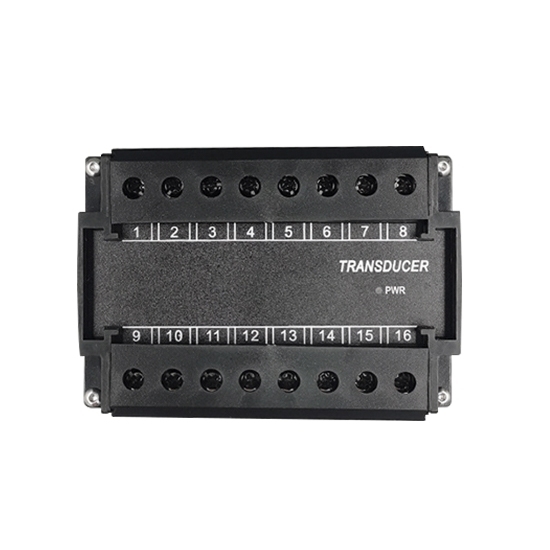

Reactive Power Transducer, 3 Phase 3 Wire/ 3 Phase 4 Wire

Reactive Power Transducer, 3 Phase 3 Wire/ 3 Phase 4 Wire

Good price reactive power transducer for sale. The measurement of the reactive power transducer is three-phase three-wire or three-phase four-wire. The standard range is 0~173.2var, 0~866var, 0~3000var, 0~±173.2var, 0~±866var, etc. The reactive power transducer has high accuracy and sensitive response, with an accuracy of 0.2/0.5 and a response time of less than 400ms.

SKU: CCHN-PT-Q3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The input, output, power supply and shell of the reactive power transducer are isolated from each other, which can prevent high-voltage signals from harming equipment and personnel. The compressive strength of the reactive power sensor is AC2Kvrms/min, and the insulation resistance is greater than 100 MΩ at DC 500V. It uses a 35mm standard rail or is fixed on a cabinet. The reactive power transducer has good quality and is easy to install.

Specification

Model	CCHN-PT-HDB-Q3
Measurement	3phase 3wire or 3phase 4wire (optional)
Input	AC Voltage: 57.7V, 100V, 220V, 380V, 450V, 600V, customization AC Current: 1A, 5A, 10A, 20A, customization (optional)
Standard Range	0~173.2var, 0~866var, 0~3000var, 0~±173.2var, 0~±866var (optional)
Input Load	CT of voltage transformer: ≤0.1VA CT of current transformer: ≤0.2VA
Allow Overload	Voltage × 1.2 times the nominal value continuous Current × 1.2 times the nominal value continuous Current × 10 times the nominal value for 10s
Accuracy	0.2, 0.5 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (non-condensing state)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (non-condensing state)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 450 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimensions	120（L）× 110（W）× 75（H）mm
Installation Method	35mm standard rail or fixed on the cabinet

Dimension (Unit: mm)

Dimension of reactive power transducer

Calibration Fine Tuning

Reactive power transducer calibration fine tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

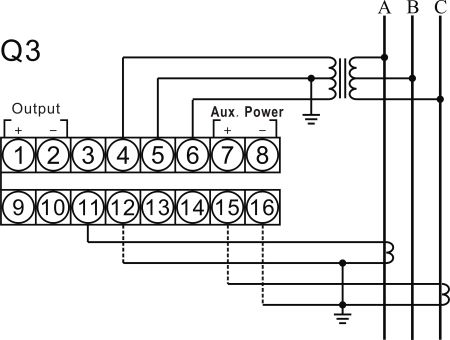

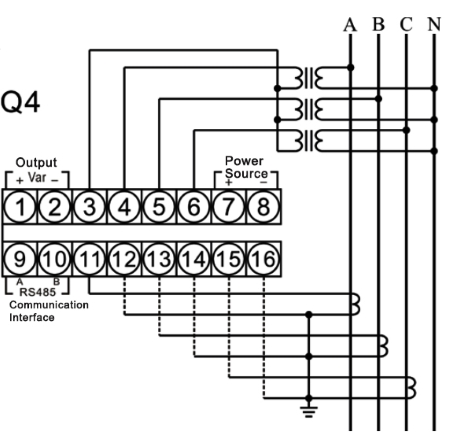

Wiring

Tips: Active Power Transducers vs. Reactive Power Transducers

Measurement Purpose: Active power transducers measure active power (W/kW) that performs actual work. Reactive power transducers measure reactive power (VAR/kVAR) that affects power quality but does no useful work.
Application Focus: Choose active power transducers for energy monitoring, efficiency analysis, and load management. Use reactive power sensing for power factor correction and reactive power compensation.
Load Type: Active power dominates in resistive loads (heaters, incandescent lamps). Reactive power is present in inductive/capacitive loads (motors, transformers, fluorescent lamps).
Power Factor Impact: The higher the active power, the higher the efficiency. Excessive reactive power results in lower power factor, resulting in wasted energy and higher costs.
