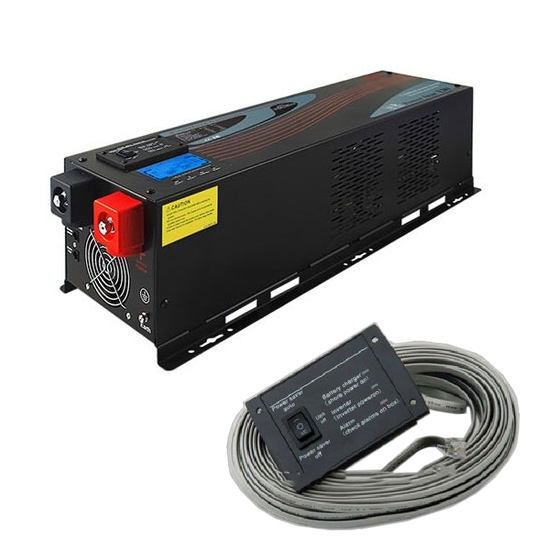

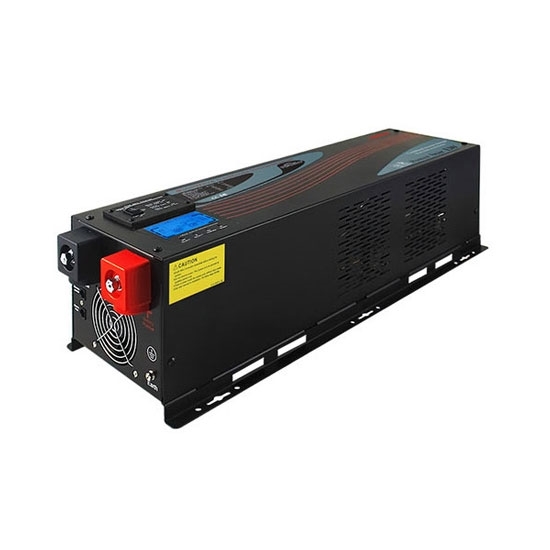

4000 Watt 24V/48V Pure Sine Wave Inverter Charger

4000 Watt 24V/48V Pure Sine Wave Inverter Charger

High efficiency pure sine wave inverter / charger outputs 4000W continuous power and 12000 surge power, low frequency type, optional 24V or 48V DC input and 110V/120V or 220V/230V/240V AC output voltages, also available with 240V AC input & 120V/240V AC split phase output, real-time LCD display, easy to install, with protections against overload, over-temperature, low battery and overcharge, ideal for powering most household appliances.

SKU: CCHN-PI-LW4000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

4000 Watt off grid inverter battery charger delivers reliable pure sine wave power from 24V/48V DC battery source, low frequency type with transformer, UPS function. The combined inverter / charger is ideal for powering refrigerators, air conditioners, TVs, fans, computers, audio/video components or other equipment, appliances and electronics. It is widely applied in wind generator, solar power system, house, vehicle, ship, navigation, mobile electricity work and telecommunications device, launch station and any places where the city power is needed.

Features

4000 Watt continuous output power
Peak power is 3 times of rating power
Pure sine wave output, available for sensitive loads such as air conditioner, motor door, etc.
Fast and powerful inverter charger, 3-step progressive charging, 7 battery type selector
High power factor
Automatically transfer between battery and line mode
Microprocessor control guarantees the high reliability
Optional remote control function
Multi safety protections against over load, over temperature, over charging, and low battery
LCD digital display shows voltage, load and battery info in real time
Apply for split phase system, 2 live lines 1 neutral line, and voltage is 120V/240V

4000W Inverter/Charger Specification

Model		LW4000
Power		4000 Watt
AC Input	Phase	Single Phase
	Waveform	Pure Sine Wave
	Voltage*	110V/120V AC or 220V/230V/240V AC
	Acceptable Voltage	95-126V AC or 194-253V AC±4%
	Low Line Disconnect	85V AC±4% or 184V AC±4%
	Low Line Re-connect	95V AC±4% or 194V AC±4%
	High Line Disconnect	136V AC±4% or 263V AC±4%
	High Line Re-connect	126V AC±4% or 253V AC±4%
	Frequency	50Hz: 41-54Hz or 60Hz: 51-64Hz (Auto detection)
AC Output	Phase & Waveform	Single Phase & Pure Sine Wave (bypass mode sync to input)
	Voltage*	110V/120V AC or 220V/230V/240V AC 120V/240V AC split phase output Also Available: L1+L2=240V, L1+N=120V, L2+N=120V
	Voltage Regulation	±10%rms (bypass mode sync to input)
	Frequency	50Hz±0.3Hz or 60Hz±0.3Hz (bypass mode sync to input)
	Peak Power	3 times of rating power (12000W)
	Short Circuit Protection	Yes, shutdown after 10ms
	Power Factor	0.9-1.0
	Outlet	Wiring terminal block
DC Input	Battery Voltage*	24V DC	48V DC
	Minimum Start Voltage	20V DC		40V DC
	Low Battery Alarm	21±0.6V DC		42±1.2V DC
	Low DC Input Shut-down	20±0.6V DC		40±1.2V DC
	High DC Voltage Alarm & Fault	32±0.6V DC		64±1.2V DC
	High DC Input Recovery	31±0.6V DC		62±1.2V DC
	Max Charger Current	20A/35A/50A/75A/90A (According to the inverter model)
Efficiency	Line Mode	>96%
	Battery Mode	>85%
General	Power Saver	Load ≤ 25W (Enabled on "P/S auto" setting of Remote control)
	Audible Alarm	Sounding when the heat sink's temperature is over 105℃ and shutdown after 30 seconds.
	Over Load Protection	110%＜load＜150%, beeps 0.5s every 1s, and Fault after 60s. Load＞150%, beeps 0.5s every 1s, and Fault after 20s.
	Protections	Low battery, over charging, over temperature, over load
	Remote Control*	Wired remote control (5m) for power on/off
	Indicators	LCD display
	Operating Environment	0-40℃, 0-90%℃ RH (non-condensing)
	Protection Grade	IP20
	Audible Noise	<60dB
	Net Weight	35.5kg
	Dimension (LxWxH)	660×225×200mm

Note:
* It can be selected in the drop-down list.

Details

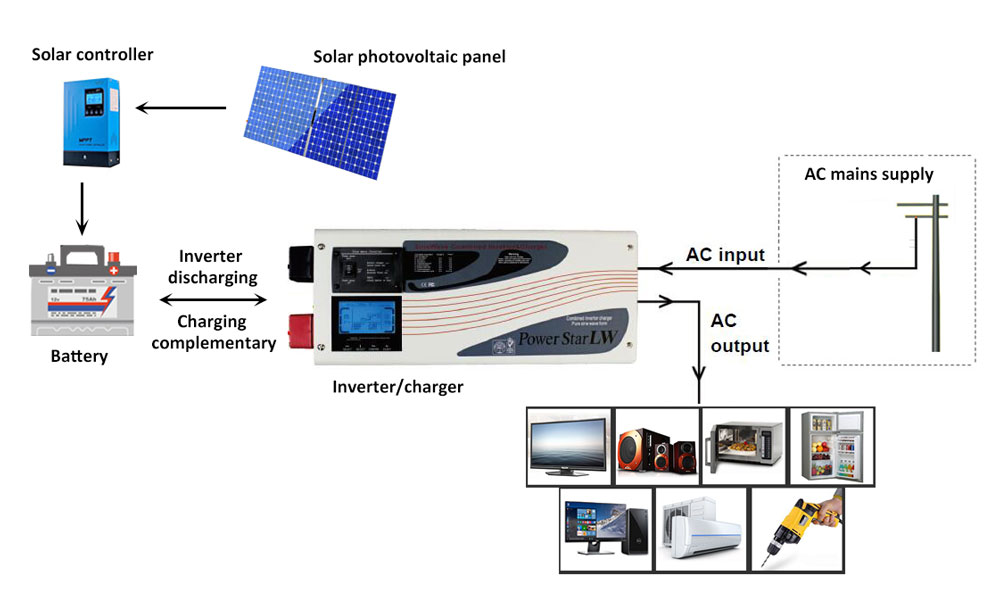

Inverter/Charger Working Principle & Applications

Inverter Split-Phase Output Terminal Description

Tips: Daily Maintenance of Power Inverters

1. Check whether the load is within the rated power, the voltage range and current of the power inverter.

2. Maintain your inverters properly and regularly: use wet cloth to wipe out the external dust and dirt of the inverter; tighten the screw of the DC input terminal; use high-pressure air gun to clean up the internal dust and foreign matter.

3. Inverter must be turned off when cleaning and maintenance is carried out.

4. In the process of maintaining inverters, it is best to do the following:

First, periodically check whether the line part is intact. If there is something abnormal, it is necessary to timely replace.
Secondly, in the process of using the inverters, it is necessary to stop and check immediately if there is a problem. Only after the problem is solved, can the inverters continue to be used.
Thirdly, in the process of maintenance, the failure of unknown cause should be recorded in advance, and then ask the manufacturer to deal with it.
Fourth, when cleaning inverters, it is necessary to use soft cloth for scrubbing, not to use too much friction scrubbing tools.
Fifth, periodically check whether its heat sink and seal are blocked or not. If so, dust should be disposed of in time.
