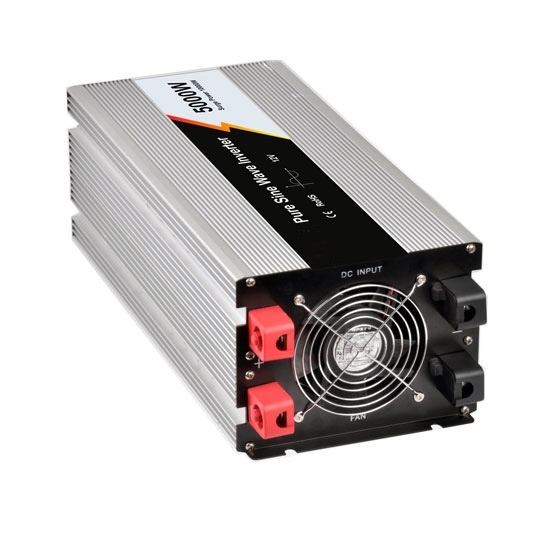

5000 Watt Pure Sine Wave Power Inverter, 24V DC to 220V AC

5000W 12V/24V/48V DC to 110V/220V AC pure sine wave power inverter for sale, ideal for charging both resistive and sensitive electronics or appliances like cell phones, digital cameras, laptops, air conditioner, refrigerator, power tools and so on at home or outside like road trip, vacation, camping and any places where the AC power is needed.

Specification

Features

• 5000 Watt continuous power and 1000 Watt peak power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy casing with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

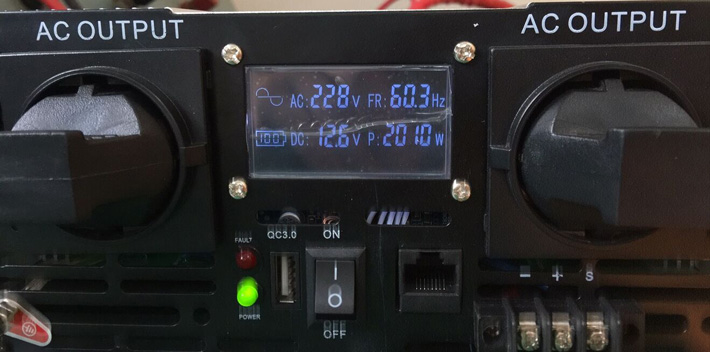

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

• Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Using a car inverter with engine off: is it possible and for how long?

Yes. In the use of low-power appliances below 350 watts, normally the car battery can provide 30-60 minutes of power with the engine off. If only one laptop with 50-60 watts is charged, it will last longer time. For true pure sine wave power inverters, they have an under voltage alarm and under voltage protection circuit. When the battery is used for a long time and the voltage drops to 10V, the under voltage protection circuit starts and the output voltage is cut off and alarms, to prevent that the battery’s voltage is too low to start the engine.

Take another battery of the same voltage, and respectively connect its positive and negative electrodes to the positive and negative electrodes of the original vehicle battery with thick wires. In this way, the power inverter can be used greatly longer.
