3000 Watt Pure Sine Wave Power Inverter, 24V DC to 120V AC

Powerful 3000 watts pure sine wave inverter can convert 12V/24V/48V DC battery power into clean & stable 100V/110V/120V/220V/230V/240V AC power, ideal DC to AC inverter for car & home to power your devices like cell phone, laptops, tablets, lights, TV, computer, fan, refrigerattor, washing mashine, microwave oven etc.

Specification

Features

• Delivers 3000 Watt continuous power and 6000 Watt peak power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy casing with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

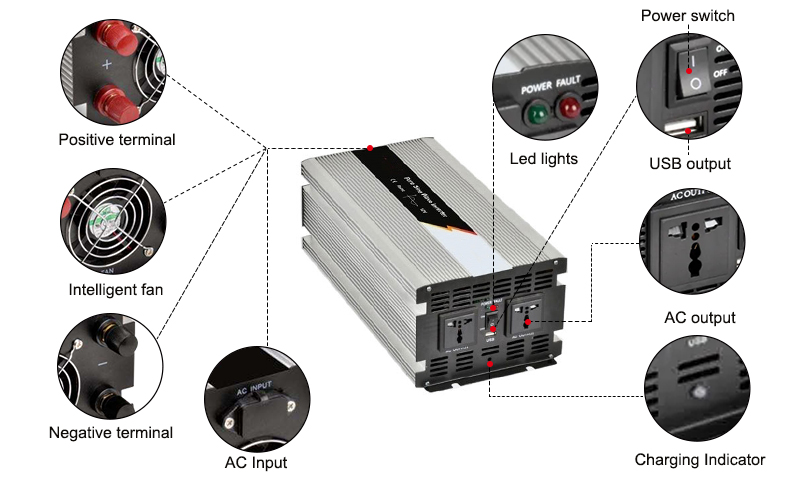

Details

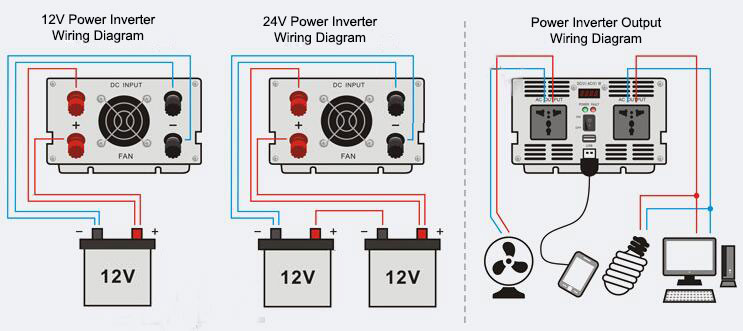

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

• Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Pure sine wave power inverter applications

The pure sine wave power inverter can provide clean, stable and high quality AC power, ideal for powering all kinds of electrical appliances including sensitive electronics like air conditioner, refrigerator etc., and resistive electronics, such as bulbs, TV, fans and etc.

More applications see below:

• Industrial equipment: solar energy system, solar street light system, etc.
• Travel set equipment: vehicles, ambulances, RV, boats, traffic lights, etc.
• Office devices: computers, printers, scanners, digital cameras, etc.
• Household appliances: electric fans, vacuum cleaners, air conditioning, lighting, microwave, refrigerators etc.
• Power tools: pumps, saws, drills, punching machines, air compressors, etc.
