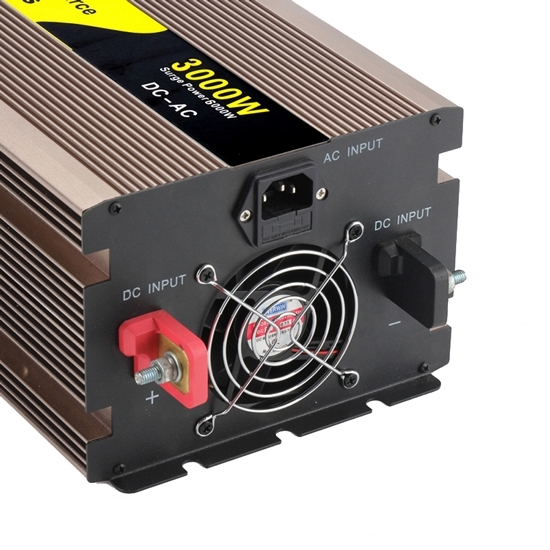

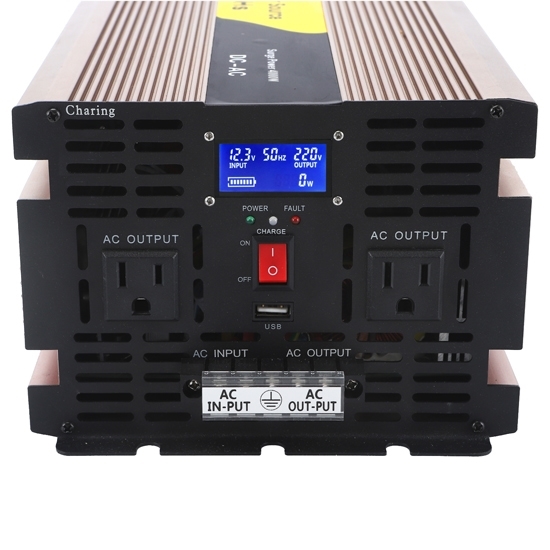

3000W (3 kVA) UPS Inverter For Home

3000 watt (3 kVA) pure sine wave ups inverter provides over load and over voltage protection. Automatically switch with a ultra-fast switching time. UPS home inverter price is affordable and easy to connect batteries or vehicles.

Features

• 3000W ups inverter with pure sine wave output (THD＜3%).
• Built-in 3-stages battery charger, allow to run loads while charging.
• Automatically switch with a ultra-fast switching time in ups inverter.
• High efficiency-converts the battery's available power in 3 kVA ups inverter.
• Pure sine wave ups inverter uses soft-start technology.
• 3000 watt ups inverter with 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
• Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries in 3000 watt ups inverter.
• Aluminum shell with good heat dissipation and strong shock resistance.
• Uninterruptible power supply with USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
• Intelligent fan for cooling, make 3kVA ups inverter long use life.
• LED indicators for power and protections.
• Switch-mode design in ups inverter, easy to use.

Specification

• Model: CCHN-REPU-3000
• Rated Power: 3000W (3 kVA)
• Peak Power: 6000W
• Input Voltage: DC 12V, DC 24V, DC 48V (Optional)
• Output Voltage: 100V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC±5% (Optional)
• Output Frequency: 50Hz±0.5Hz, 60Hz±0.5Hz (Optional)
• Phase: 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
• Output Waveform: Pure sine wave
• Waveform Distortion: THD＜3% (Linear load)
• Cooling Method: Intelligent air cooling
• Power Switching Time: ≤ 9 ms
• USB Port: 5V 1A
• Max. Efficiency: 90%
• Working Temperature: -10 ℃— +50 ℃
• Storage Temperature: -30 ℃— +70 ℃

Dimension (Unit: mm)

UPS Inverter Output Socket (Optional)

Advantages of UPS Inverter

Tips: Types of UPS

• Passive backup ups power supply. Itrefers to the inverter connected in parallel between the mains and the load is simply used as a backup power source. This kind of ups power supply, when the mains is normal, the load is completely and directly municipal power supply, the inverter does not do any power conversion, the battery is powered by an independent charger. When the mains is abnormal, the load is completely supplied by the inverter.
• Online interactive ups power supply. The inverter is connected in parallel between the mains and the load, playing the role of backup power supply, while the inverter as a charger to charge the battery. The reversible operation of the inverter interacts with the mains, so it is called interactive. It is especially suitable for distributed power supply system of some computer equipment in the network.
• Double transform ups power supply. It has the advantages of good performance, high voltage stability and frequency stability, strong function, hot backup connection and parallel redundancy connection.
