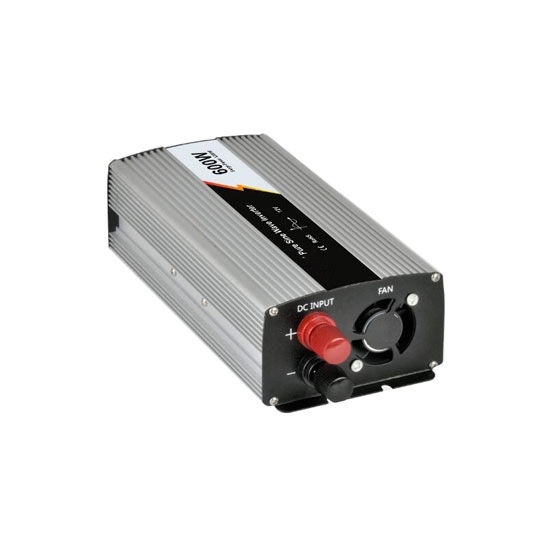

600 Watt Pure Sine Wave Power Inverter, 12V DC to 110V AC

Light and compact 600W pure sine wave power inverter for sale, converting DC to AC power, optional DC input 12V/24V/48V and AC output 110V/120V/220V/230V/240V. Low price, high efficiency and stable performance, ideal for home & car.

Note: 600W pure sine wave inverter can barely power a small refrigerator, but there is a certain risk. Recommend to buy an inverter with higher power.

Specification

Features

• 600 Watt continuous power and 1200 Watt peak power
• Pure sine wave inverter, capable of producing clean & stable electricity
• Soft-start technology
• USB charging port for powering your phone, laptop, etc.
• Aluminum alloy shell with good heat dissipation
• Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
• ON/OFF switch design, easy to use
• Intelligent cooling fan, long working life

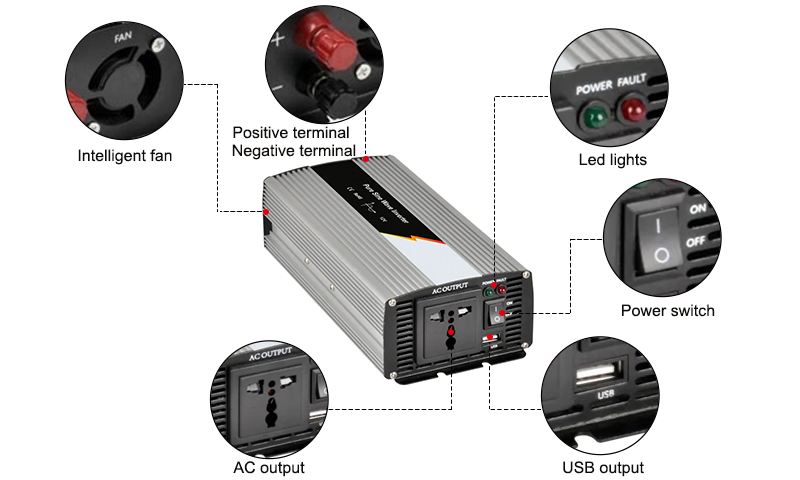

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

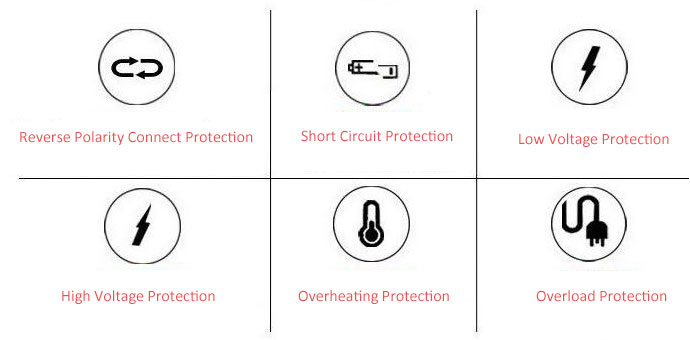

Protection Functions & Applications

• Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
• Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
• Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
• Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
• Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
• Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Car Inverters Applications

Inverters are used to convert DC power (batteries) into AC power, and it consists of an inverter bridge, control logic, and a filter circuit. It is widely used in air conditioner, home theater, electric grinding wheel, electric tools, sewing machines, DVD, VCD, computers, TV, washing machines, range hoods, refrigerators, video recorders, massagers, fans, lighting and so on.

Besides, when you drive to work or travel, the car inverter works which can be connected to the batteries or car cigarette lighter to energize the electrical appliances. The powers of car inverter output via the cigarette lighter have 20W, 40W, 80W, 120W, and 150W. For the larger power like 300W, 500W, 600W etc., the power inverters need to be connected to the battery via the cable. Thus, the home appliances can work as they are connected to the output side of the power inverter, such as cellphones, laptops, digital cameras, lights, electric razors, CD players, game consoles, PDAs, power tools, car refrigerators, and various travel, camping, medical emergency appliances.
