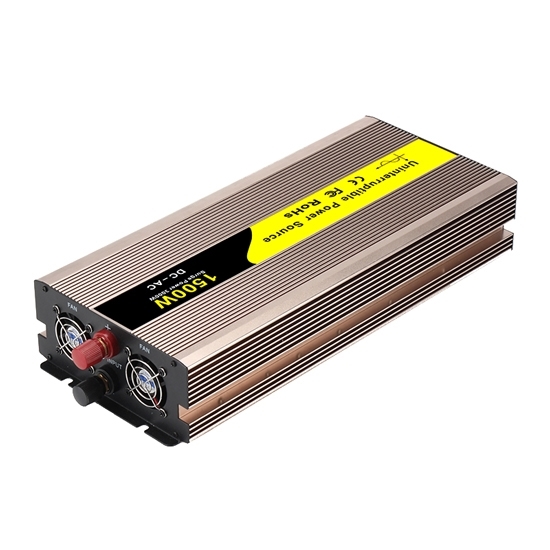

1500W (1600 VA) UPS Inverter For Home

Cheap pure sine wave ups inverter for home with 1500 watt for sale online. Maximum upload current 0.2A, 0.3A, 0.4A, 50Hz or 60Hz output frequency can be selected in ATO. 1500W ups inverter with over voltage, over load and over temperature protection.

SKU: CCHN-UPSIV-1500

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1500 watt (1600 VA) ups inverter with pure sine wave output. Uninterruptible power supply inverter working temperature between -10 ℃ and 50 ℃. Switch-mode design in ups inverter, convenience to use.

Features

1500W ups inverter with pure sine wave output (THD＜3%).
Built-in 3-stages battery charger, allow to run loads while charging.
Automatically switch with a ultra-fast switching time.
High efficiency-converts the battery's available power.
Pure sine wave 1500 watt ups inverter uses soft-start technology.
90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries in 1600 VA ups inverter.
Aluminum shell with good heat dissipation and strong shock resistance.
Uninterruptible power supply with USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
Intelligent fan for cooling, long use life.
LED indicators for power and protections.
Switch-mode design in ups inverter, easy to use.

Specification

Model: CCHN-REPU-1500
Rated Power: 1500W (1600 VA)
Peak Power: 3000W
Input Voltage: DC 12V, DC 24V, DC 48V (Optional)
Output Voltage: 100V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC±5% (Optional)
Output Frequency: 50Hz±0.5Hz, 60Hz±0.5Hz (Optional)
Phase: 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Output Waveform: Pure sine wave
Waveform Distortion: THD＜3% (Linear load)
Cooling Method: Intelligent air cooling
Power Switching Time: ≤ 9 ms
USB Port: 5V 1A
Max. Efficiency: 90%
Working Temperature: -10 ℃— +50 ℃
Storage Temperature: -30 ℃— +70 ℃

Input Voltage	DC 12V	DC 24V	DC 48V (if you want, please contact us)
Unload Current Less Than	0.4A	0.3A	0.2A
Charging Current	20A	10A	5A
Input Voltage Range	10-15.5V	20-31V	40-61V
Low Voltage Alarm	10.5±0.5V	21±0.5V	42±1V
Low Voltage Protection	10±0.5V	20±0.5V	40±15V
Over Voltage Protection	15.5±0.5V	31±0.5V	61±1V
Low Voltage Recover	12.3±0.5V	24±0.5V	48±1V
Over Voltage Recover	14.8V±0.5V	29.5V±0.5V	59V±1V

Dimension (Unit: mm)

1500w UPS inverter dimension

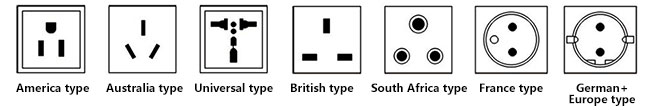

UPS Inverter Output Socket (Optional)

UPS inverter optional sockets

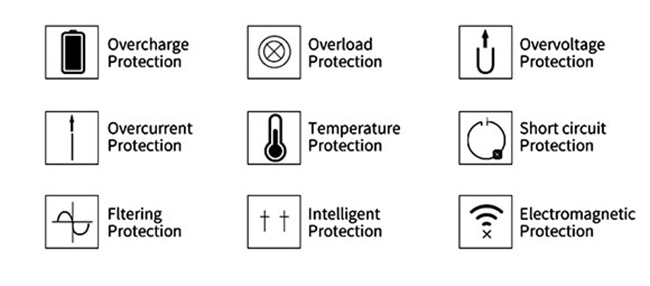

Advantages of UPS Inverter

UPS inverter advantages

Tips: What Kind of Battery Does UPS Inverter Use?

Lead-acid battery. At present, the most commonly used lead-acid battery is valve controlled lead-acid maintenance-free battery. The electrolyte is mainly composed of lead and sulfuric acid. It is characterized by no need to add water and acid when used, good sealing, relatively small volume, and high cost performance as a ups battery. In addition to maintenance-free lead-acid batteries, there are open liquid lead-acid batteries, which need to regularly measure the specific gravity, add water and acid. If these batteries are used, anti-corrosion bricks need to be laid in the installation environment.
Lithium battery. It is the first choice for environmental protection. Lithium batteries are free of heavy metals such as lead, nickel and chromium. Compared with ordinary lead-acid batteries, lithium batteries have the characteristics of light weight, high energy storage and low self-discharge.
