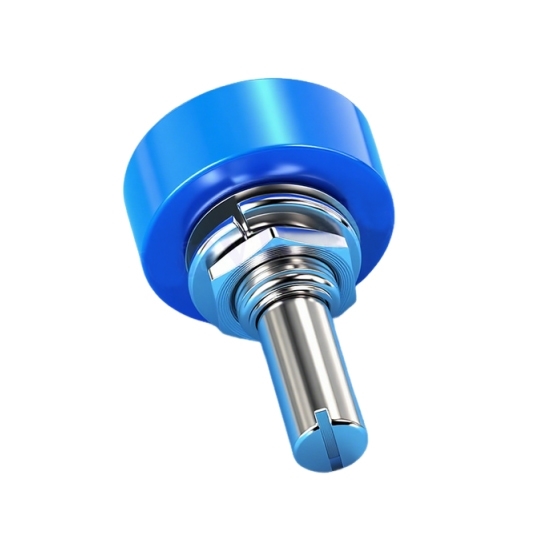

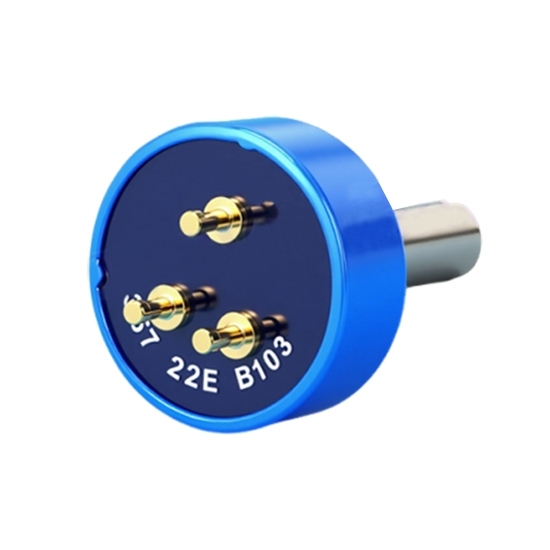

360 Degree Continuous Rotation Potentiometer, 1k/2k/5k/10k Ohm

360 Degree Continuous Rotation Potentiometer, 1k/2k/5k/10k Ohm

ATO continuous rotation potentiometer provides unlimited 360° rotation, smooth adjustment and reliable signal control with 1k/2k/5k/10kΩ resistance options. Featuring 1,000,000 cycles rotation life, silver-plated copper contacts and stable performance, it is designed for industrial equipment, automation systems and precision control applications. Get this durable potentiometer for your project.

SKU: CCHN-POT-CR

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

360 degree continuous rotation potentiometer delivers various resistance, ±10% tolerance, low rotational noise <100mV and excellent insulation performance. Built with corrosion-resistant housing and dust-resistant wiring design, it ensures reliable operation in harsh environments. Ideal for smart devices, instruments and electronic systems.

Specification

Model	CCHN-357-22E
Electrical Characteristics	Total Resistance	B10KΩ
	Total Resistance Tolerance	±10%
	Resistance Taper	B
	Rated Power	Linear taper 0.025 W
	Max. Operation Voltage	AC 5V, DC 12V
	Residual Resistance	Between terminal (1-2)/(2-3): 20 Ω Max.
	Gang Error	-40dB~0dB
	Insulation Resistance	100MΩ min at 100 VDC.
	Withstand Voltage	1 minute at AC 300 V
	Rotational Noise	Less than 100 mV.
Mechanical Characteristics	Total Rotation Angle	360° unlimited
	Rotation Stopper Strength	0 kgf.cm Max.
	Operation Torque	20 gf.cm ~ 50 gf.cm
	Push-pull Strength	Push: 0.5 kgf.cm Max; pull: 0.2 kgm.cm Max
	Switch Rotational Angle	Less than 340°
	Switch Action	50 gf.cm ~ 100 gf.cm
	Resistance to Soldering Heat	Less than 270℃ and quicker than 3 seconds
Durability	Rotation Life	1000000 Cycles
Durability	Switch Load Life	1000000 Cycles

Features

360° Unlimited Rotation Design: The 360 degree potentiometer adopts a continuous rotation potentiometer structure with unlimited 360° rotation and no mechanical stop, enabling continuous position control and smooth adjustment for precision control applications.
1,000,000 Cycles Long Service Life: Offering up to 1 million rotation cycles, the rotary potentiometer delivers exceptional durability with stable output performance, helping reduce maintenance frequency and replacement costs.
Multiple Resistance Options Available: Available in 1kΩ, 2kΩ, 5kΩ, and 10kΩ resistance values, this continuous rotation potentiometer offers flexible selection for different circuit designs, control systems, and potentiometer applications.
Stable and Accurate Signal Output: This potentiometer uses silver-plated copper contacts to improve conductivity and contact sensitivity. With rotational noise below 100mV, it ensures reliable signal adjustment and stable control performance.
Durable Industrial Structure: A high-strength corrosion-resistant housing protects internal components from environmental impact, allowing the precision potentiometer to maintain dependable operation in industrial environments.
Reliable Electrical Protection Performance: This continuous rotation potentiometer offers ≥100MΩ insulation resistance and AC 300V withstand voltage, combined with a dust-resistant wiring port to improve electrical safety, reliability, and service life.

Dimension (unit: mm)

Continuous rotation potentiometer dimension

Tips: What is a continuous rotation potentiometer?

A continuous rotation potentiometer is a type of rotary potentiometer that allows the shaft to rotate continuously without mechanical stops. Unlike standard potentiometers with limited rotation angles, it provides unlimited 360° adjustment for continuous signal control.
It works by changing the position of the internal wiper on the resistive element during rotation, which adjusts the output voltage or resistance. A 360 degree potentiometer is commonly used in industrial automation, robotics, control systems, and precision equipment requiring frequent and smooth rotary adjustment.
