Pneumatic Foot Pedal, 3 Way 2 Position, with Pneumatic Fitting

3 Way 2 position pneumatic foot pedal with pneumatic fitting, 6mm, 8mm or 10mm is optional, textured rubber pad to effectively prevent slipping, improve work efficiency.

Specification

• Model: CCHN-FV3206
• Working Medium: Air
• Action Mode: Foot control direct action
• Port Size: PT 1/8
• Number of Positions: 3 Way 2 position
• Operating Pressure Range: 0~0.8 MPa (0~114 psi)
• Pressure Resistance: 1.5 MPa (215 psi)
• Working Temperature: -20~70℃
• Material: Aluminum alloy
• Weight: 490g

Features

• Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
• Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
• The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
• Bold spring, good quality and durable, not easy to rust.

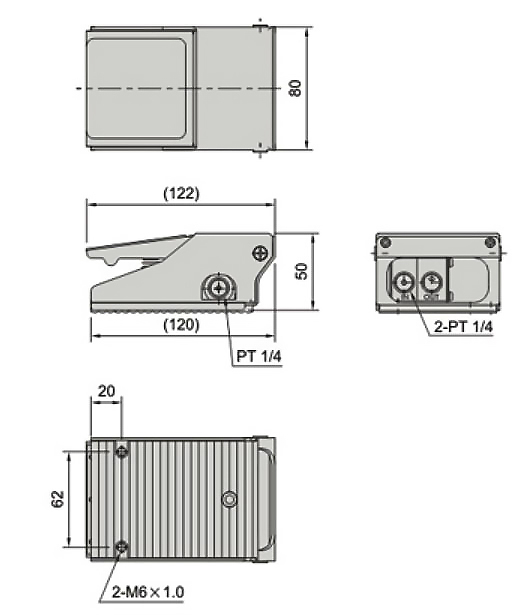

 3 Way 2 Position Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Details

Tips: Pneumatic foot pedal applications

Operating foot switches are used for applications in a variety of environments. They are particularly suitable for applications in the medical industry. They are easy to clean and easy to use. Pneumatic foot pedals are commonly used for medical bed mobility, OEM applications and various industrial applications.
