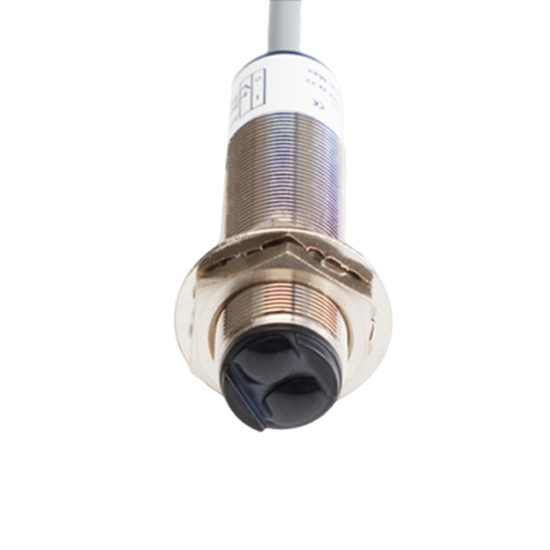

M18 Photoelectric Switch Sensor, Diffuse Type, 30-1000mm

M18 Photoelectric Switch Sensor, Diffuse Type, 30-1000mm

ATO diffuse reflection photoelectric sensor provides stable and accurate short- to mid-range detection with easy sensitivity adjustment. Its nickel-plated copper M18 housing ensures reliable performance in demanding industrial environments. The sensor supports either NPN or PNP output models, allowing users to choose the version that fits their control system.

SKU: CCHN-PHOS-M18DT

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

M18 photoelectric switch sensor offers steady detection even in changing light environments, keeping production lines stable. Its adjustable sensing range supports flexible installation across different machines. Built for continuous use, it delivers long-lasting performance with minimal maintenance.

Specification

Model	CCHN-FTD-18300NO; CCHN-FTD-18500NO; CCHN-FTD-181MNO; CCHN-FTD-18300PO; CCHN-FTD-18500PO; CCHN-FTD-181MPO
Dimensions	M18*68mm
Reflection Mode	Diffuse Reflection
Output Mode	NPN/PNP NO
Sensing Distance (Sn: mm)	300mm/500mm/1m Adjustable
Housing Material	Copper with Nickel Plating
Operating Voltage	10-30VDC
Ripple	=10%
Sensing Distance Tolerance	±10%Sn
Switch Hysteresis	<15%
Light Source	Infrared Light (880nm)
Maximum Output Current	200mA
No-Load Current	30mA
Voltage Drop	2.5V
Sensitivity Adjustment	Trimmer 1turn
Response Time	<5ms
Short-Circuit Protection	Yes
Power-On Protection	Yes
Operating Temperature	0-55℃
Ambient Humidity	35 to 85% RH
Maximum Glare Intensity	≤10,000LUX
Protection Rating	IP66
Sensing Object Size	20*20cm White Cardboard
Connection Method	D530.15/40.15 2m PVC
Weight	107g
Warranty	1 year
DC 3-Wire 10-30V NPN NO	CCHN-FTD-18300NO; CCHN-FTD-18500NO; CCHN-FTD-181MNO
DC 4-Wire 10-30V NPN NO + NC	CCHN-FTD-18300NS; CCHN-FTD-18500NS; CCHN-FTD-181MNS
DC 3-Wire 10-30V PNP NO	CCHN-FTD-18300PO; CCHN-FTD-18500PO; CCHN-FTD-181MPO
DC 4-Wire 10-30V PNP NO + NC	CCHN-FTD-18300PS; CCHN-FTD-18500PS; CCHN-FTD-181MPS

Supplementary Form

Model	Detection Type	Output Type	Output Mode	Sensing Range
CCHN-FTD-18300NO	Diffuse Reflection	NPN	NO	30-300mm
CCHN-FTD-18500NO			NO	70-500mm
CCHN-FTD-181MNO			NO	200-1000mm
CCHN-FTD-18300PO		PNP	NO	30-300mm
CCHN-FTD-18500PO			NO	70-500mm
CCHN-FTD-181MPO			NO	200-1000mm

Features

Durable Industrial Design: The nickel-plated copper housing with IP66 protection resists impact, oil, and chemicals, ensuring stable operation in harsh environments.
Reliable Circuit Protection: Built-in short-circuit and surge protection reduces electrical faults and helps safeguard connected control equipment.
High-Precision Optical Core: The imported optical module offers strong anti-interference performance and <5 ms response for fast, accurate detection.
Adjustable Detection Range: With a 30–1000 mm sensing range and fine-tuning, it enables a precise setup for various installation requirements.

Dimension

M18 photoelectric switch sensor diffuse type dimension

Tips: How to troubleshoot when a fault occurs?

When troubleshooting the CCHN photoelectric sensor, start by confirming a stable power supply and correct wiring. Clean the lens and check alignment to remove optical interference, then use the indicator lights to pinpoint fault conditions. If problems continue, inspect the environment for strong light or electrical noise, and test with another sensor to quickly isolate the cause.
