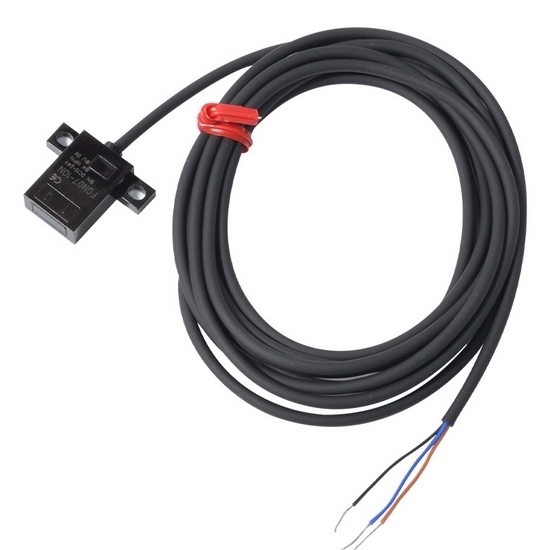

Mini Rectangular Photoelectric Switch, 10mm, 24V

Mini Rectangular Photoelectric Switch, 10mm, 24V

ATO Mini rectangular photoelectric switch features a compact body, offering a 0–10mm diffuse sensing distance and operating on 24V DC, while providing fast

Operating Voltage *

SKU: ATO-PHOS-24V

Qty:

SKU: CCHN-PHOS-24V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Designed for tight spaces, this micro photoelectric sensor delivers stable infrared detection with strong ambient-light resistance. Multi-directional sensing and multiple output options can be selected according to individual needs. Built-in protection and a durable design ensure reliable industrial performance.

Specification

Model	CCHN-FGN07-10N; CCHN-FGN07-10P; CCHN-FGN07-10NA; CCHN-FGN07-10PA	CCHN-FGN07-10ND; CCHN-FGN07-10PD; CCHN-FGN07-10NAD; CCHN-FGN07-10PAD
Detection Direction	Front	Above
Detection Type	Diffuse Reflection
Detection Distance	0-10mm
Connection Method	3-core cable (2.5mm diameter, 2m length)
Power Supply Voltage	12-24VDC
Light Source	940nm infrared modulated light
Control Output	NPN.NO/NC, PNP.NO/NC
Sensitivity Adjustment	None
Maximum Output Current	50mA
Current Consumption	<25mA
Response Time	<1ms
Power Polarity Reversal Protection	Built-in
Short Circuit & Overload Protection	Built-in
Hysteresis	10%
Ambient Temperature	-25°C to 55°C
Ambient Humidity	35%-85% RH
Ambient Light Intensity	Daylight: 10,000 lx, Artificial Light: 3,000 lx
IP Rating	IP66
Dimensions	26×20×7mm
Weight	200g
Notes	Customizable 5V products available

Supplementary Form

Model	Detection Direction	Output Method	Operating Voltage
CCHN-FGN07-10N	Front Detection	NPN NO	DC12-240V
CCHN-FGN07-10P		PNP NO
CCHN-FGN07-10NA		NPN NC
CCHN-FGN07-10PA		PNP NC
CCHN-FGN07-10ND	Above Detection	NPN NO	DC12-24V
CCHN-FGN07-10PD		PNP NO	DC12-240V
CCHN-FGN07-10NAD		NPN NC	DC12-24V
CCHN-FGN07-10PAD		PNP NC	DC12-24V

Feature

Compact Design: Mini photoelectric sensor 26×20×7mm fits tight spaces.
Fast Detection: <1ms response with 0–10mm short-range sensing.
Ambient-Light Resistant: 940nm infrared works in bright or dusty environments.
Durable & Reliable: Built-in protection ensures stable industrial performance.

Dimension

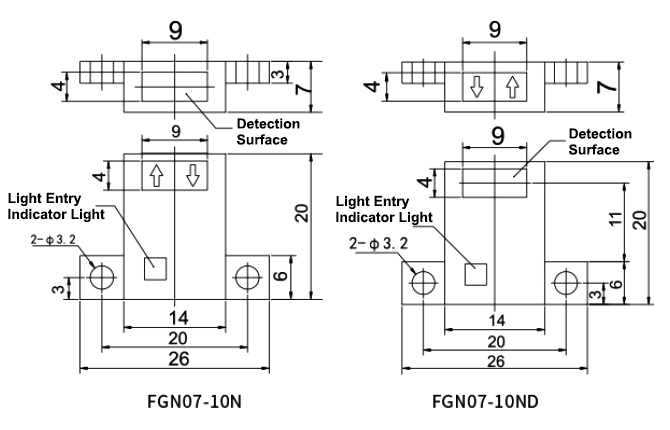

Rectangular photoelectric switch dimension_1

Rectangular photoelectric switch dimension_2

Wiring Diagram

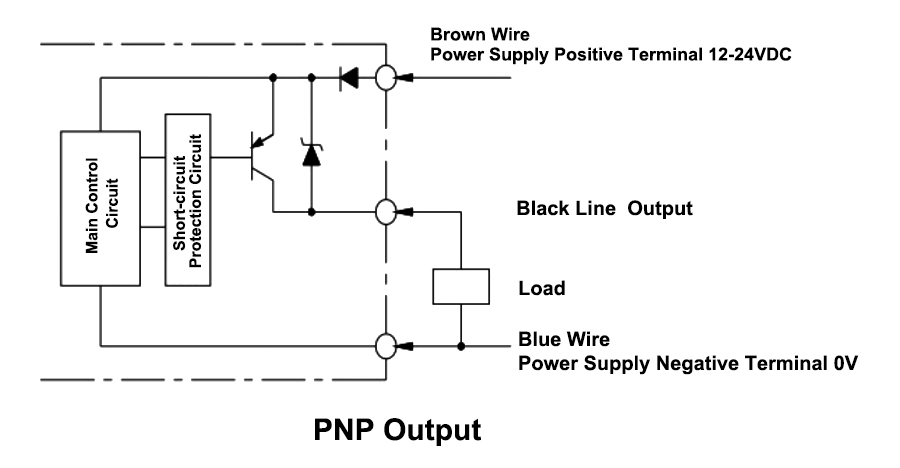

Rectangular photoelectric switch wiring diagram_1

Rectangular photoelectric switch wiring diagram_2

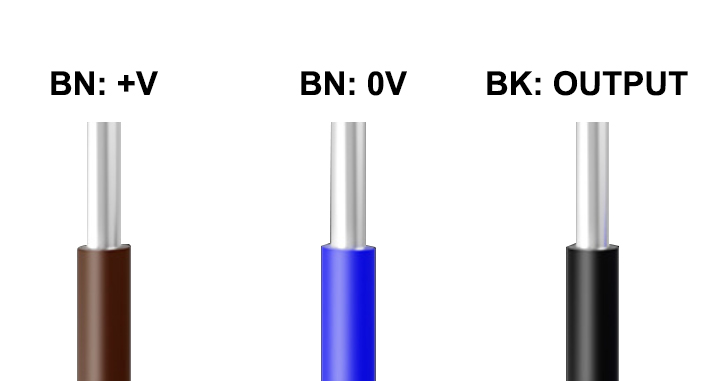

Rectangular photoelectric switch wiring diagram_3

Tip: How to select the appropriate photoelectric switch model for a system?

Selecting the right mini rectangular photoelectric sensor requires considering both the sensing direction and the output type to match the control system requirements. Evaluate the installation environment, target material, and detection distance to ensure consistent detection performance. Choosing the proper model helps integrate the sensor seamlessly into equipment while maintaining stable, short-range detection.
