Photoelectric Distance Sensor, Diffuse Type, 10cm

Photoelectric Distance Sensor, Diffuse Type, 10cm

The photoelectric distance sensor features a 10cm sensing distance with a visible red LED light. Its switchable NO/NC output ensures flexible use, while detection remains stable. Incorporating diffuse type for accurate sensing even in complex environments. Multiple protections safeguard both the sensor and connected equipment.

SKU: CCHN-PHOS-DIS

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy photoelectric distance sensor online, 1–10 cm adjustable range, operating Voltage 12 ~ 24 VDC. Supports NO/NC output, stable detection, with diffuse type. Built-in protections ensure reliable performance.

Specification

Model	CCHN-FGN10-10NF-C	CCHN-FGN10-10PF-C
Output Type	NPN	PNP
Sensing Distance	10 cm
Light Source	Visible Red LED Light
Spot Size	Φ1 cm@10 cm
Operating Voltage	12 ~ 24 VDC
Maximum Load	150 mA
Response Time	≤ 1 ms
Current Consumption	< 20 mA
Sensitivity Adjustment	Adjustable

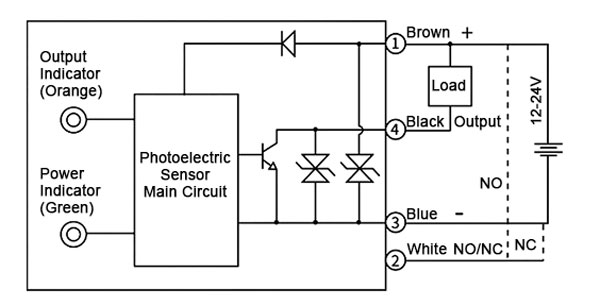

Control Output	NPN/ PNP Open-collector Output
Operation Mode	Light-ON/ Dark-ON
Operating Ambient Temperature	–10°C ~ +50°C (no condensation; no icing)
Operating Ambient Humidity	35% ~ 85% RH
Storage Temperature	–25°C ~ +70°C
Storage Humidity	35% ~ 95% RH
Operation Indicator	Green LED: Power Indicator; Orange LED: Output Signal Indicator
Housing Material	PC
IP Protection Rating	IP65
Cable Type	2 m Straight Cable

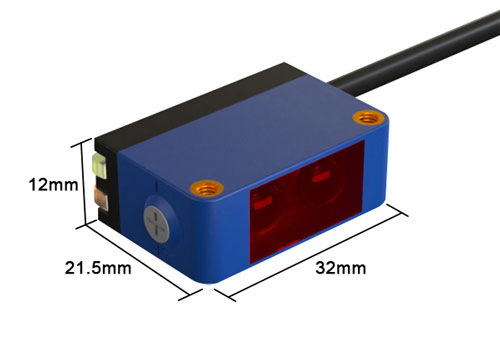

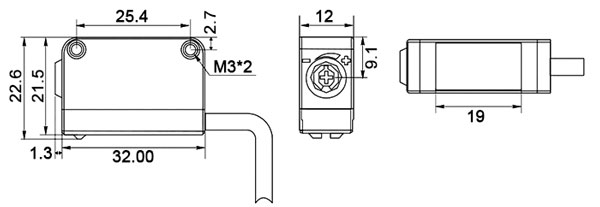

Dimensions	3222.612 mm
Weight	500 g

Feature

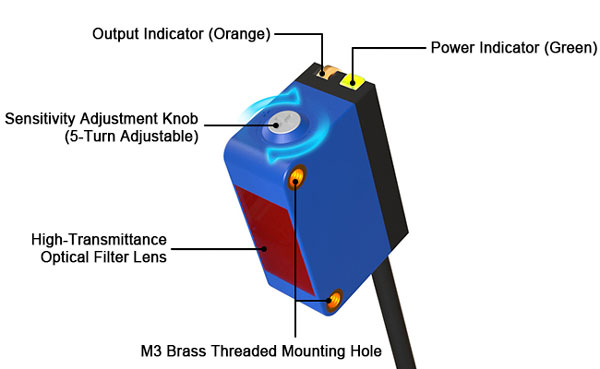

Overload Protection: The photo sensor automatically activates protection if an unstable or faulty load causes an excessive current draw.
Five-Turn Adjustable Sensitivity: This photoelectric distance sensor is designed with a large knob for easy adjustment of the sensing range, enabling precise positioning to achieve the optimal detection point.
Reverse Polarity Protection: The mini photo sensor is safeguarded against damage if the power supply wires are accidentally reversed.
Short-Circuit Protection: In the event of a load short-circuit, this electric distance photo sensor protects both itself and the connected load from being damaged.
High-Transmittance Filter Lens: Effectively filters out interference from other optical and electromagnetic sources.
