Infrared Diffuse Reflective Photoelectric Sensor, 10cm

Infrared Diffuse Reflective Photoelectric Sensor, 10cm

Infrared diffuse reflective photoelectric sensor for sale, delivering precise and rapid detection with a 10cm sensing range, 940 nm infrared light source and response time under 1 ms. Featuring a durable PC housing and IP54 protection, mini photoelectric sensor ensures stable operation in demanding environments such as chemical processing, production lines, textile manufacturing, CNC machinery, and escalator automation systems.

SKU: CCHN-PHOS-IDR

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy infrared diffuse reflective photoelectric sensor online to experience stable and precise detection for a wide range of industrial applications. Its compact and durable design ensures reliable sensing with high accuracy and stability, making the photo sensor ideal for advanced automation and process control systems.

Specification

Model	CCHN-FGN08-10N	CCHN-FGN08-10P
Output Mode	NPN.NO	PNP.NO
Detection Distance	100m
Connection Method	3-Core Cable (Diameter 2.5mm)
Supply Voltage	12-24VDC
Light Source	940nm Infrared Modulated Light
Maximum Output Distance	50mA
Consumption Current	<25mA
Reaction Time	<1ms
Short Circuit Protection	None
Ambient Light	Daylight:10000lx/ Lighting:3000lx
IP Degree	IP54
Size	8x11x32.5mm
Housing Material	PC Engineering Plastics
Weight	200g
Reverse Polarity Protection of Power supply	Built-in

Feature

High-Speed Response: With a reaction time of less than 1ms, the photo sensor is ideal for high-speed automation and production lines where speed is critical.
Stable Anti-Interference Performance: Utilizing 940nm modulated infrared light, this infrared diffuse reflective photoelectric sensor effectively resists interference from ambient light, including sunlight and factory lighting, for reliable operation.
Dual Output Flexibility: Infrared diffuse reflective photoelectric sensor offers both NPN and PNP (Normally Open) output types, providing easy compatibility with a wide range of PLCs and control systems.
Rugged & Compact Design: With an IP54 rating and a housing made of engineering plastics, this infrared diffuse reflective photoeye sensor is built to industrial environments, all in a compact 8x11x32.5mm size.
Easy to Integrate: Featuring reverse polarity protection and a standard 3-core cable, the photo sensor is designed for simple and safe installation, reducing setup time and errors.

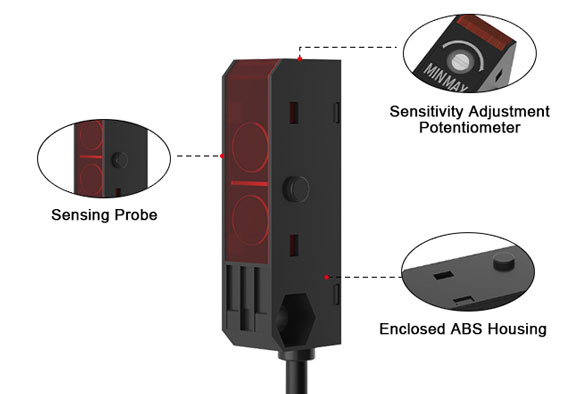

Detail

Infrared diffuse reflective photoelectric sensor

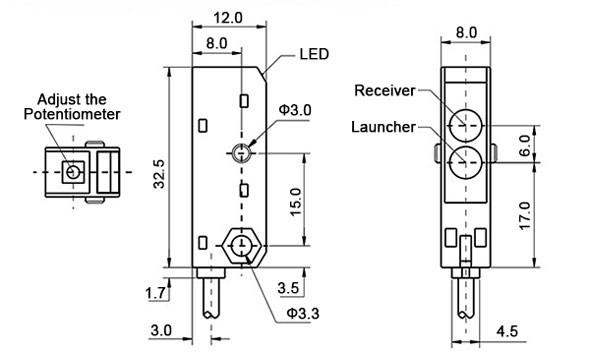

Size (unit: mm)

Infrared diffuse reflective photoelectric sensor

Wiring

NPN Output

Infrared diffuse reflective photoelectric sensor wiring

PNP Output

Infrared diffuse reflective photoelectric sensor wiring

Application

Infrared diffuse reflective photoelectric sensor

Tips: Infrared Through Beam Photoelectric Sensor VS Infrared Diffuse Reflective Photoelectric Sensor

Comparison Item	Infrared Through Beam Photoelectric Sensor	Infrared Diffuse Reflective Photoelectric Sensor
Operating Principle	The emitter and receiver are installed separately. The emitter continuously projects an infrared beam; when an object blocks the beam, the receiver signal is interrupted, indicating detection.	The emitter and receiver are housed together. The emitted infrared light is reflected by the object’s surface and received by the sensor, indicating the presence of the object.
Structure Type	Two separate units (emitter + receiver)	Single integrated unit (emitter and receiver combined)
Detection Method	Detects objects by beam interruption	Detects objects by reflected light intensity
Sensing Distance	Long	Short
Anti-interference Capability	Strong — resistant to ambient light, dust, and background interference	Weak — easily influenced by ambient light, dust, or surface conditions
Installation Requirement	Requires precise alignment between emitter and receiver	Easy installation, single-side mounting only
Typical Applications	Automatic doors, conveyor object counting, safety barriers, packaging and sorting systems	Automatic soap dispensers, sensor trash cans, assembly positioning, presence detection
Advantages	Long sensing range, high accuracy, strong anti-interference, reliable operation	Simple installation, cost-effective
