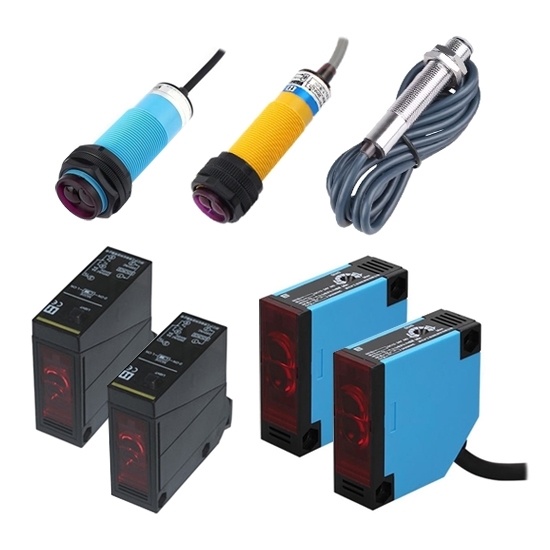

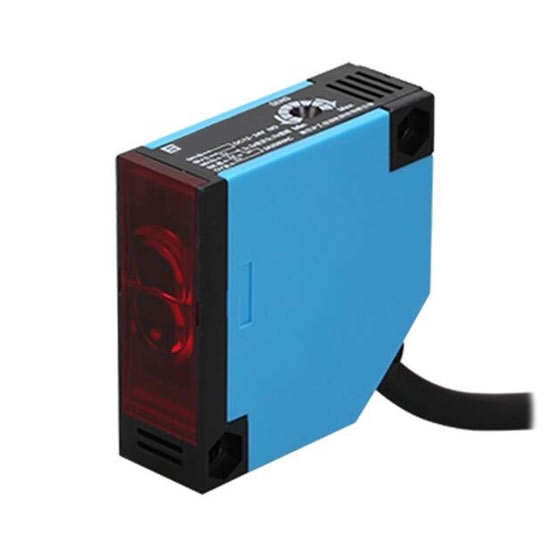

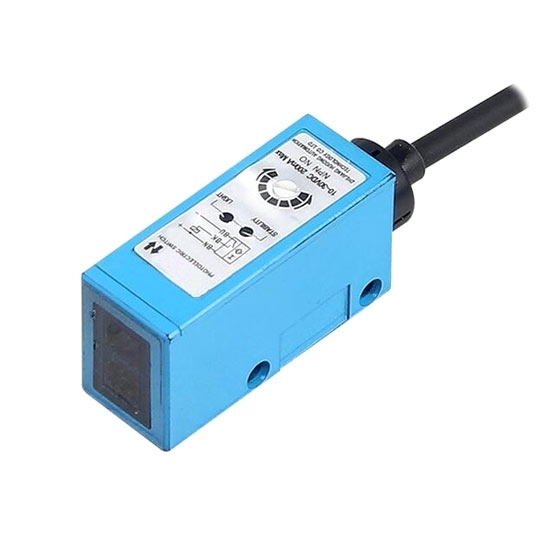

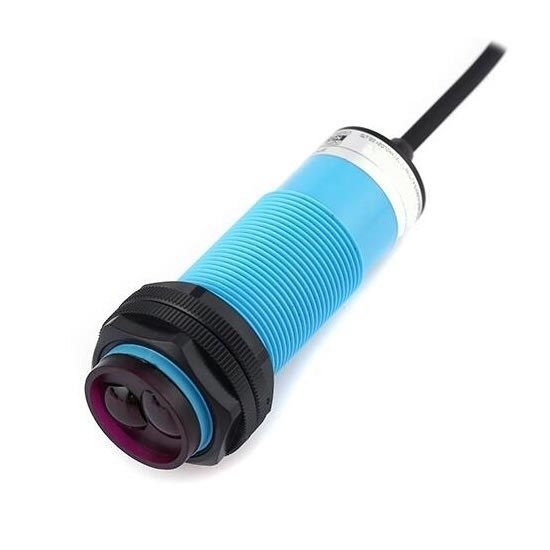

Diffuse Reflective Photoelectric Sensor

Diffuse reflective photoelectric sensor consists of light projector and light receiver in one, can distinguish transparent or opaque reflective object. The supply voltage is DC 12V-24V (6-36V) or AC 110V-220V (90-250V). Infrared photoelectric sensor can be compensated for longer distance with sensitivity controller, less susceptible to interference, fast reaction, long life, high resolution and high reliability.

SKU: CCHN-PHOS-DR

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Diffuse reflective photoelectric sensor with reverse power protection, short circuit protection, current overload protection, can be directly connected with PLC.

Applications: Photoelectric sensors have been used as position detection, liquid level control, product counting, width discrimination, speed detection, fixed length cutting, holes recognition, signal delay, automatic door sensing, color scale detection, punching and cutting Machine and security and many other areas. In addition, using the stealthiness of infrared, photoelectric sensors also can be used as a burglar alarm in banks, warehouses, shops, and offices.

Specification:
1. DC/AC output:

Type		Round type			Square amplifier built-in type
Dimension		M12*1	M18*1	M30*1.5	15.52141mm	10.82031mm
DC type	NPN	NO	NO	NO	NO	NO
		NC	NC	NC	NC	-
		-	NO+NC	NO+NC	-	-
	PNP	NO	NO	NO	NO	NO
		NC	NC	NC	NC	-
		-	NO+NC	NO+NC	-	-
AC type	Two-wire	-	NO	NO	-	-
		-	NC	NC	-	-
Detection range		8cm±10%	10-30cm±10%	50cm±10%	10cm±10%	5-10cm/20-50cm
Detection target		Transparent/opaque object	Transparent/opaque object	Transparent/opaque object	Transparent/opaque object	Transparent/opaque object
Detection range regulation		Fixed	Sensitivity controller	Sensitivity controller	Sensitivity controller	Sensitivity controller
Response time		1ms	1ms	1ms	1ms	1ms
Connection delay		1.5ms
Light source		Infrared light 660nm
Power supply		DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage		AC1000V 50/60Hz 1min between charging part and housing
Voltage influence		Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current		N/P type: ≤20mA, A type: ≤1.7mA
Control output		N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times)
Loop protection		N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity		Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence		Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance		≥50MΩ (DC500 megameter) between charging part and housing
Material		Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA
Protection class		IP67
Cable length		1.2m

2. Relay output:

Type	Square relay built-in type
Dimension	185050mm	256575mm
Relay output	DC illuminated	DC illuminated
	AC illuminated	AC illuminated
	DC non-illuminated	DC non-illuminated
	AC non-illuminated	AC non-illuminated
Detection range	30cm±10%	70cm±10%
Detection target	Transparent/opaque object	Transparent/opaque object
Detection range regulation	Sensitivity controller	Sensitivity controller
Response time	30ms	30ms
Response frequency	DC: 0.5kHz, AC: 25kHz
Delay distance	≤10% detection distance
Connection delay	1.5ms
Light source	Infrared light 660nm
Supply voltage	DC type: DC 12-24V (6-36V), Impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz; DC/AC type: DC 12-240V/AC 24-240V, 50/60Hz
Withstand voltage	AC1000V 50/60Hz 1min between charging part and housing
Voltage influence	Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Power current	≤3VA
Control output	≤2A (contact service life: 0.1 million times)
Allowed impulsion and vibration	B≤30g, T≤11ms, f≤55Hz, a≤1mm
Ambient temperature & humidity	Operation temperature/storage temperature: -30~65℃ (no freeze, no drew); Operation humidity/storage humidity: 35~95%RH
Temperature influence	Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance	≥50MΩ (DC500 megameter) between charging part and housing
Material	Housing: Aluminum die casting (ABS), Detection surface (lens): PMMA
Protection class	IP65
Cable length	1.2m

Wiring diagram:

Tips: Detection distance of diffuse reflection photoelectric sensor
The effective detection distance of the diffuse reflection photoelectric sensor is determined by the reflection ability of the detection object. The specific influencing factors are the distance between the detection object and the photoelectric sensor, the color, the size, the surface structure and the surface inclination of the detected object.
Through adjusting the potentiometer or mechanical adjustment knob in the photoelectric sensor, to improve the receiving sensitivity for reflected light. In the case of a fixed detection distance at the scene, if there is a strong reflected light background. In order to avoid photoelectric switch malfunction, it's better to use a background suppression diffuse photoelectric sensor. Or directly keep away from the background, remove the background, paint the background to be matt black, make the background to be rough or gray and other methods to eliminate bad effect.
