30mL/min DC 3V/6V/12V Micro Peristaltic Pump

30mL/min DC 3V/6V/12V Micro Peristaltic Pump

Affordable price micro peristaltic pump powered by 3V/6V/12V DC motor. Flow rate 15~30mL/min (11.4 gallon per day), maximum power 1W, water pressure 15 psi, tubing diameter 2.4mm, size 57*24.1*22mm, weight 38g. 2-hose peristaltic dosing pump, suitable for various liquids with small volume.

SKU: CCHN-PP-MPP40

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Micro peristaltic dosing pump for sale, working voltage DC 3V/6V/12V DC for selection, water flow rate of 11.4GPD (15~30mL/min), hose diameter 2.4mm. Miniature peristaltic pump used in liquid metering and transmission, applications include NPWT, sphygmomanometer, medical ventilator, infusion pump, biology laboratory, water dispenser, car air purifier, etc.

Specification

Model	CCHN-PP-MPP40
Water Flow Rate	mL/min	15~30
	GPD (gallon/day)	5.71~11.41
Rated Voltage	DC 3V, 6V, 12V
Power	＜1W
Tubing Size	Outer Diameter	4mm
	Inner Diameter	2.4mm
Overall Size	5724.122mm
Weight	38g
Rated Life	＞300h

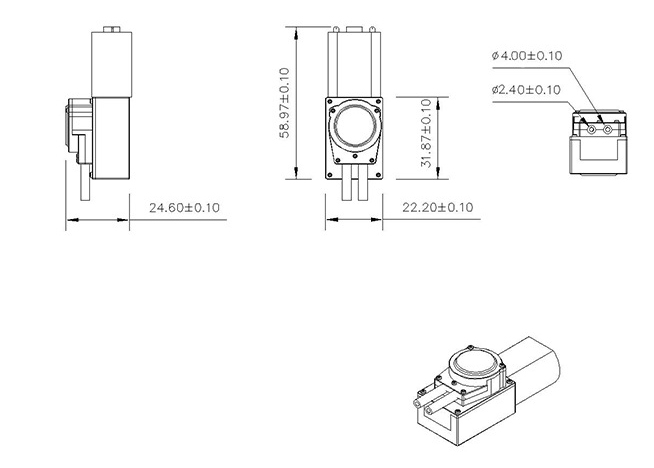

30mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

Dimensions of 30mL/min DC 3V/6V/12V Micro Peristaltic Pump

30mL/min Micro Peristaltic Pump Structure Diagram

Micro Peristaltic Pump Applications

Micro Peristaltic Pump Applications
