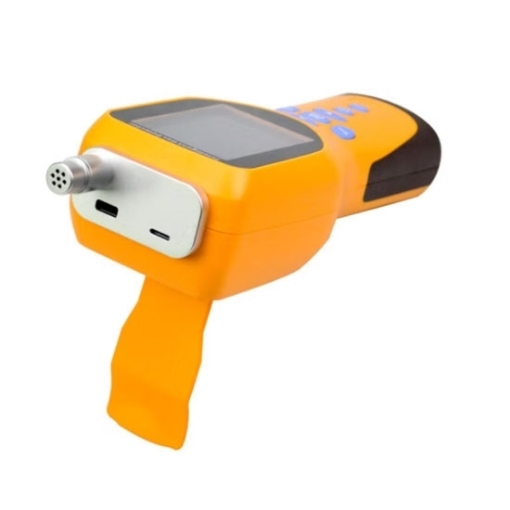

Handheld Laser Particle Counter, PM2.5/PM5/PM10

Handheld Laser Particle Counter, PM2.5/PM5/PM10

PM 2.5 handheld particle counter is used to detect the number of dust particles per unit volume in a clean environment, with switchable mass detection and quantity detection modes, 4000mA rechargeable battery ensures the durability of the laser dust counter. A dust particle counter is widely used in the operating room, food hygiene, cosmetics, blood products, pharmaceutical manufacturing, and other industries.

SKU: CCHN-PC-1000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air quality particle counting meter for sale, particle size 0.3um/0.5um/1.0um/2.5um/5um/10um, laser particle counter can be set in two modes: real-time detection and timed detection. The particle counters have a wide range of applications in the pharma industry, food hygiene industry, and cosmetics industry.

Specification

Model	CCHN-ET1000
Size Range	PM0.3/PM0.5/PM1.0/PM2.5/PM5.0/PM10
Measuring Particle Size	0.3μm, 0.5μm, 1μm, 3μm, 5μm, 10μm
Detection Method	Laser diffusion type
Temperature and Humidity	Temperature: -40~1209C, humidity: 0-95%RH
Detection Mode	Quantity mode PC/L, quality mode ug/m³
Alarm Mode	Sound and light alarm
Storage Mode	100,000 groups
Explosion-Proof Mark	ExdII CT6(Intrinsically safe)
Working Power	4000mA rechargeable polymer battery
Working Temperature	-30~60°C
Working Humidity	≤90%RH, non-condensing
Sensor	Imported ultra-high sensitivity optical sensor
Measurement Accuracy	≤±3%
Linearity Error	±1%
Sampling Time	30 seconds
Detection Mode	Timing detection, cycle detection can be set
Communication Interface	RS232-USB
Printing Mode	Print cycle, automatic printing, manual printing
Protection Level	IP66
Dimension	243x85x55mm (LxWxH)
Weight	0.5 kg (net weight of the instrument)
Standard Accessories	Instrument case, manual, certificate of conformity, USB charger + data cable, calibration cover
Optional Accessories	Micro printer

Dimension Unit (mm)

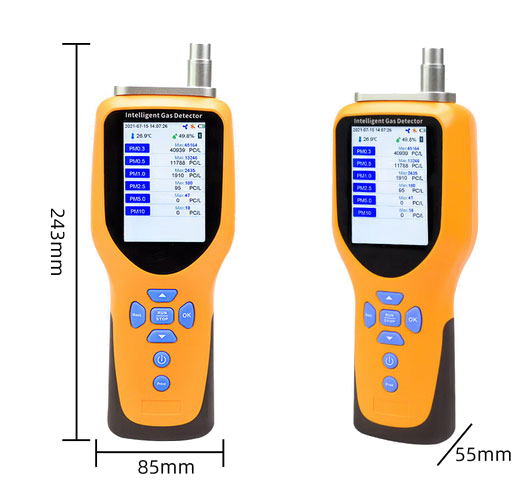

Handheld dust particle counter dimension

Features

The handheld dust particle counter has two measurement modes: real-time detection and timing detection mode.
The laser dust particle counter probe has high sensitivity, fast response, and accurate measurement.
The sound and light alarm function can set the alarm value of the target gas.
Data storage can be set up to 100,000 groups, real-time storage/timing storage.
4000mA rechargeable battery, super long standby time.

Details

Handheld dust particle counter dimension

Applications

Portable particle counter applications

Tips: What is a dust particle counter?

The dust particle counter is an instrument used to detect the number of dust particles and their distribution per unit volume in a clean environment. CCHN dust particle counter has the characteristics of fast detection speed and high accuracy, which is widely used in drug testing laboratories, epidemic prevention stations, blood centers, pharmaceutical workshops, precision instrument processing, quality control offices, etc.
