1 HP (0.75 kW) Magnetic Drive Pump

Affordable price 1 hp magnetic drive centrifugal pump with casing material. Magnetic drive pump able to handle many types of chemical and temperature up to 90 ℃. 50Hz and 60Hz are the frequency of magnetic pump. Mag drive water pump is widely used in chemical, pharmaceutical, and food industry.

SKU: CCHN-MDP-1HP

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1 hp (0.75 kW) magnetic drive pump is the use of magnets can attract ferromagnetic material and magnetic force between magnets or magnetic fields, can be no contact through the non-magnetic conductor for power transmission.

Features:

ETFE (carbon-fiber reinforced) wetted-end material.
Able to handle many types of chemical and temperature up to 90 ℃.
Available in flange connections.

Specification:

Model	CCHN-351PW-F
Specific Gravity	1.2
Rated Voltage	3-phase 380V (please contact us for other voltages)
Frequency	50Hz, 60Hz
Pump performance at specific point (M-L/min)	50Hz	15-100
	60Hz	17-80
Motor Output	1 HP (0.75 kW)
Flange Size	25 mm (outlet); 25 mm (inlet)
Casing Material	ETFE
Shaft Material	ceramic
Bearing Material	carbon
O-ring Material	FKM
Interface Mode	thread, flange
Net Weight	25kg

Structure:

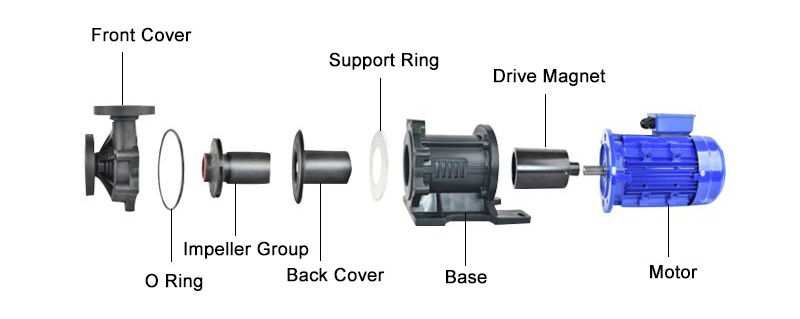

PW-F magnetic drive pump structure

Dimension (Unit: mm)

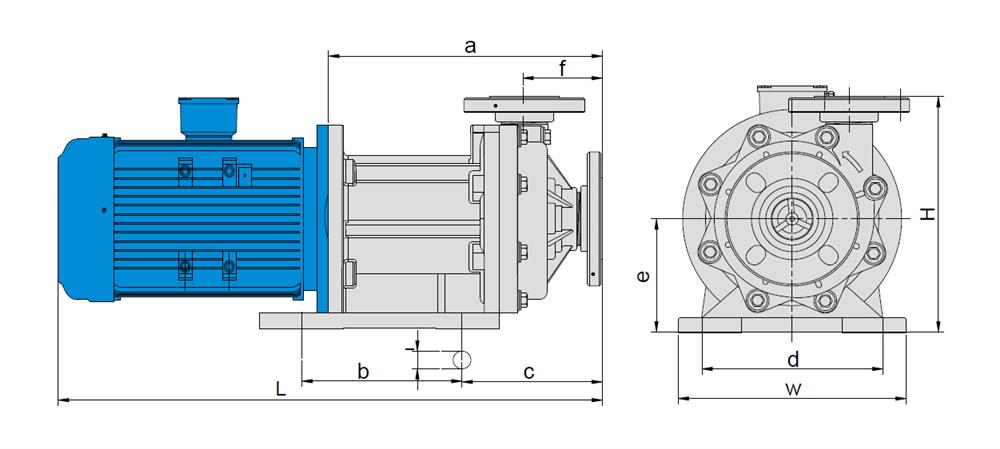

PW-F magnetic drive pump dimension

Model	W	H	L	a	b	c	d	e	f
351PW-F	160	257	470	240	130	170	130	115	88

Tips: What is Magnetic Drive Pump?

Mag drive pump is seal-less pump that use the technology of a drive magnet and inner magnet connected to an impeller to move fluid through the pump. The drive magnet and inner magnet are separated by a rear casing or housing, creating a seal-less containment. Instead of a mechanical seal, the pump uses a magnetic coupling to transmit the power from the motor to the impeller. This allows the pump to be completely sealed, which prevents leaks and contamination of the fluid being pumped.
