0.3 HP (0.25 kW) Magnetic Drive Pump

The 0.3 hp (0.25 kW) magnetic drive pump can realize the contactless synchronous transmission of power and transform the dynamic seal structure which is easy to leak into the static seal structure which is zero leakage.

Features:

• The motor is of solid TEFC construction and is painted with 2 parts epoxy paint.
• Offering ceramic bearing and ceramic spindle as standard wearing parts to achieve long life expectancy.
• Standard connections available in hose, threads or union type.

Specification:

Dimension (Unit: mm)

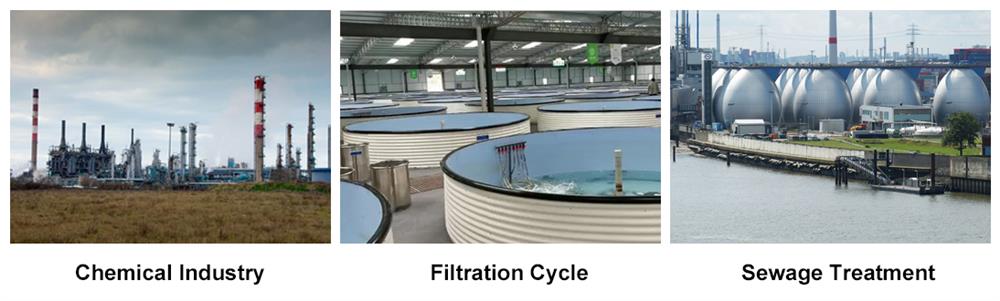

Application:

Tips: How to Clean Magnetic Drive Pump?

• Shut off the pump. Turn off the power supply to the pump to prevent any accidental activation during the cleaning process.
• Disassemble the pump. Remove the pump's casing and impeller.
• Clean the pump parts. Clean the pump parts with a suitable cleaning solution. Use a soft-bristled brush or a cloth to remove any dirt, debris, or other contaminants.
• Rinse the pump parts. Rinse the pump parts with clean water to remove any remaining cleaning solution. Make sure to rinse thoroughly to ensure no residue is left behind.
• Dry the pump parts. Dry the pump parts with a clean cloth or compressed air.
• Reassemble the pump. Reassemble the pump in the reverse order of disassembly.
