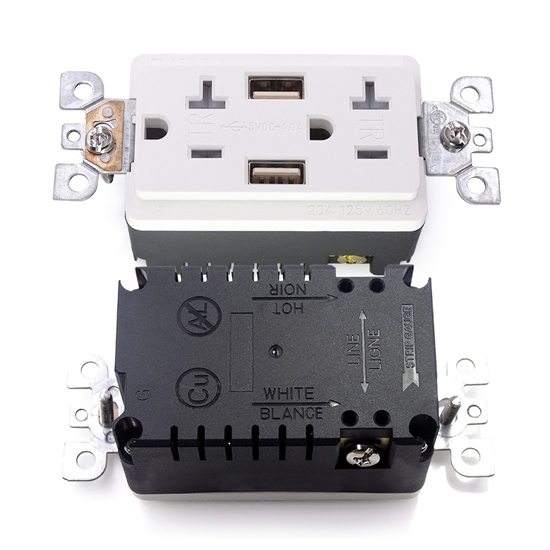

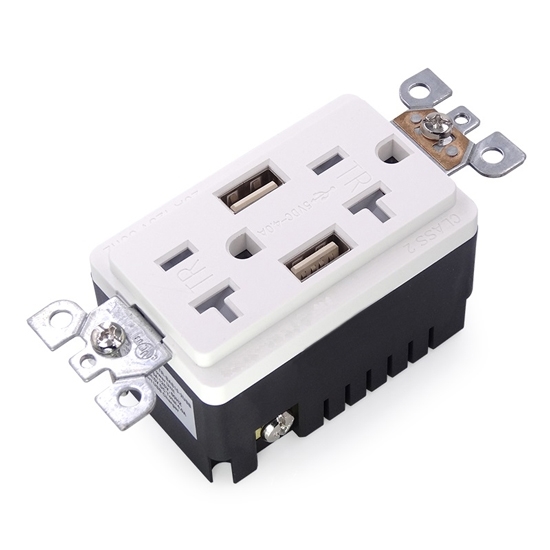

20 amp USB Wall Outlet, Electrical Receptacle

CCHN low price USB wall outlet is built to meet every need in commercial, industrial, household, institutional settings. This USB socket has safe lock function, the reset button will not engage if protection has been compromised.

Feature

• Good heat dissipation.
• Design of bottom grid, good cooling.
• Super high impact resistance and thermal stability.
• Cover pans are made of high quality polycarbonate.
• Chemical corrosion resistance.
• Fingerprint-resistant zinc plated mounting brackets.

Specification

• Model: CCHN-B2USB-20
• Rated Working Current: 20 amp
• Rated Working Voltage: 125V
• Power Frequency: 60Hz
• USB Voltage and Current: 5VDC 4A/ 2.1A
• Wire Specifications: #14-@10AWG
• USB Compatible Products: USB1.0/2.0/3.0, Includes Apple Products
• Electric Strength: Pressure Resistance 1500V 50Hz
• Duration: 1 Min
• Working Temperature: -20℃ ~ 60℃
• Insulation Resistance: ＞50MΩ (DC500V)
• Short-Circuit Current: 10kA
• Meet the Standard: UL498CSA-C22.2 NO.42, Housing Material Flame Retardant Grades UL94-V2

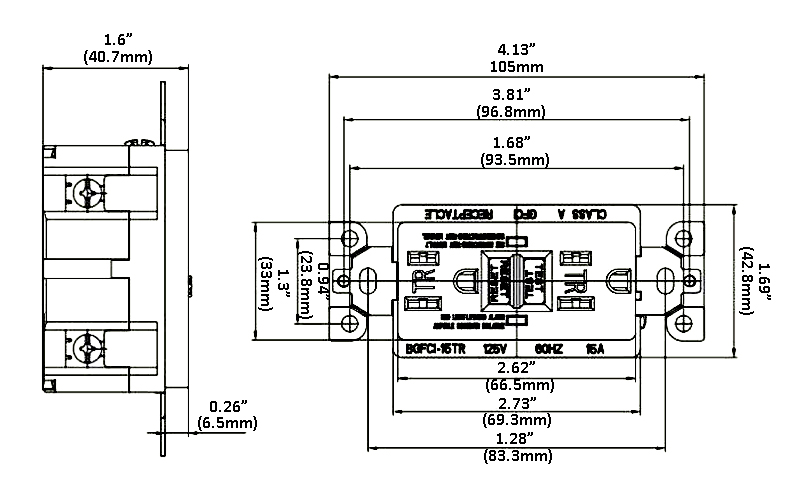

Dimensions

Tips: How to choose a right USB wall outlet?

• Choose flame retardant insulating materials with high temperature resistance, moisture resistance and excellent impact resistance.
• Select an USB receptacle which has the protection door with anti-unipolar insertion, so that the plug and socket can be connected to the power supply, which fundamentally prevents the safety accident caused by the leakage of the plug.
