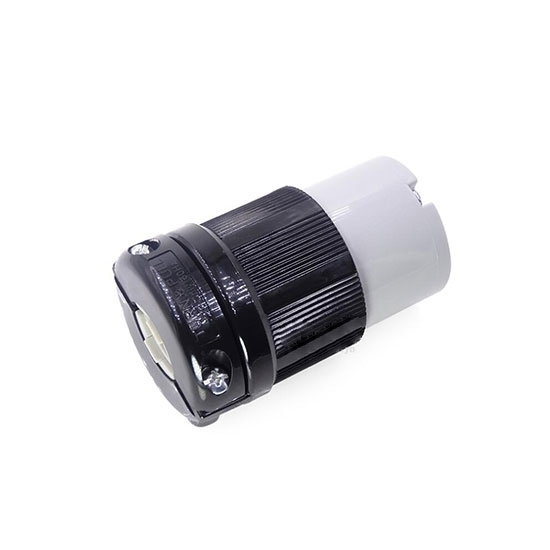

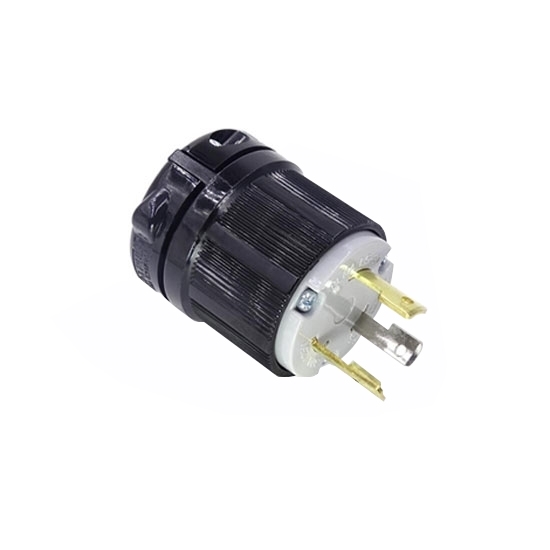

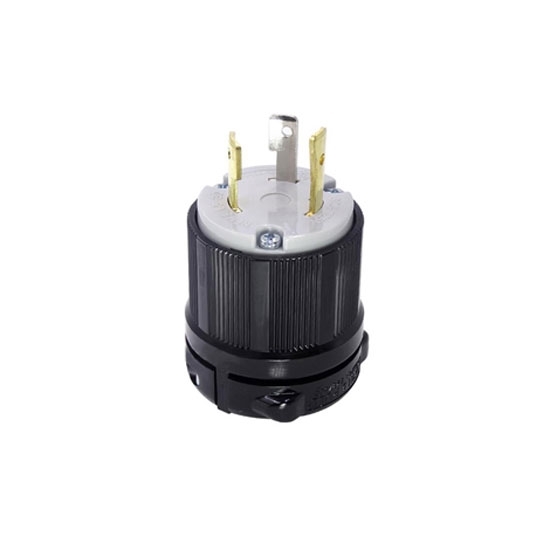

30A 125V Locking Plug, 2 Pole 3 Wire

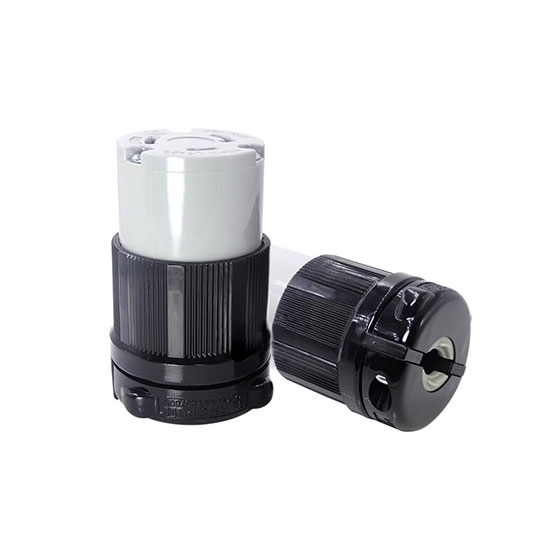

Electrical locking plug with 2 pole and 3 wire, 30A rated current, 125 rated current, male plug and female plug for you. This twist locking plug comes with nylon and full copper, and the dielectric voltage withstand is 18000V minimum.

SKU: CCHN-LP5-30

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification:

Model	CCHN-LP5-30
Plug Type	NEMA L5-30 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	125V
Rated Current	30 Amp
Wiring & Connecting	2 Pole 3 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Tips: What are the benefits of locking plugs?

Our locking plugs feature high impact and heat resistance, providing maximum safety and longer life span.
Nylon material shell provides a secure grip and corrosion resistance.

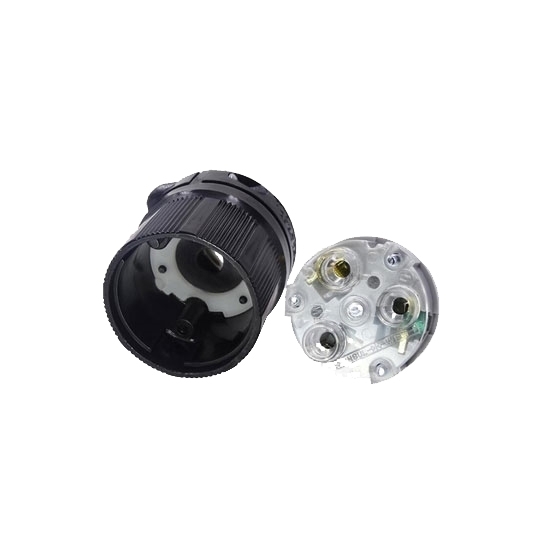

They have self-threading screws designed for secure assembly.
