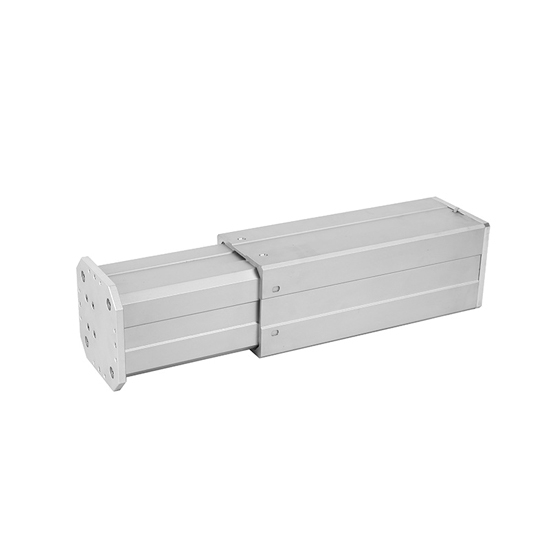

Heavy Duty Industrial Lifting Column, DC 24V/29V, 500N-10000N

The heavy-duty industrial lifting column has the highest IPX6 protection level, the relative humidity range is 30%~75%, and the operating temperature range is 10℃ to 40℃. It is widely used in various industries, medical, auto parts and other fields.

Features

• The industrial lifting column uses high-quality raw materials and mature production technology.
• The motor adopts metal design inside and outside, and the noise is small during operation, which is suitable for working environments with high requirements for noise.
• It is equipped with a high-speed servo motor, stable operation, fast response, and suitable for a variety of industrial applications.
• Heavy-duty industrial lifting columns can be customized according to customer needs. Please contact us if you have any needs.

Specification

• Model: CCHN-ZT21LC-Z12
• Protection: Class Ⅲ
• Protection type: Max.IPX6
• Relative humidity: 30%~75%
• Ambient temperature: 10~40℃
• Static load: DC 24V/29v
• Duty cycle: 2/18 min.or 10%, Max. 5 switiching cycles per minute
• Load: Push/Pull: 500N~10000N/500N~6000N
• Fitting dimension: 200mm~2400mm
• Stroke: 50mm~2000mm
• Color: Light grey RAL Aluminium
• Adjustment speed: 5~100mm/sec
• Limit switch: Limit switch with micro switch

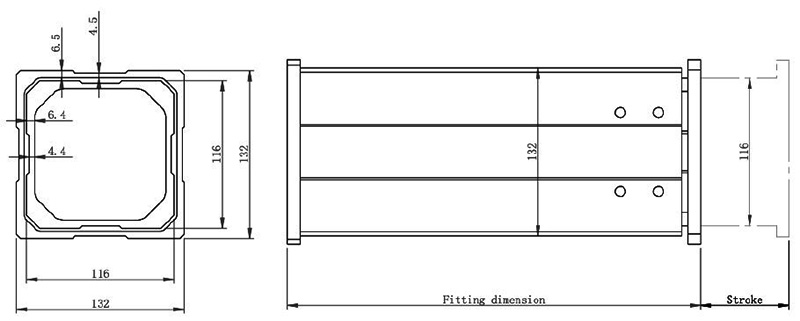

Dimension (mm)

Note: The specific size can be customized according to customer needs. Please contact us if you need it.

Applications

Tips: How to maintain heavy-duty industrial lifting columns?

• Wipe the exterior with a soft cloth regularly to avoid dust and oil accumulation and prevent moisture from entering electrical components.
• Check power cords and electrical connections regularly to ensure they are not loose or damaged.
• Lubricate mechanical parts regularly to reduce friction and avoid excessive use of grease.
• Test the lifting function of the lifting column to ensure normal travel and push-pull force to avoid jamming.
• Ensure that the ambient temperature and humidity are within the appropriate range to avoid extreme conditions affecting performance.
• Ensure that the load does not exceed the rated range to avoid overloading.
• Follow intermittent working cycles to avoid long-term continuous operation.
