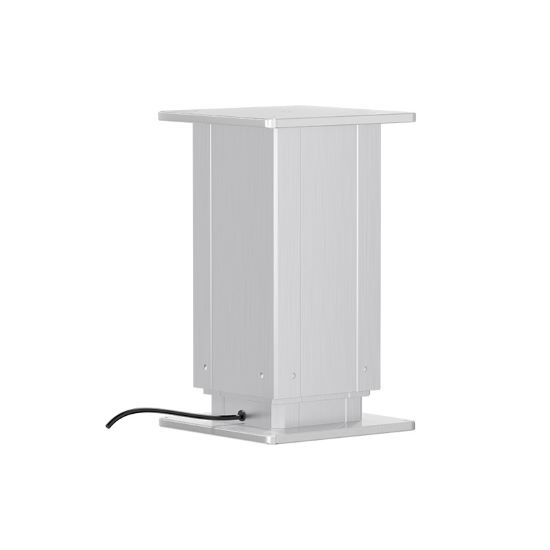

3-stage Electric Lifting Column, 24V, 80~120kg

3-stage Electric Lifting Column, 24V, 80~120kg

3-stage electric lifting column with reasonable price for sale online. Electric lifting column with rated voltage 24VDC, load capacity of 80~120kg. Telescopic lifting columns are widely used in many occasions such as urban traffic, military and important state organs, highways, toll stations, airports, banks, parking lots and so on.

SKU: CCHN-LC-HTA3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Factory priced lifting column with load capacity of 80~120kg, no-load lifting speed of 4~8mm/s, working temperature of -15℃~+65℃, and low noise decibel of 30~40dB. The small column lift has the advantages of fast speed, low noise, rapid control, quiet and reliable, and economical benefits.

Specification

Model: CCHN-SRALEA/B
Rated voltage: 24VDC
Tube body: 3 stage
Maximum load capacity: 80kg/120kg
No-load lifting speed: 4~8mm/s
Stroke:275~430mm
Limit switch: Built-in limit (upper and lower ends)
Color: Silver White
Working temperature: -15°C ~ +65°C
Working frequency: 10%Work System, Maximum 1 Hour Continuous Working
Material: Aluminum alloy for tube body, iron for upper and lower ends (thickness 5MM)
Certificate: CE

Dimension (mm)

dimension of three stage electric lifting column

Lifting Column Stroke Selection

Initial height	265mm	315mm	360mm	275mm	325mm	370mm
Final height	540mm	690mm	790mm	550mm	700mm	800mm
Stroke range	275mm	375mm	430mm	270mm	475mm	430mm
Maximum load capacity	80kg	80kg	120kg	80kg	80kg	120kg
No-load lifting speed	4mm/s	8mm/s	4mm/s	4mm/s	8mm/s	4mm/s

Tips: What is Electric Lifting Column?

The electric lifting column is a device that controls the passage of vehicles, and can be used in conjunction with the gate control system, or can be used alone. It is mainly designed and developed for sensitive areas to prevent unauthorized vehicles from forcibly intruding, and has high practicability, reliability and safety. It is composed of bottom base, lifting blocking barricade column, power transmission device, control and other parts. According to different needs, it has a variety of configuration options to choose from, which can meet various functional requirements.
