Solar Tracker Linear Actuator, 12V/24V, 20000N, 250mm Stroke

20000N strong heavy load linear actuator with 250mm durable stroke, max. static load to 40000N, no load speed is 2.8mm/s, 12V/ 24V/ 36V/ 48V DC input voltage for optional, IP65 protection, is designed for industrial applications, especially be used for solar tracking system & heliostat.

SKU: CCHN-LACTU-20000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Powerful linear actuator for solar trcking system, max. load capacity is 20000N, DC 12 volt, 24 volt, 36 volt, 48 volt are available, it has self-lock function, easy installation, strong stability, free maintenance and low power consumption.

Parameter List

Model		CCHN-U10
Voltage		12V DC, 24V DC, 36V DC, 48V DC (Optional)
Max. Load		20000N
Max. Static Load		40000N
No-Load Speed		2.8mm/s
Full-Load Speed		2mm/s
Rated Speed		1800RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Continuous Current		8A
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-25℃ ~ +65℃
Position Feedback		Hall sensor
Noise		<60db
Front-Rear End Dimension		Hole Φ30mm
Installation Dimension		Stroke + 310mm
Connector		Tinned leads
Length of Cable		1m
Weight		15kg
Applications		Solar PV industry such as solar tracker, and heavy load industry application

Load and Speed Selection

(Note: The current at 12V is as roughly 2 times as that at 24V)

Code	Rated Load (N)		Rated Current (A)	Rated Speed (mm/s)
Code	Push	Pull	Rated Current (A)	No Load (24V DC)	Full Load (24V DC)
A	20000	20000	7	2.8	2
B	15000	15000	6	4.2	2.5
C	12000	12000	5	4.6	2.8
D	10000	10000	5	10	6

Stroke and Size Selection

Stroke±3 (mm), Mounting Dimension±3 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	360	410	460	510	560	610	660	710	760

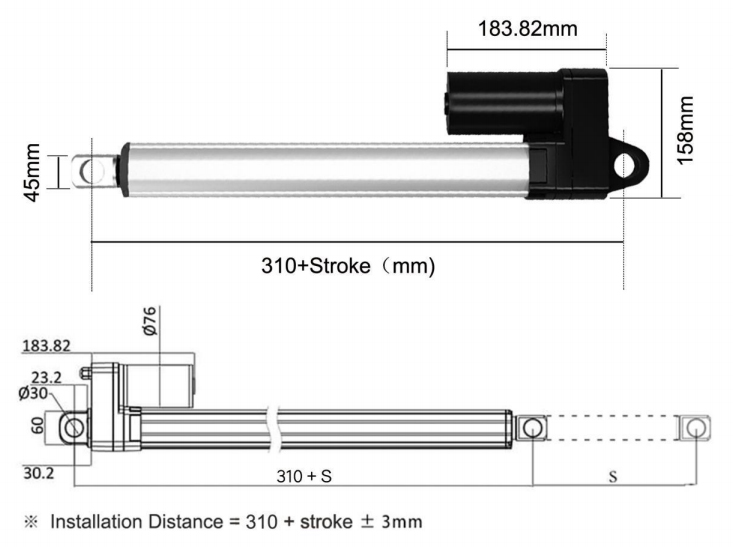

Standard Dimension (mm)
