Solar Tracker Linear Actuator, 12V/24V, 8000N, 400mm Stroke

12V, 24V DC heavy duty linear actuator for solar tracker system, 8000N maximum load capacity and the max. static load up to 20000N, default 400mm stroke, other strokes are customizable. IP65 protection grade, duty cycle of 10%, more reliable in the long term.

SKU: CCHN-LACTU-8000

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

8000N load solar tracker linear actuator is small and compact unit, 12 volt / 24 volt DC voltage, 300mm, 400mm 450mm...strokes customized. With strong stability, strong structural design, waterproof and dustproof, suitable for harsh environment.

Parameter List

Model		CCHN-U4
Voltage		12V DC, 24V DC, 36V DC, 48V DC (Optional)
Max. Load		8000N
Max. Static Load		20000N
No-Load Speed		2.7mm/s
Full-Load Speed		1-1.5mm/s
Power		77W
Rated Speed		2600RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Continuous Current		2.2-3.2A
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-25℃ ~ +65℃
Position Feedback		Reed sensor
Noise		<60db
Front-Rear End Dimension		Rod type Φ16mm
Installation Dimension		Stroke + 350mm
Connector		Tinned leads
Length of Cable		1m
Weight		11kg
Applications		Small and medium sized solar tracker system

Load and Speed Selection

(Note: The current at 12V is as roughly 2 times as that at 24V)

Code	Rated Load (N)		Rated Current (A)	Rated Speed (mm/s)
Code	Push	Pull	Rated Current (A)	No Load (32V DC)	Full Load (24V DC)
A	8000	8000	3.2	2.7	1
B	6000	6000	2.2	2.7	1.5

Stroke and Size Selection

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	400	450	500	550	600	650	700	750	800

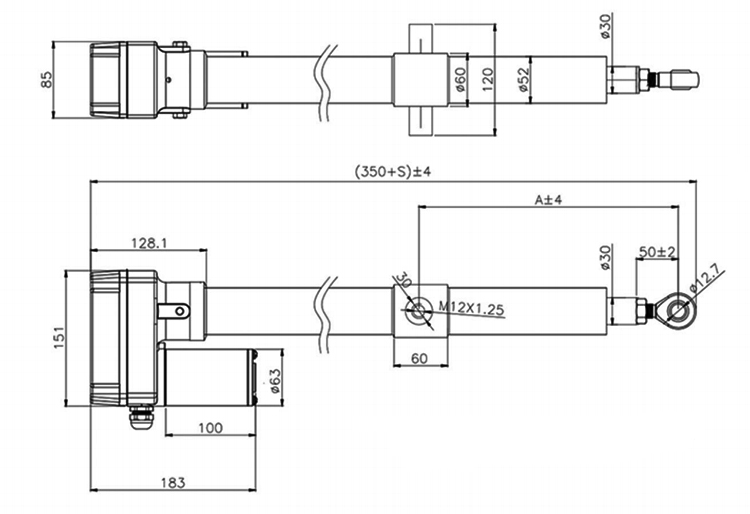

Standard Dimension (mm)
