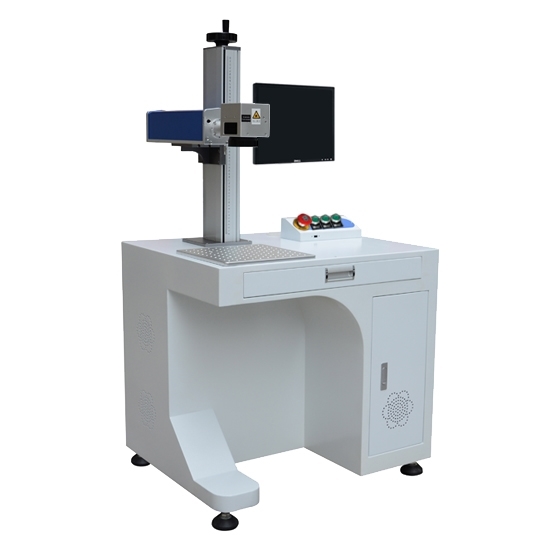

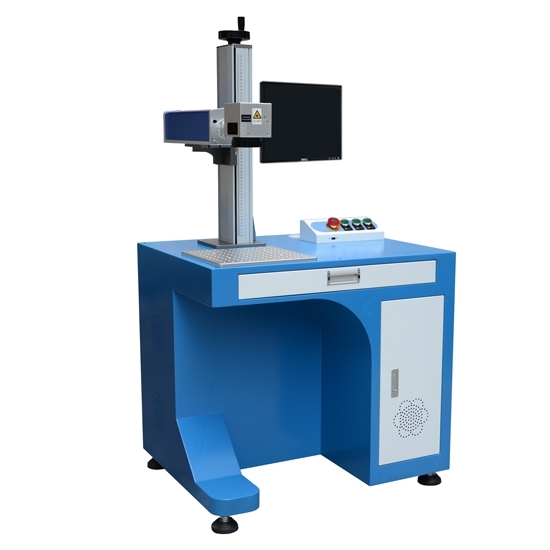

20w Economic Fiber Laser Marking Machine

Fiber laser marking system features:

• Desktop type is good for industrial factory.
• Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
• 100,000+ hours of laser life, reducing costs and production downtime.
• 110mm² mark field (other sizes available).
• No consumables and minimal maintenance help reduce operating costs.
• Air-cooled 10W-20W models.
• Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.

Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

Tips: The difference between fiber laser marking machine and CO2 laser marking machine
The difference of the applicable material:

1. Fiber laser marking machine: metal and several non-metallic materials, high hardness alloy, oxide, electroplate, coating film, ABS, epoxy resin, printing ink, engineering plastic and so on.
2. CO2 laser marking machine: suitable for paper, leather, cloth, polymethyl methacrylate, epoxy resin, acrylic, wool product, plastic, ceramic, crystal, jade, bamboo and wood product.

The difference of the performance parameters and characteristics:

1. Fiber laser marking machine: with high electro-optical conversion efficiency, the electric consumption is no more than 500W for the whole machine, which is 1/10 of the lamp pumping laser marking machine, so that it will save the energy greatly. It has high processing speed, which is 2-3 times of the traditional marking machine. The operation life of its laser lasts for 100000 hours.
2. CO2 laser marking machine: with a large laser power, it is suitable for several non-metallic products to be engraved and cut. The operation life of its laser lasts for 20000-30000 hours.
