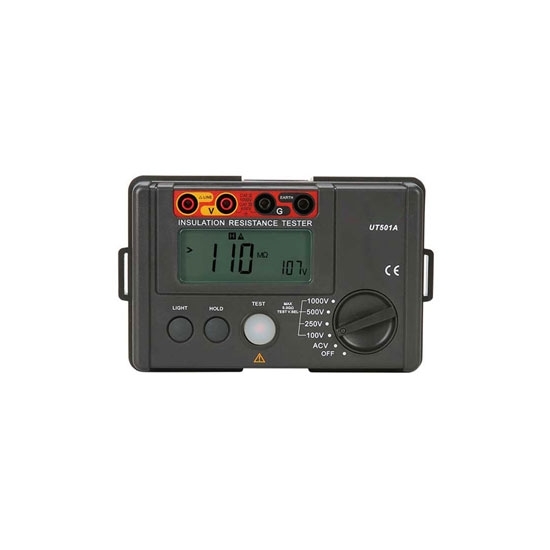

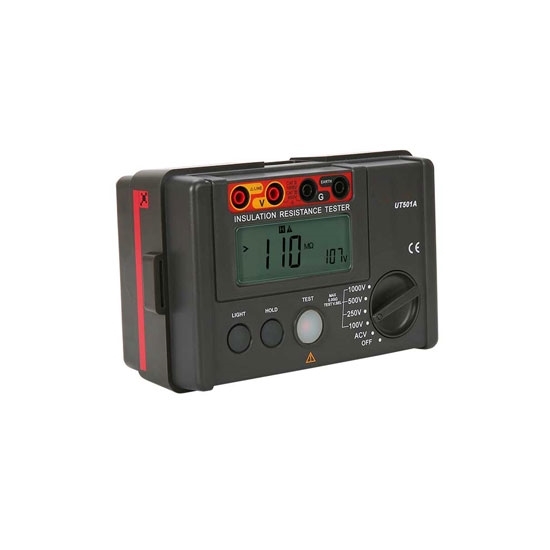

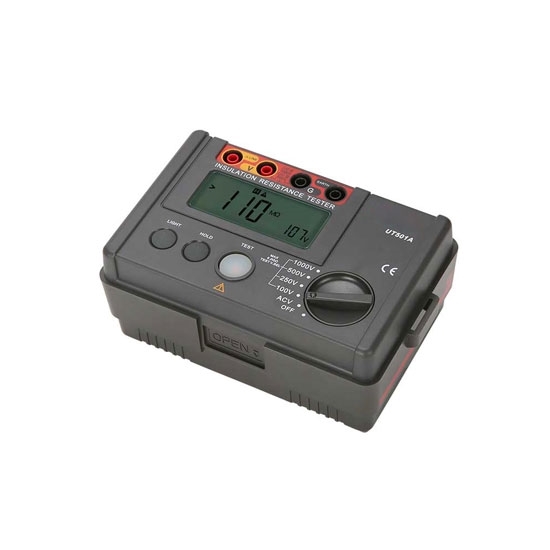

Insulation Resistance Tester, 100V/250V/500V/1000V

Insulation Resistance Tester, 100V/250V/500V/1000V

Low price megger insulation tester, offers test voltages of 100V/250V/500V/1000V, insulation resistance test range from 0.00 MΩ to 5.0 GΩ, also support AC voltage measurement of 30V~750V, high accuracy and stable performance, with easy-to-read LCD display, ideal for testing the electrical equipment such as transformers, motors, cables, etc.

SKU: CCHN-IRT-UT501A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The insulation resistance tester or megger/megohmmeter, offers insulation resistance test up to 5.0G ohm and test voltage of 100, 250, 500 and 1000 volts, and it is an ideal tool for electric maintenance, testing and inspection, used for insulation resistance measurement in various kinds of electrical equipment such as transformer, electric motors, cables, switches, electrical appliance and so on.

Specification

Model	CCHN-IRT-UT501A
Insulation Resistance (Ω)	Test voltage/accuracy	100V/250V/500V/1000V		0% ~ 10%
	Measurement range/accuracy	100V	0.00 MΩ ~ 100 MΩ	±(3%+5)
		250V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 5.0 GΩ	±(5%+5)
		500V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 5.0 GΩ	±(5%+5)
		1000V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 5.0 GΩ	±(5%+5)
	Load current	100V (R=100kΩ) 1mA		0% ~ 10%
		250V (R=250kΩ) 1mA		0% ~ 10%
		500V (R=500kΩ) 1mA		0% ~ 10%
		1000V (R=1MΩ) 1mA		0% ~ 10%
	Short-circuit current			<2mA
AC Voltage (V)	Test range/accuracy	30V ~ 750V (50Hz/60Hz)		±(2%+3)
Features	Display	1999 count
	Auto ranging	Yes
	Low battery indication	Yes
	LCD backlight	Yes
	Light alarm	Yes
	Buzzer alarm	Yes
	High voltage indication	Yes
	Over load indication	Yes
	Auto discharge	Yes
	Test voltage secondary display	Yes
	10 MΩ internal resistance test	Yes
General	Power supply	1.5V battery (LR6) x 6
	Display size	70.6mm x 34mm
	Working condition	0℃ ~ 35℃, ≤75%RH
	Altitude	≤2000m
	Storage condition	-20℃ ~ 60℃, ≤80%RH
	Product weight	500g
	Product size	150mm x 100mm x 71mm
	Standard accessories *	Batteries, test leads, alligator clips, gallus

Note: * Batteries are Not Included for air shippment.

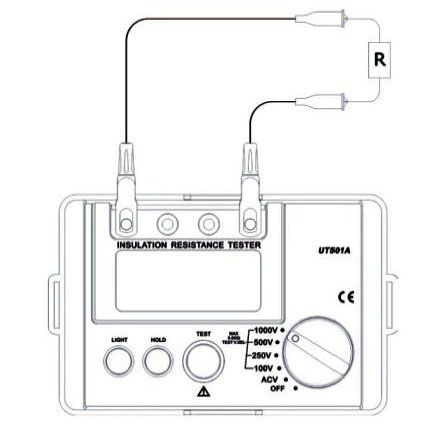

Insulation Resistance Test Wiring Diagram

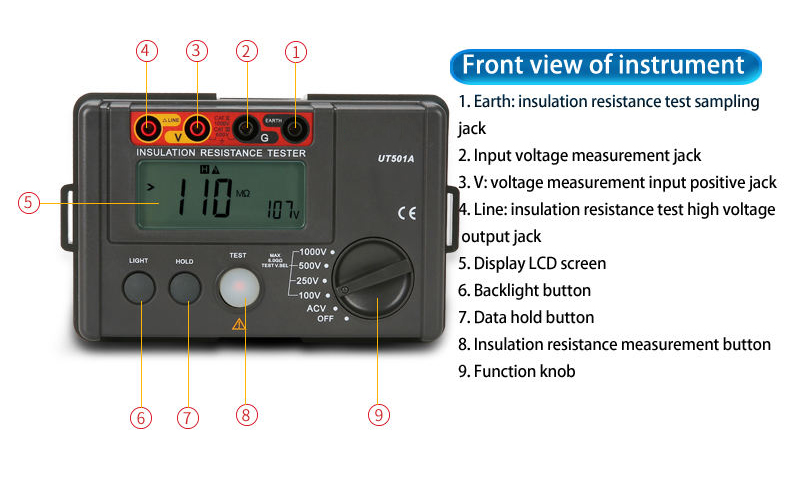

Details

Tips: What is an Insulation Resistance Tester?

Insulation Resistance tester, also known as Megohmmeter or Megger, is widely used to measure the insulation resistance of electrical devices such as generators, motors, power transformers, cables, household appliances and so on. The insulation performance of the electrical equipment is one of the important indicators to evaluate the insulation quality, it is reflected through insulation resistance. The megger insulation tester plays this role to indicate changes in electrical insulation resistance over months or years. Large changes in insulation resistance may indicate a potential failure. Therefore, it is necessary to calibrate the Megohmmeter periodically to ensure that the meter itself does not change over time.

Generally, the insulation resistance to be tested refers to the insulation resistance between the live part and the exposed non-live metal part (shell). According to different products, apply a high-voltage direct current, such as 100V, 250V, 500V, 1000V, etc., and specify a minimum insulation resistance value. Some standards express that the insulation resistance is not less than 1 m Ω for each kV voltage, etc.
