Handheld Non-contact High Temperature Digital Infrared Thermometer

Handheld Non-contact High Temperature Digital Infrared Thermometer

Low price industrial non-contact infrared thermometer / IR temperature gun for high temperature measurement has optinal suface temperature measuring range of -50℃~1150℃, -18℃~1150℃, -18℃~1350℃, 200℃~1650℃ or -30℃~1650℃, distance to spot ratio up to 20:1 or 50:1, with multi-functions including display Min/Max/Avg/Dif temperature, high/low temperature alarm, backlit display etc.

SKU: CCHN-ITHM-02

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Handheld non-touch infrared thermometers / IR temperature guns are suitable for accurate and rapid measurement of surface temperature of various objects which are high-temperature, toxic or difficult-to-contact. It features fast response time, high precision, contactless, easy to use, portable etc. It is widely used in high temperature fields such as chemical industry, metallurgy and forging.

Note: These industrial thermometers are NOT suitable for human and animal temperature measurements.

Specification

Model	CCHN-GM1150	CCHN-GM1150A	CCHN-GM1350	CCHN-GM1650	CCHN-GM1651
Temperature Range	-50℃~1150℃ (-58℉~2102℉)	-18℃~1150℃ (0℉~2102℉)	-18℃~1350℃ (0℉~2462℉)	200℃~1650℃ (392℉~3002℉)	-30℃~1650℃ (-22℉~3002℉)
Accuracy	±1.5℃ or ±1.5% of reading, whichever is greater
Repeatability	±1℃ or ±1% of reading
Distance to Spot Ratio	20:1	50:1	50:1	50:1	50:1
Emissivity	0.1~1.00 adjustable	0.1~1.00 adjustable	0.1~1.00 adjustable	0.1~1.00 adjustable	0.1~1.00 adjustable
Resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
Response Time	1.5s (95%)	500ms (95%)	500ms (95%)	500ms (95%)	0.5s ~ 0.8s (95%)
Wavelength	8-14μm	8-14μm	8-14μm	8-14μm	8-14μm
Functions	MAX/MIN/AVG/DIF reading High/Low Temperature Alarm setup Data Store/Recall function ℃/℉ selection Data Hold function Laser Target Pointer selection Backlight ON/OFF selection Auto Power Shut Off Low Power indication
Operating Temperature	0℃~40℃ (32℉~104℉)
Operating Humidity	10% ~ 90% RH non-condensing
Storage Temperature	-20℃ ~ +60℃ (-4℉~140℉), (without battery)
Power Supply *	9V battery (Not included)
Weight	312g
Dimension	20015560mm

Note: * Batteries are Not Included for air shippment.

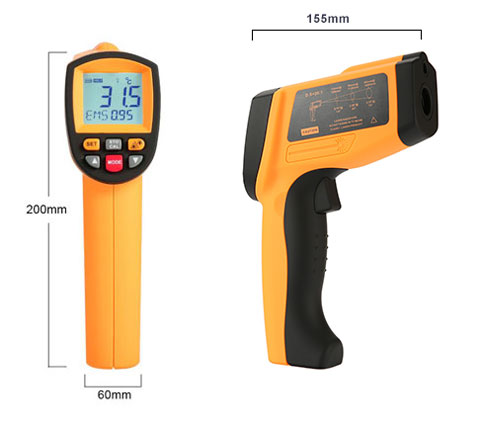

Dimension

Tips: Difference between non-contact infrared thermometers and contact thermometers

Non-contact infrared thermometer:

Non-contact infrared thermometer/temperature gun makes no difference on the measured object.
Contactless IR thermometer can only detect the surface temperature of the object.
With fast response, non-contact infrared thermometer can measure the temperature of objects in motion and transient temperature.
Wide range of measurement, high measurement accuracy and small resolution.
Non-touch infrared thermometer can measure the temperature of a small area.
It can simultaneously measure temperature at points, lines, and surfaces.
Non-contact infrared thermometer not only can measure absolute temperature, but also can measure the relative temperature.

Contact thermometer:

Contact temperature measurement has an effect on the temperature field of the measured object.
It is not suitable for measuring transient temperature and the temperature of objects in motion.
The measuring range of contact thermometer is not wide enough to the one of non-contact IR thermometer, and contact thermometer uses more materials.
It is not suitable for toxic, high pressure and other dangerous occasions.
