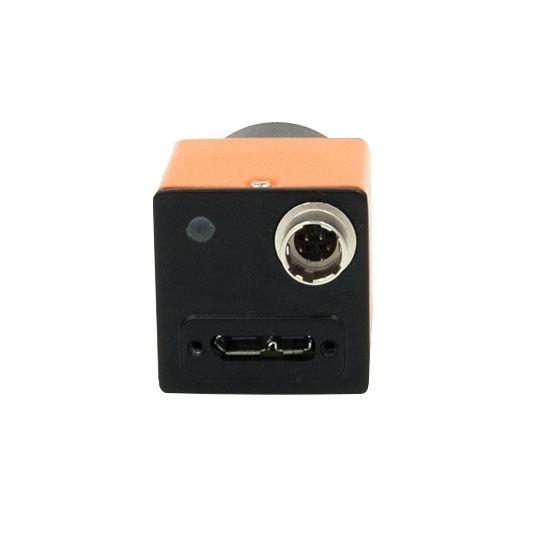

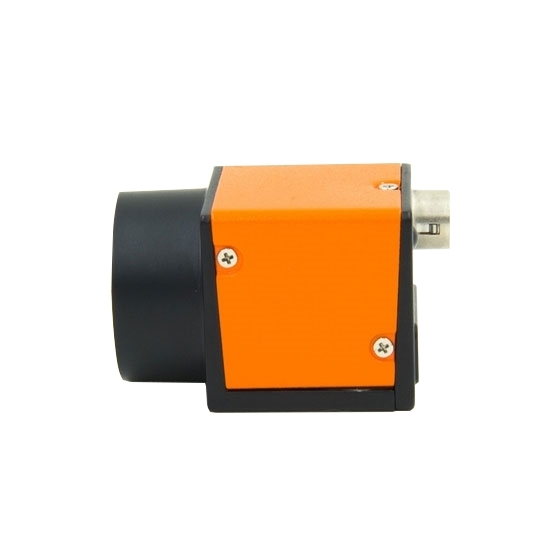

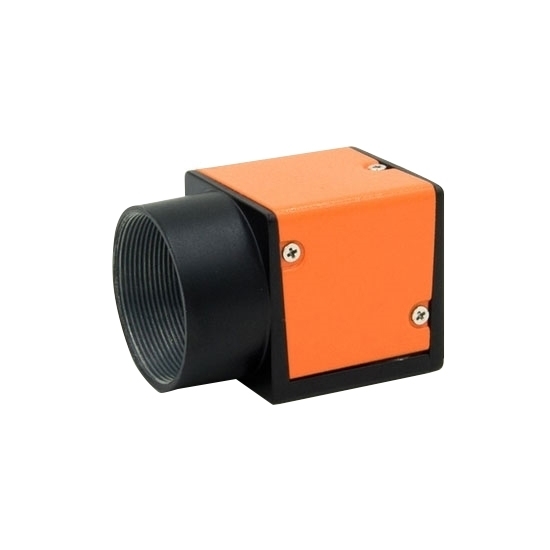

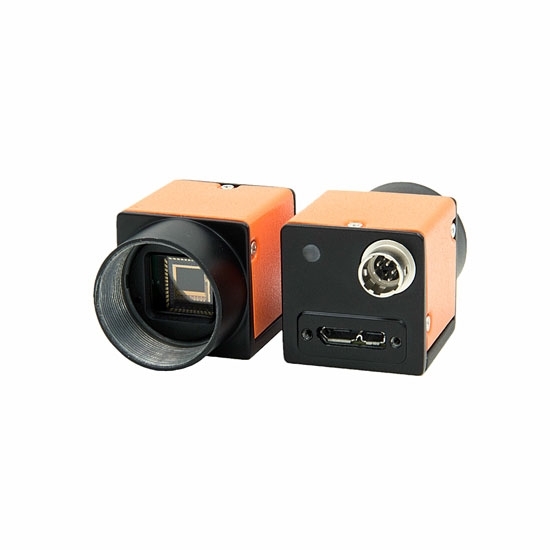

USB 3.0 Industrial Camera, 1.3MP, 1/2" CMOS, Mono/Color

USB 3.0 vision industrial camera is an area scan with 1280x1024 (1.3 Mega Pixel), 1/2" CMOS and 210fps. This industrial camera has a high cost-performance, support Plug-and-Play, and also could work stably in a variety of harsh environment. It is suitable for 3D scanning, motion capture, trajectory analysis and other fields.

Note: For lens products, no returns or exchanges will be accepted unless there is a quality issue.

Features

• Support GenICam ™ and USB3 Vision® Standard
• Compact design, to save installation space
• Rugged industrial housing design
• Built-in temperature, power supply real-time monitoring sensor
• Provide professional SDK for GigE machine vision camera

Specification

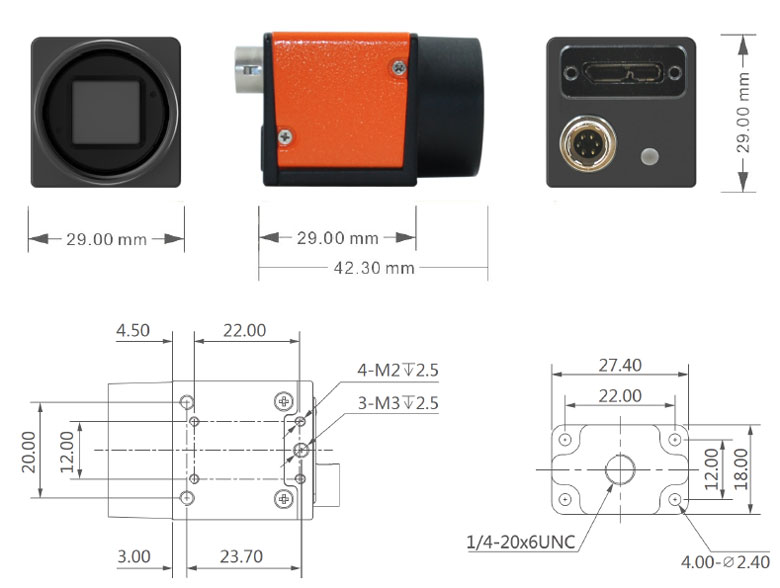

USB 3.0 Industrial Camera Dimensions

Tips: What does the industrial camera need to match with the image grabber?
The industrial camera needs to match well with the image grabber and then works normally. Generally, the following shall be matched:
1. Video signals
Black-and-white analog signal camera has two formats, namely the CCIR and RS170 (EIA). Generally, the image grabber supports the two industrial cameras at the same time.
2. Resolution
Each card only supports a camera within a resolution range.
3. Special functions
If the special functions of an industrial camera need to be applied, confirm whether the card supports the function firstly. For example, if you want several cameras to take photos at a same time, the image grabber must support multichannel; if the camera takes a progressive scanning, the image grabber must support progressive scanning.
4. Interface
Confirm whether the interface between the industrial camera and the grabber is matched, such as the Camera Link, Firewire1394, USB 3.0, and GigE.
