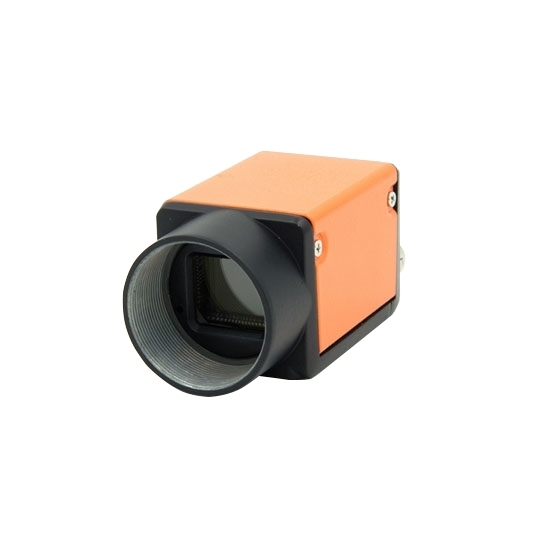

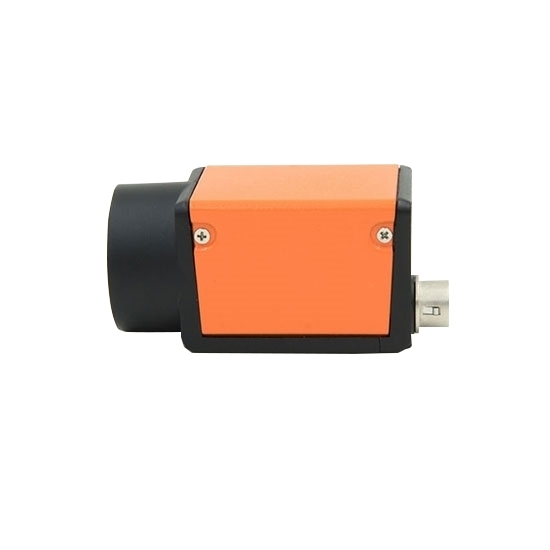

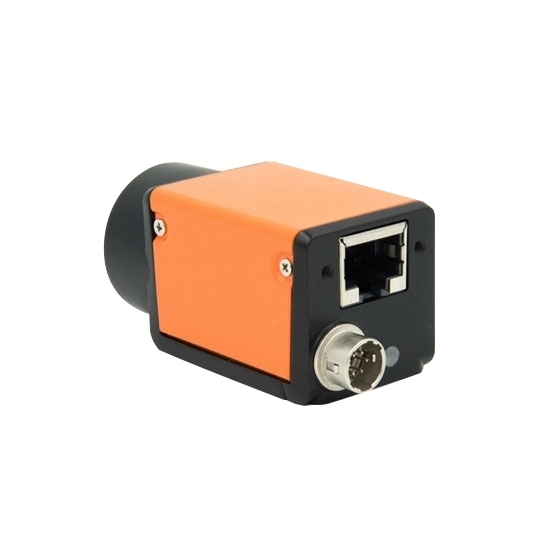

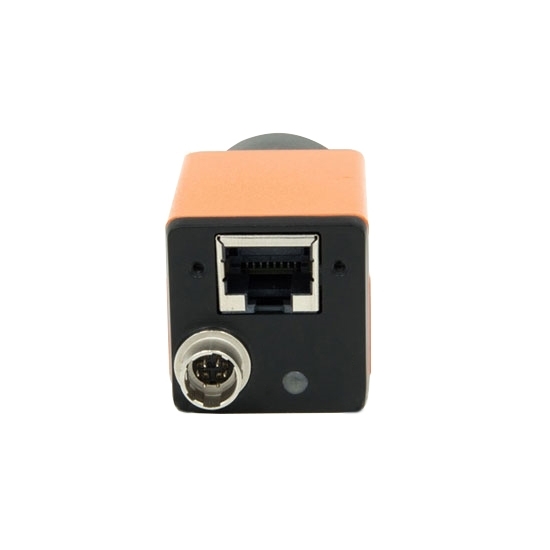

GigE Vision Industrial Camera, 2.3MP, 2/3" CMOS, Mono/Color

2.3MP GigE machine vision camera is a kind of area scan camera, with high resolution of 1920x1200 pixel, 2/3" format, max. frame rate up to 50fps, COMS, using advanced image sensor with global shutter, rugged and compact design, suitable for industrial visual applications.

SKU: CCHN-CAMERA-200050

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

GigE industrial camera and machine vision camera features 1920x1200 (2.3 Mega Pixel) is a best area scan camera to meet various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications, with its high image quality, frame rate and resolution.

Note: For lens products, no returns or exchanges will be accepted unless there is a quality issue.

Features

Support GenICam ™ and GigE Vision® Standard
Compact design, to save installation space
Rugged industrial housing design
Built-in temperature, power supply real-time monitoring sensor
Provide professional SDK for GigE machine vision camera

Specification

Model	2000-50gm	2000-50gc
Resolution	1920x1200 (2.3 Mega Pixel)
Sensor Type	CMOS
Sensor Model	PYTHON 2000
Format	2/3"
Pixel Size	4.8μm x 4.8μm
Maximum Frame Rate	50fps
Bit Depth	8-bit or 10-bit
Mono/Color	Monochrome	Color
Exposure Time	16μs~1s
SNR	>38dB
Dynamic Range	60dB
Shutter Type	Global Shutter
Interface	Gigabit Ethernet (100m Transmission Distance)
Lens Mount	Standard C-Mount
Power Supply	DC 6-24V, PoE
Power Comsumption	Approx. 3.1W@12V DC, Approx. 3.4W@PoE
Hardware Control	I/O input (external trigger), I/O output, Opto-couplers Isolation
Programmable Control	Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction
Opearting System	Support Windows XP/7/8/10 Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free)
Operating Tempearture	-30~+80℃
Storage Temperature	-30℃~+80℃
Mass	88g
Dimension	42x29x29mm

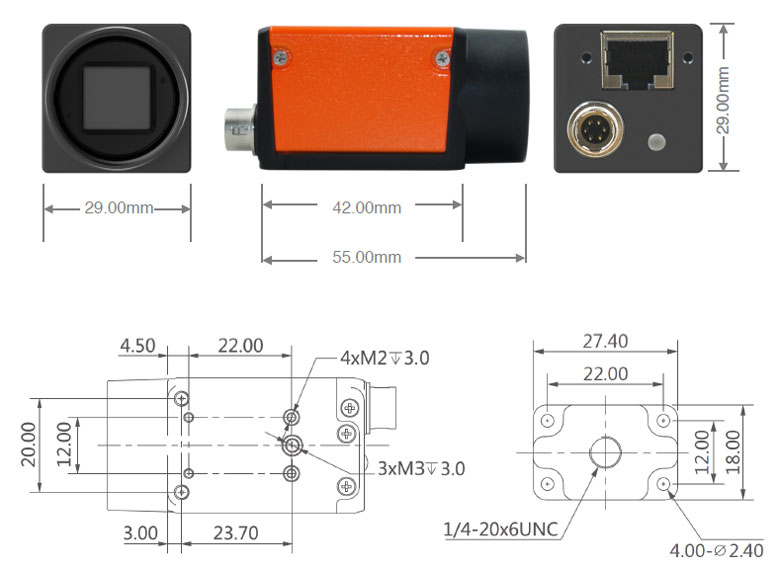

GigE Camera Dimensions

GigE vision industrial camera dimensions

Tips: Classification of Industrial Cameras
Anything has its classification standard, and industrial camera is no exception.
According to the type of chip, the industrial camera can be divided into CCD camera and CMOS camera.
According to the structural characteristics of the sensor, the industrial camera can be divided into line scan camera and area scan camera.
According to the scanning method, the industrial camera can be divided into interlaced scanning camera and progressive scan camera.
According to the resolution, the industrial camera can be divided into ordinary resolution camera and high resolution camera.
According to the mode of output signal, the industrial camera can be divided into analog camera and digital camera.
According to the output color, the industrial camera can be divided into monochromatic (black-white) camera and color camera.
According to the speed of output signal, the industrial camera can be divided into ordinary speed camera and HV camera.
According to the range of response frequency, the industrial camera can be divided into visible light (ordinary) camera, infrared camera and ultraviolet camera.
