15hp (11kW) Variable Speed Motor, 3 Phase, 2P/ 4P/ 6P

Variable speed motor at affordable price, which with rated power 15hp, rated voltage 380V (380V~480V can be customized), fan voltage 380V, rated torque, B3 mounting type. 3 phase variable speed motor is widely used in places that require energy-saving continuous operation and frequent work, such as fans, air compressors, injection molding machines, water pumps, vacuum pumps, etc.

SKU: CCHN-VSM-160

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap variable speed electric motor for sale, 2P/ 4P/ 6P for selection. Adjustable speed electric motor with rated current 21.4A/ 23A/ 24.5A, constant power frequency conversion range 50-60Hz/ 50-100Hz.

Specification

Model	CCHN-VSM-160M1	CCHN-VSM-160M	CCHN-VSM-160L
Numbers of pole	2P	4P	6P
Rated current	21.4A	23A	24.5A
Rated torque	35Nm	70Nm	105Nm
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2 Tst/ Tn	1.9 Tst/ Tn
Minimum torque/ rated torque	1.2 Tmin/ Tn	1.4 Tmin/ Tn	1.2 Tmin/ Tn
Weight	165kg	175kg	85kg
Constant power frequency conversion range	50-60Hz	50-100Hz
Rated power	15hp (11kW)
Mounting types	B3
Rated voltage	380V (380V-480V can be customized)
Fan voltage	380V
Constant torque frequency conversion range	3-50Hz
Locked-rotor current/ rated current	9 Ist/ In
Maximum torque/ rated torque	2.8 Tmax/ Tn
Certificate	CE
Warranty	12 months

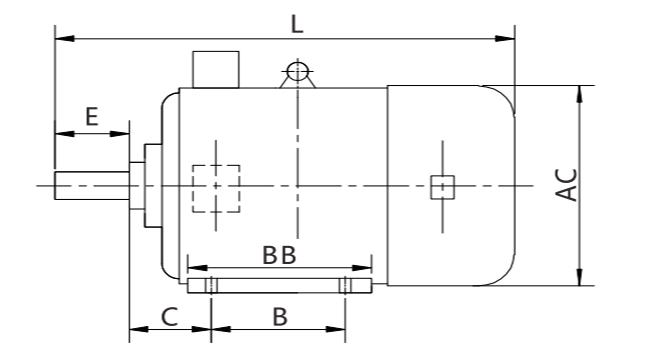

Dimension

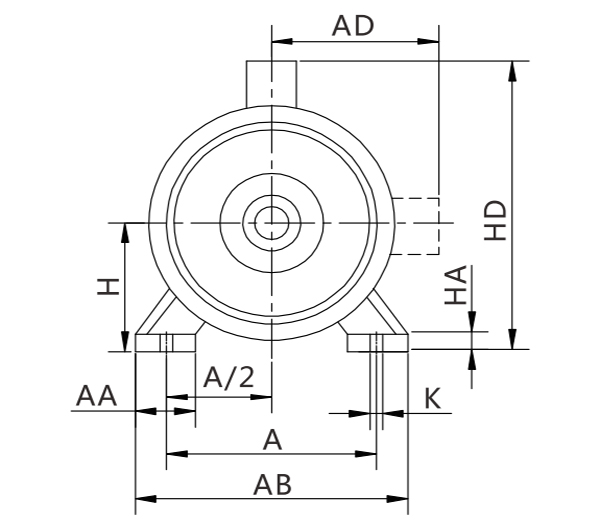

Variable frequency motor of 1hp

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
160M	254	210	108	108	110	12	37	160	15	330	355	265	385	665
160L	254	254	108	108	110	12	37	160	15	330	355	265	385	710

Details

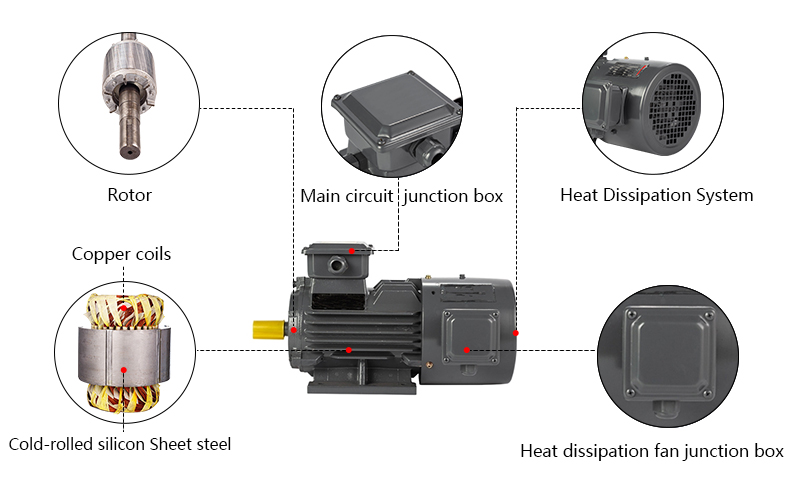

11000W Variable Speed Motor Details

Tips: Advantages of Variable Speed Motor.

1. With start-up function.
2. The electromagnetic design reduces the resistance of the stator and rotor.
3. Adapt to frequent speed changes under different working conditions.
4. Energy saving to a certain extent.
