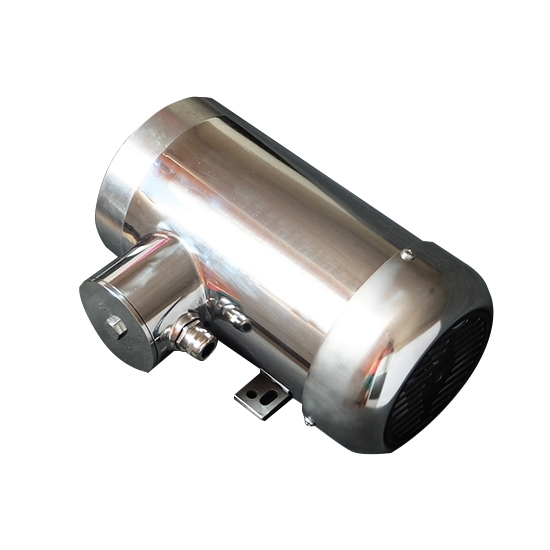

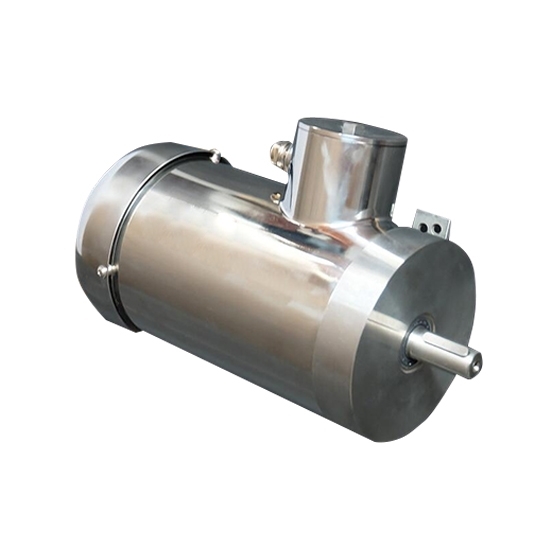

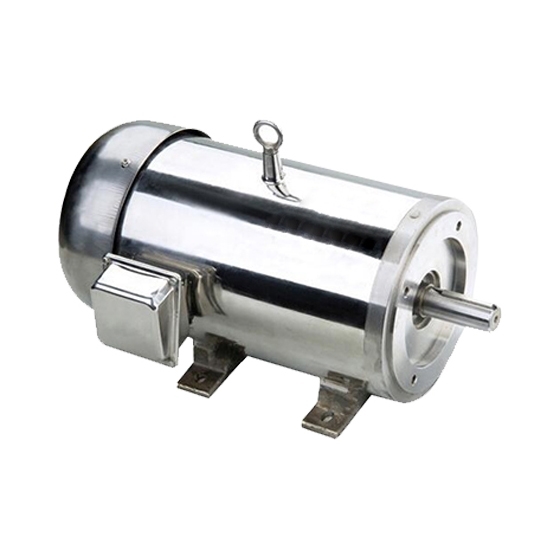

10hp (7.5kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

10hp (7.5kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

Economical price stainless steel motor with rated power 10hp (7.5kW), rated voltage 208V~230V/ 460V, 2P, TEFC cooling method, B3/ B5/ B14 for selection. It is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential.

SKU: CCHN-IEC-132S2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

7.5kW stainless steel electric motors with 3 phase, 50-60Hz frequency, 2950r/ min raged speed. It is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	CCHN-IEC-132S2
Rated power	10hp (7.5kW)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TEFC
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	110kg
Certificate	CE, UL
Warranty	12 months

Dimension

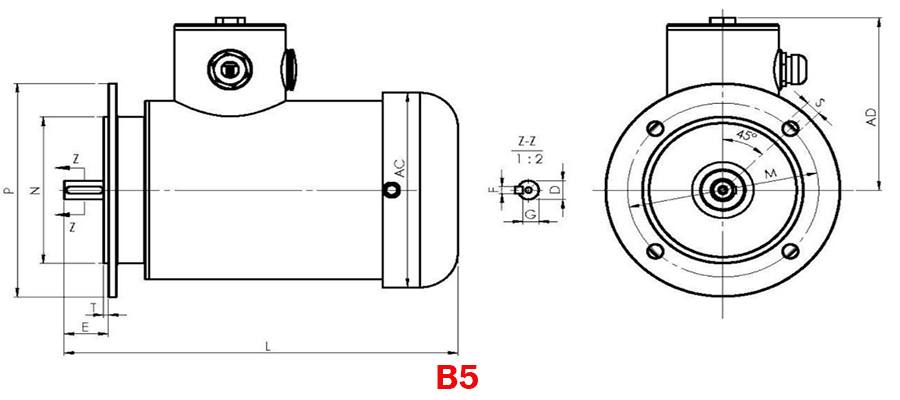

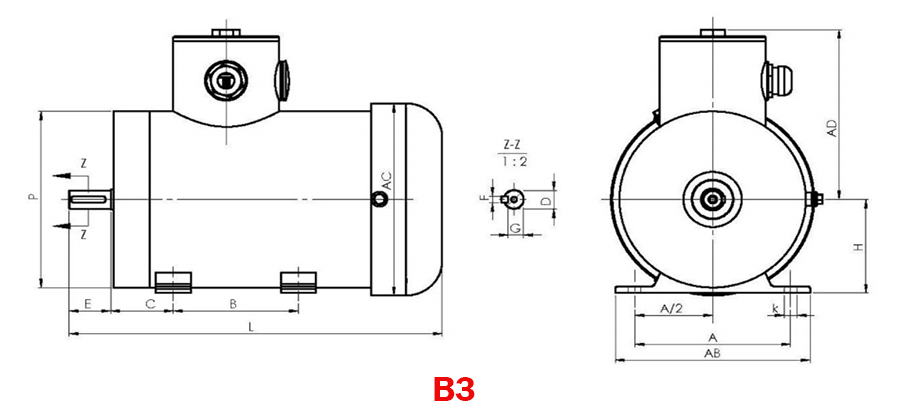

Dimension of 10hp stainless steel motor

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	132S	216	108	140	89	38	80	10	33	132	12	-	-	244		-	-	-	M12	246	256	192
B14		-	-	-	-	38	80	10	33	-	-	165	130	200	0	M10	3.5	4	M12	-	256	192
B5		-	-	-	-	38	80	10	33	-	-	265	230	300	0	15	4	4	M12	-	256	192

Details

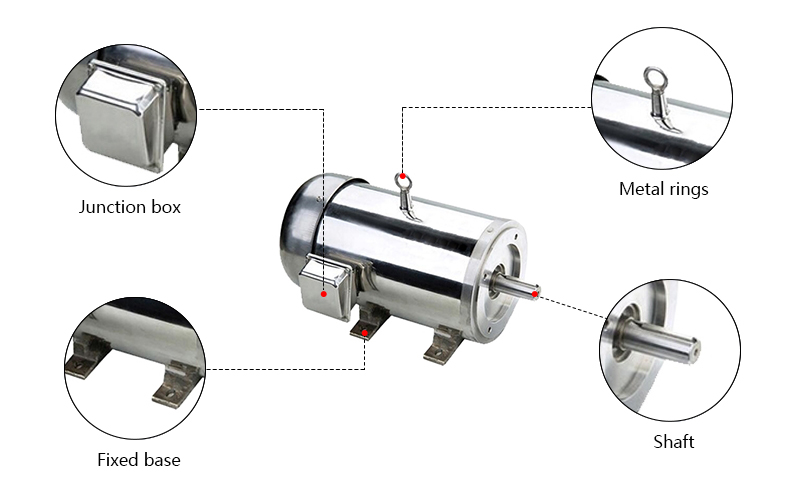

7500W Stainless Steel Motor Details

Tips: Types of Protection of Stainless Steel Motor.

Loss of pressure protection:
If the motor suddenly loses power during normal operation, it may start on its own when the power supply voltage is restored, causing a personal accident or damage to the mechanical equipment. The protection provided to prevent the self-starting of the motor or the electrical components from putting into work when the voltage is restored is called the voltage loss protection. The use of contactors and buttons to control the starting brake of the motor has the function of voltage loss protection. If the grid voltage disappears during normal operation, the contactor will automatically release and cut off the motor power supply.
