7.5hp (5.5kW) Variable Speed Motor, 3 Phase, 2P/ 4P/ 6P

3 phase variable speed motor with rated power 7.5hp (5.5kW), rated voltage 380V (380V~480V can be customized), fan voltage 380V. Variable speed electric motor has the advantages of beautiful appearance, high efficiency and energy saving, low noise, low vibration and reliable operation.

SKU: CCHN-VSM-132

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Good price adjustable speed electric motor with 2-pole/ 4-pole/ 6-pole for selection, rated current 11.2A/ 12A/ 13.4A, F grade insulation, IP55 protection grade. This type of induction motor is widely used in places that require energy-saving continuous operation and frequent work, such as air compressors, injection molding machines, water pumps.

Specification

Model	CCHN-VSM-132S1	CCHN-VSM-132S	CCHN-VSM-132M2
Numbers of pole	2P	4P	6P
Rated current	11.2A	12A	13.4A
Rated torque	17.5Nm	35Nm	52.5Nm
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2 Tst/ Tn	1.9 Tst/ Tn
Minimum torque/ rated torque	1.2 Tmin/ Tn	1.4 Tmin/ Tn	1.3 Tmin/ Tn
Weight	87kg	81kg	87kg
Constant power frequency conversion range	50-60Hz	50-100Hz
Rated power	7.5hp (5.5kW)
Mounting types	B3
Rated voltage	380V (380V-480V can be customized)
Fan voltage	380V
Constant torque frequency conversion range	3-50Hz
Locked-rotor current/ rated current	9 Ist/ In
Maximum torque/ rated torque	2.8 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

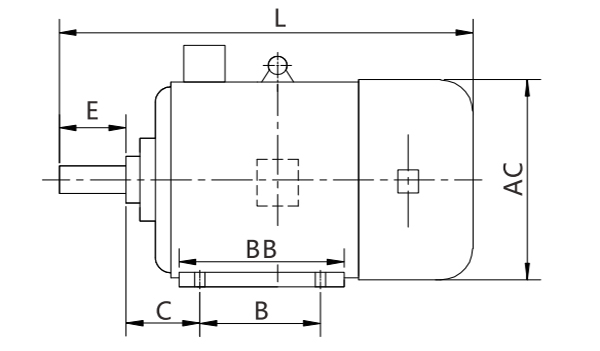

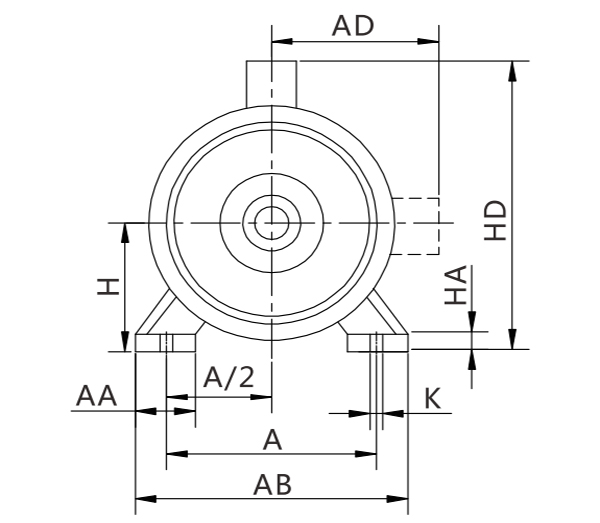

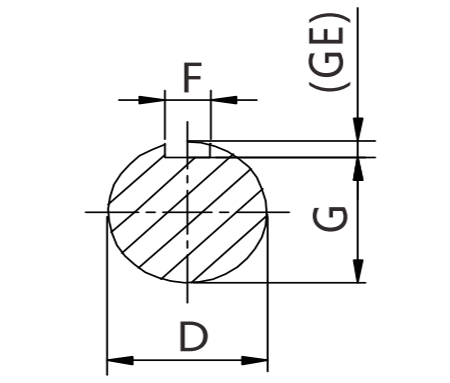

Variable frequency motor of 7.5hp Variable frequency motor of 1hp

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
132S	216	140	89	89	80	10	33	132	12	280	275	210	315	535
132M	216	178	89	89	80	10	33	132	12	280	275	210	315	575

Details

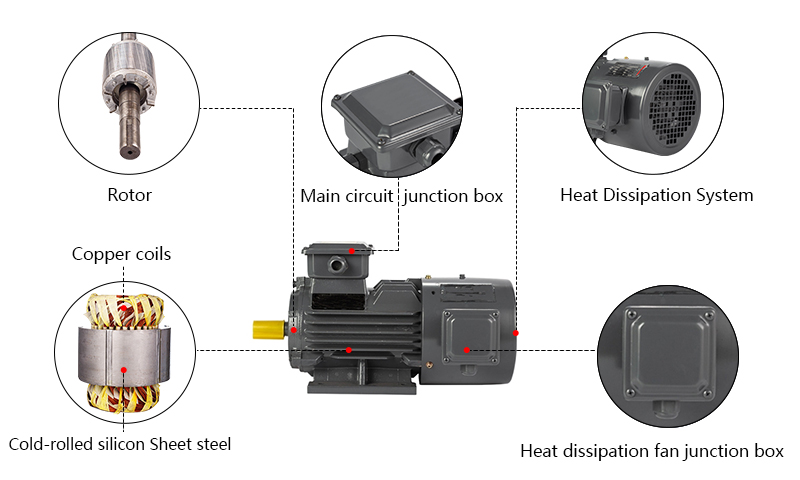

5500W Variable Speed Motor Details

Tips: Working Principle of Variable Speed Motor.

Inverter is an electric energy control device that uses the on-off action of power semiconductor devices to transform a power frequency power supply into another frequency. At the beginning of the 21st century, the frequency converter used mainly adopts AC-DC-AC (VVVF frequency conversion or vector control frequency conversion). First, the industrial frequency AC power supply is converted into DC power supply through the rectifier, and then the DC power supply is converted into frequency and voltage. Control AC power to supply the motor. The circuit of the frequency converter is generally composed of four parts: rectification, intermediate DC link, inverter and control. The rectification part is a three-phase bridge uncontrollable rectifier, the inverter part is an IGBT three-phase bridge inverter, and the output is a PWM waveform, and the intermediate DC link is filtering, DC energy storage and buffering reactive power.
