3hp (2kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

3hp (2kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

Competitive price stainless steel motor with rated power 2000W, B3/ B5/ B14 for selection, raged speed 2950r/ min, 50/ 60Hz frequency. Stainless steel electric motor has advantages of high level of protection, which can be used in the rain environment, smooth surface, convenient and quick cleaning, long service life, etc.

SKU: CCHN-IEC-90L

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

3 phase stainless steel motor with cheap price, which features three phase, rated voltage 208V~230V/ 460V. Stainless motor is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	CCHN-IEC-90L
Rated power	3hp (2kW)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TEFC
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	45kg
Certificate	CE, UL
Warranty	12 months

Dimension

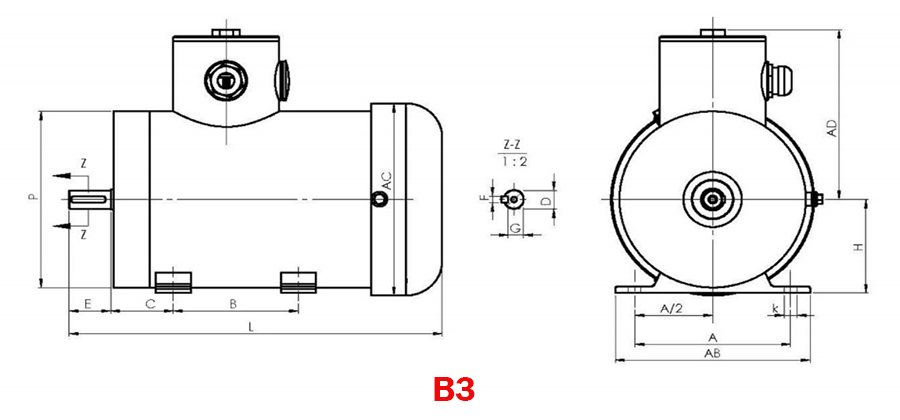

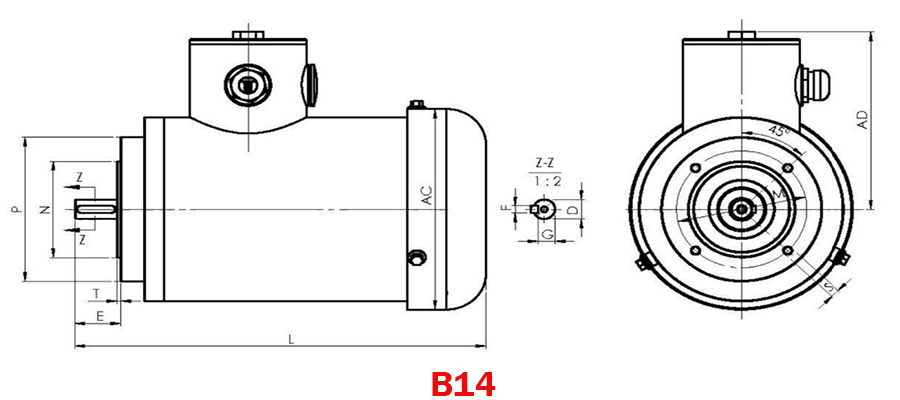

Dimension of 3hp stainless steel motor

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	90L	190	95	140	70	28	60	8	24	112	12	-	-	206	-	-	-	-	M10	220	218	174
B14		-	-	-	-	28	60	8	24	-	-	130	110	160	0	M8	3.5	4	M10	-	218	174
B5		-	-	-	-	28	60	8	24	-	-	215	180	250	0	15	4	4	M10	-	218	174

Details

2000W Stainless Steel Motor Details

Tips: Types of Protection of Stainless Steel Motor.

Short circuit protection:
A short circuit is a phenomenon in which current flows through an abnormal path due to insulation damage, wiring errors, and other reasons. The instantaneous short-circuit current may reach dozens or even hundreds of times the rated current of the motor. If the power supply cannot be cut off in time, it may cause irreparable damage to the motor, and may also cause electric shock, fire and other hazards. The short-circuit protection should meet the following requirements: one is that the power supply must be cut off within a short time; the other is that the protection device should not malfunction when the motor is started and braked normally.
