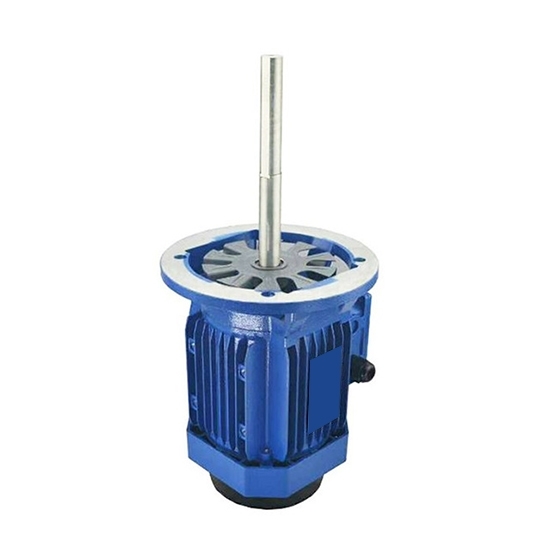

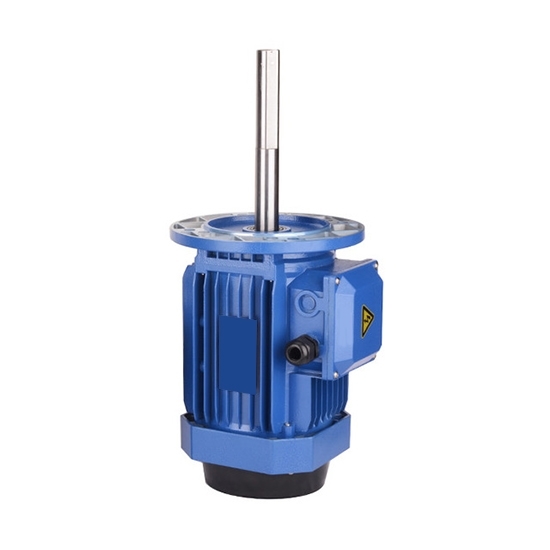

1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm

1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm

AC induction motor with economical price. 180mm long shaft, optional output power 1/1.5/2 hp, speed 2/4/6 poles, maximum 2800 rpm, max torque 2.3 N.m, working voltage 3-phase 100-380V. Long shaft induction electric motor especially for high temperature (≤ 200℃).

SKU: CCHN-LSIM-15180

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Long shaft induction motor for sale, shaft length 180mm, working power 1/1.5/2 hp for selection, power supply 3-phase 100~380V, speed 2/4/6 poles, 910~2800 rpm. High temperature AC induction electric motor with long shaft, applications include oven, low temperature quick freezing, constant temperature box, glass machinery, tunnel furnace, etc.

Specification

Model	CCHN-B5F-ABB
Rated Voltage	3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)	Base Type
2 Poles
1 hp (750W)		2800	1.8	0.84	75	2.53	6.5	2.2	2.3	80
1.5 hp (1100W)		2800	2.5	0.86	77	3.71	7	2.2	2.3	80
2 hp (1500W)		2800	3.4	0.85	78	5.04	7	2.2	2.3	90
4 Poles
1 hp (750W)		1390	2	0.76	74.5	5.15	6	2.3	2.3	80
1.5 hp (1100W)		1400	2.8	0.78	78	7.50	6.5	2.3	2.3	90
2 hp (1500W)		1400	3.7	0.79	79	10.25	6.5	2.3	2.3	90
6 Poles
1 hp (750W)		910	2.3	0.7	72.5	7.87	5.5	2	2.2	90
1.5 hp (1100W)		910	3.2	0.72	73.5	11.54	5.5	2	2.2	90
2 hp (1500W)		940	4	0.74	77.5	15.24	6	2	2.2	100

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

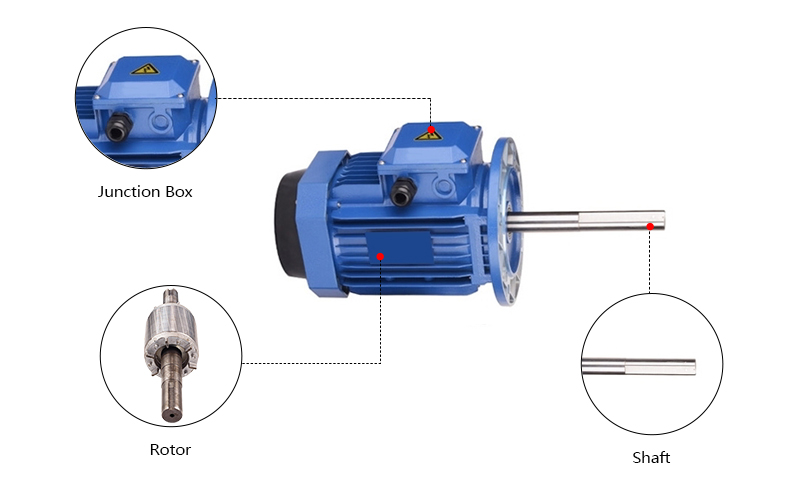

Details

1.5 hp 180mm Long Shaft Induction Motor Dimensions (Unit: mm)

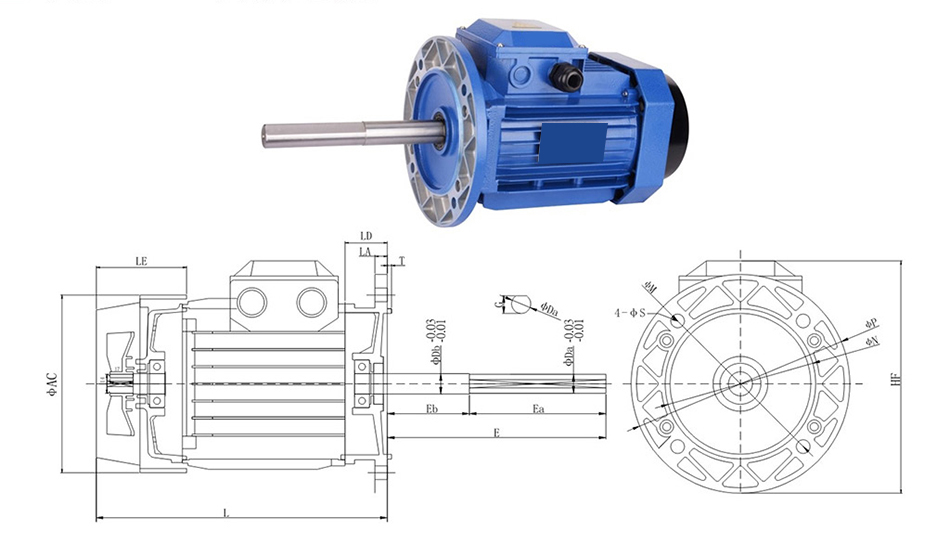

Ordinary Flange

Motor Base Center Height	Insulation Class	Flange Mounting Dimension					L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Motor Base Center Height	Insulation Class	Φ M	Φ N	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
80	F	165	130	200	12	3	12	31	63	225	142	205	19	20	100	80	180	18	6204	6204
90	F	165	130	200	12	3	12	31	75	258	154	226	24	25	100	80	180	23	6205	6205
100	F	215	180	250	15	4	12	34	80	288	181	263	28	30	100	100	200	27	6206	6206

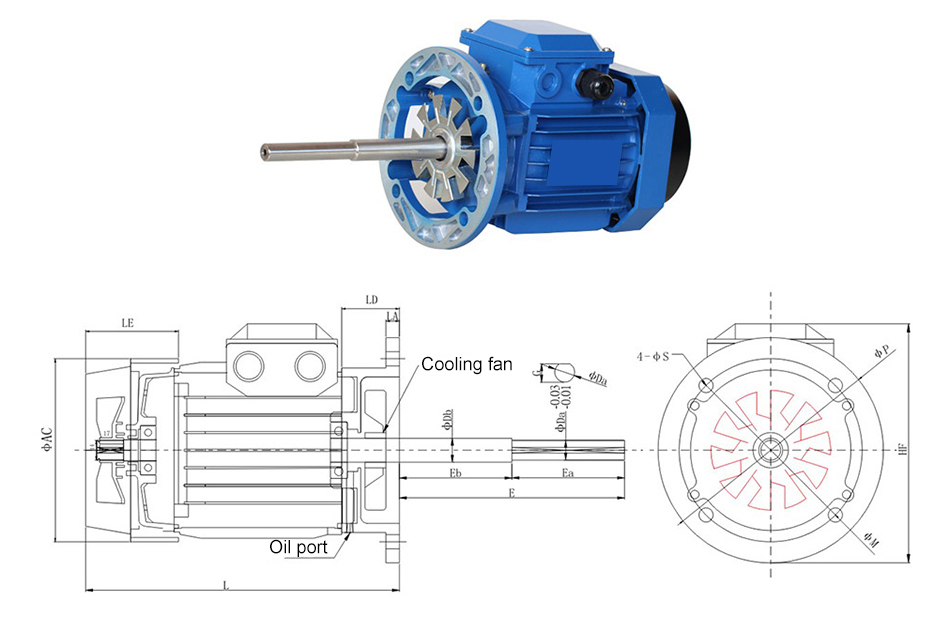

Heightening Flange

Motor Base Center Height

Insulation Class

Flange Mounting Dimension

L_A

L_D

L_E

Φ AC

Shaft Dimension

Bearing

Φ M

Φ P

Φ S

Φ Da

Φ Db

L.S.

O.S.

165

200

270

154

226

100

180

22.5

6205
