1 hp/2 hp 180mm Long Shaft Induction Motor, 2800 rpm

1 hp/2 hp 180mm Long Shaft Induction Motor, 2800 rpm

Buy long shaft AC induction motor at good price. Shaft length 180mm, working power 1 hp (750W) or 2 hp (1500W) for selection, speed 2/4/6 poles, 910~2800 rpm, max torque 2.3 N.m, rated voltage 100-380V, single phase/3-phase. Long shaft induction electric motor suits 90 flange, 200℃ high temperature resistance.

SKU: CCHN-LSIM-12180

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Long shaft AC induction motor for sale. Rated power 1 hp (0.75kW) or 2 hp (1.5kW), power supply single phase/3-phase 100~380V, optional speed 2/4/6 poles, maximum 2800 rpm. AC induction electric motor with 180mm long shaft, suitable for high temperature use, small size and high speed.

Note: Please contact our sales to inquire about drawings before placing an order.

Specification

Model	CCHN-YTG-B5/B5F
Rated Voltage	Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)	Base Type
2 Poles
1 hp (750W)		2800	1.8	0.84	75	2.53	6.5	2.2	2.3	80
2 hp (1500W)		2840	3.4	0.85	78	5.04	7	2.2	2.3	90
4 Poles
1 hp (750W)		1390	2	0.76	74.5	5.15	6	2.3	2.3	80
2 hp (1500W)		1400	3.7	0.79	79	10.25	6.5	2.3	2.3	90
6 Poles
1 hp (750W)		910	2.3	0.7	72.5	7.87	5.5	2	2.2	90
2 hp (1500W)		940	4	0.74	77.5	15.24	6	2	2.2	100

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

Details

1 hp/2 hp 180mm Long Shaft Induction Motor Dimensions (Unit: mm)

Ordinary Flange B5

Flange	Motor Base Number	Insulation Class	Flange Mounting Dimension					L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Flange	Motor Base Number	Insulation Class	Φ M	Φ N	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
80	125	H	130	130	200	12	3	10	35	65	240	145	145	24	25	100	80	180	23	6304	6203
90	140	H	165	130	200	12	3	10	35	75	260	165	160	24	25	100	80	180	23	6304	6303

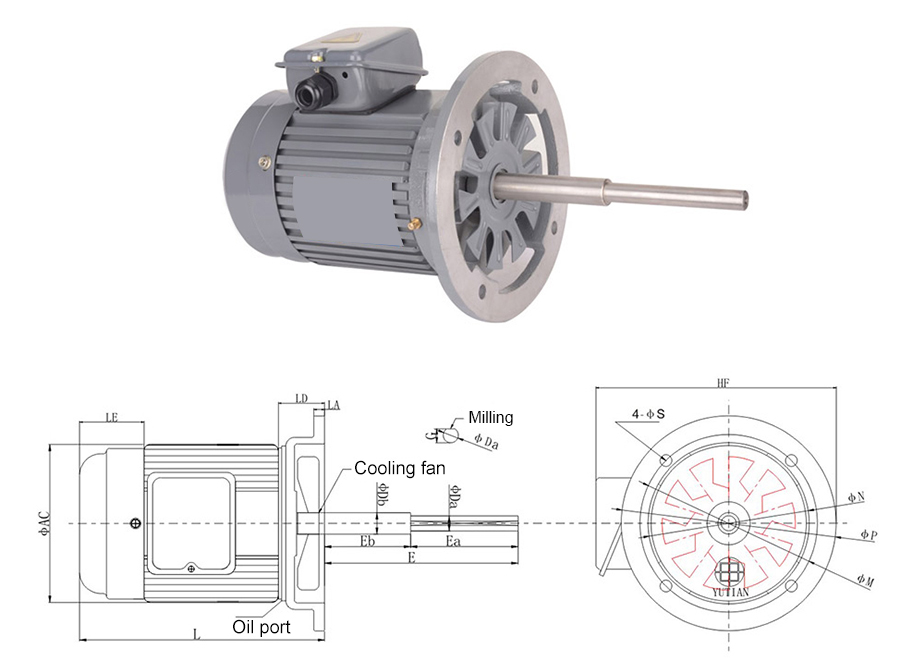

Heightening Flange B5F

Flange	Motor Base Number	Insulation Class	Flange Mounting Dimension				L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Flange	Motor Base Number	Insulation Class	Φ M	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
80	125	H	165	200	12	-	10	43	65	228	145	145	24	25	100	80	180	23	6304	6203
90	140	H	165	200	12	-	10	40	75	248	165	160	24	25	100	80	180	23	6304	6303
