1 hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole

Cheap price brake motor with rated power 750 watt, rated voltage 380V (380V~480V can be customized), 2 pole/ 4 pole for selection, rated current 1.83A/ 2.05A, 2845r/ min/ 1390r/ min speed. 3 phase brake motor is widely used in shipbuilding, industrial, fire fighting, chemical industry, energy, mining gold, environmental protection and national defense construction.

SKU: CCHN-BM-80

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Factory price 1 hp brake motor with power factor 0.84 cosφ/ 0.76 cosφ, 7.5Nm static braking torque. Magnetic brake motor has the characteristics of small size, light weight, stable and reliable operation, large braking torque, fast braking speed, accurate positioning and convenient maintenance.

Specification

Model	CCHN-80M1-2	CCHN-80M2-4
Rated power	1hp (0.75kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	2.5N.m	5.2N.m
Speed	2845r/ min	1390r/ min
Current	1.83A	2.05A
Efficiency	75%	73%
Power factor	0.84 cosφ	0.76 cosφ
Locked-rotor current/ rated current	6.5 Ist/ In	6 Ist/ In
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2.3 Tst/ Tn
Weight	21kg	25kg
Static braking torque	7.5Nm
No-load brake lag time	0.2s
Energizing power	30W
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

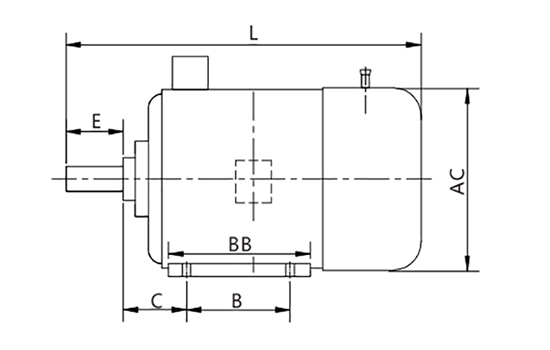

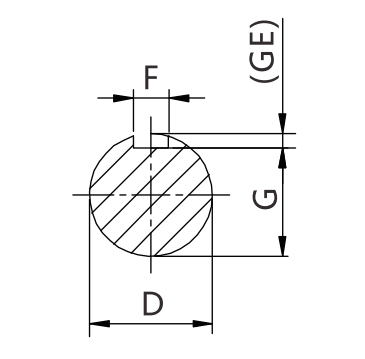

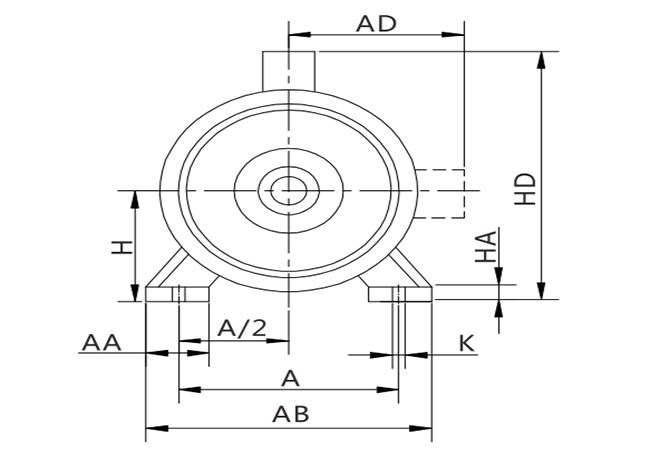

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
80S	125	100	50	19	40	6	15.5	80	10	165	175	150	175	390

Details

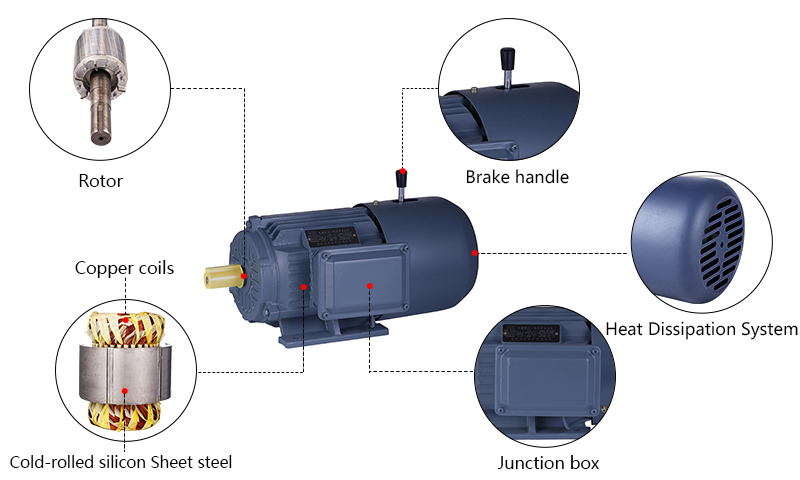

750W Brake Motor Details

Tips: What is Brake Motor?

The electromagnetic brake motor uses electromagnetic attraction to work. It needs to be connected to the power source before it starts to work. But there are restrictions on working conditions, that is, the altitude does not exceed 1000 meters, the temperature is -15~40°C, and the startup does not exceed 6 times per minute. The electromagnetic brake motor uses a high-quality aluminum alloy shell, which has the advantages of small and light weight, stable operation, accurate positioning, high work efficiency, and convenient maintenance.
