1/2 hp (0.37kW) 220V Single Phase AC Induction Motor

Popular 0.5 hp single phase motor is an asynchronous motor, equipped with a start capacitor and run capacitor to provide starting torque at rest. 1500rpm/3000rpm speed for selection, 220V/110V/230V/240V voltage is available. It is easy to repair and maintain, as well as affordable. 370W single phase induction motor is ideal for many applications, such as fans, compressors, pumps, cranes, garage door opening and closing systems.

SKU: CCHN-SPIM-370

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

370W 0.5 hp single phase motor, is also called an asynchronous motor. It has 1500rpm/3000rpm speed, 220V/110V/230V/240V voltage, and works at 50Hz/60Hz frequency. 1 phase motor is available with two capacitors, offers zero starting torque at rest, and supplies for homes, offices, stores and small non-industrial companies.

Specifications

Model	CCHN-YL711-2	CCHN-YL712-4
Rated Output	0.37kW (0.5hp)
Efficiency	67%	62
Power Factor	0.92 COSφ
Rated Speed	2800rpm	1400rpm
Rated Current	2.61A	1.9
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times
ls/ln	16 times	12 times

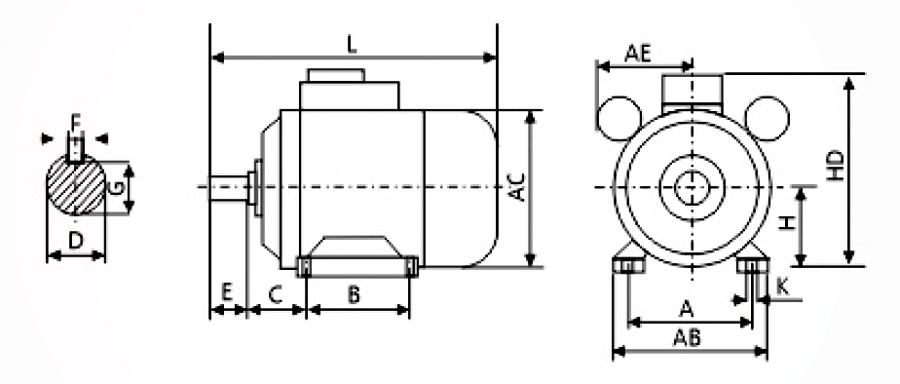

Dimension (Unit: mm)

Single phase motor dimension

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	145	145	140	105	180	255

Details

Single phase induction motor details

Tips: What is a Single Phase Induction Motor？

A single phase induction motor generally refers to a low-power asynchronous motor powered by a single-phase AC power supply. It usually has two-phase windings on the stator, and the rotor is of ordinary squirrel cage type. The distribution of the two-phase windings on the stator and the different power supply conditions can produce different starting characteristics and operating characteristics.
