Tilt Sensor, Relay Output, Single axis/ Dual axis, ±15°

Economical price tilt switch with relay NO/NC output, which features measuring range ±15°, power supply 12V/ 24V, working current 40mA, max. alarm output current 1000mA. wide range alarm angle valve 0-55° can be chosen. Single axis/ dual axis incline sensor is suitable for a variety of harsh industrial environments operating.

SKU: CCHN-SCA141

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Factory price inclinometer sensor for sale, comes with relay NO/NC output, measuring range ±15° absolute accuracy 0.1°, power on time 0.1s, and quick response time 0.2s. High precision tilt sensor is widely used for application like underground drilling rig attitude navigation, geological equipment tilt detection, railway locomotive monitoring, oil drilling equipment.

Specification

Model	CCHN-SCA141/142
Alarm Angle Value	0-55°
Power supply	9-36V DC
Max. alarm output current	1000mA
Working current	40mA
Measuring range	±15°
Measuring axis	X, Y
Resolution	0.01°
Absolute accuracy	0.05°
Long-term stability	0.05
Zero temp. coeffiecient	-40~85℃±0.006℃
Temp. sensitivity coefficient	-40~85℃ ≤ 100 ppm/℃
Power on time	0.1s
Response time	0.2s
MTBF	≥50000 h per time
IR	≥100M
Impact resistance	100g@11ms, 3 times/ axis (half sinusoid)
Anti-shock	10grms, 10-1000Hz
Waterproof	IP67
Cable	1m, shield cable: 4*0.04mm²
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (Unit=mm)

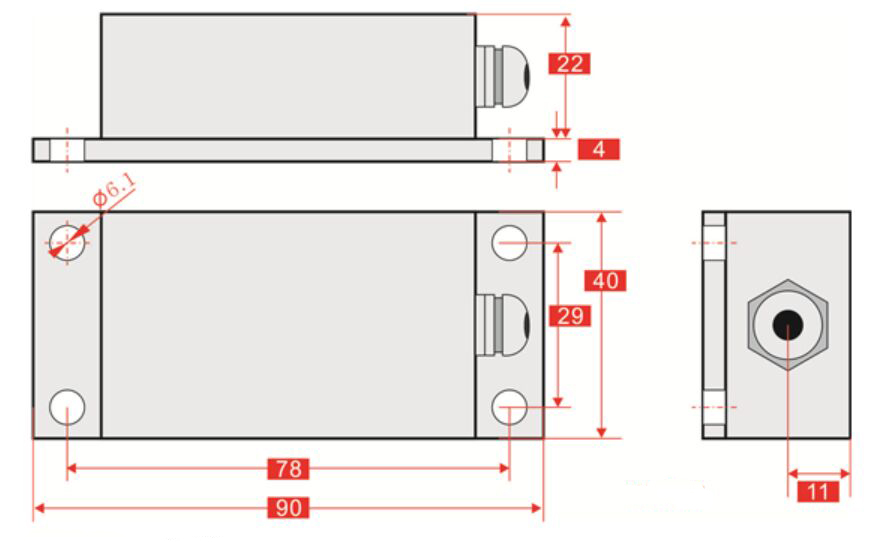

Dimension of relay output tilt sensor

Tilt Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

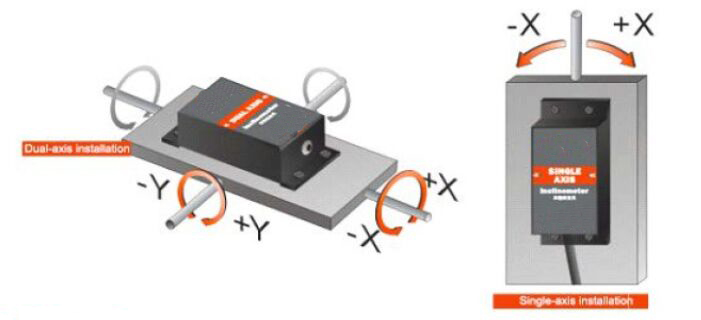

Installation of relay output tilt sensor

Tips: Working Principle of Tilt Sensor

The measurement range is ±15°. When the inclination value is greater than the preset inclination threshold, a switch signal (output voltage=supply voltage) will be output to drive the solenoid valve. Normally, it does not alarm for forward and reverse. The alarm number is output when the alarm threshold is exceeded; the alarm signal is output in the reverse direction, and the alarm is stopped when the alarm threshold is exceeded; the alarm angle can be set by the inclination switch, when the safe inclination value is exceeded, the switch signal will be output to shut down the system, and it can also be driven The alarm is easy to install, has strong resistance to external electromagnetic interference, and can withstand large shocks and vibrations.
