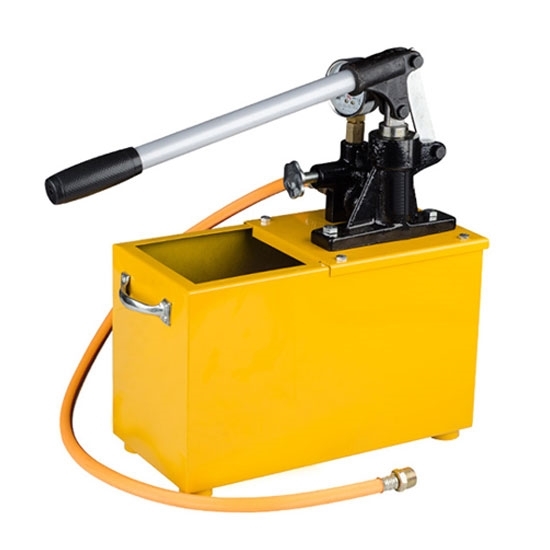

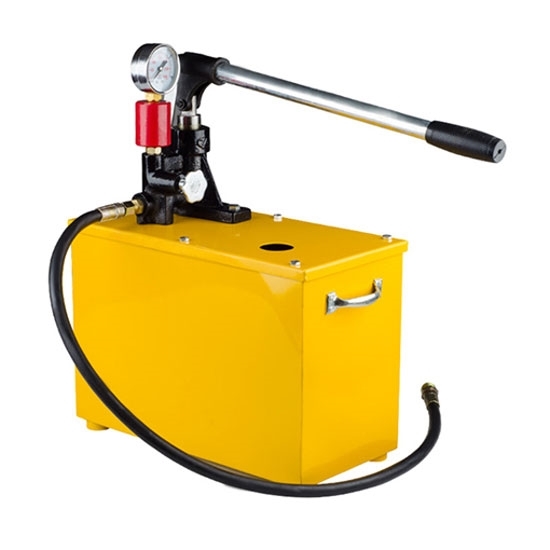

Manual Pressure Test Pump, 1.6-40 MPa

Pressure test pump price is affordable. Hydraulic test pump is used in pressure testing for various pressure vessels, valves, pipelines, rubber pipe fittings and steam boilers. It can also be used as equipment to provide high pressure liquid sources in various laboratories.

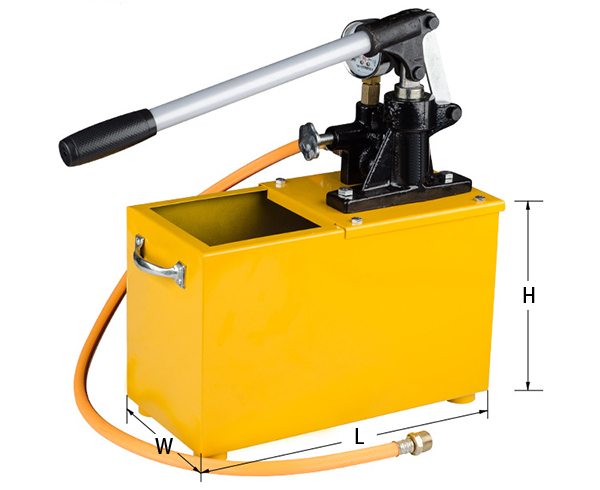

Specification:

Manual Pressure Test Pump Structure:

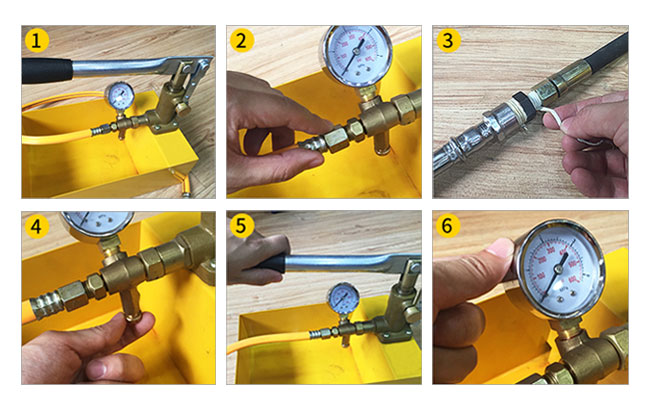

Manual Pressure Test Pump Operation Steps:

1. Assemble the pressure test pump, check whether the main body and accessories are complete.
2. Connect one end of oil tube to pump body. (Pay attention to seal connection and add gaskets, otherwise water will leak)
3. Connect the other end of oil tube to the pipeline to be tested. (Be sure to wrap it with PTFE TAPE)
4. Fill the tested pipe with water, exhaust air, then close the pressure relief valve.
5. Fill the water tank with water, then press the handle rod up and down to start pressure test and pressurization.
6. When the pressure gauge reading rises to the required value, pressurization can be stopped at this time.

Tips: Precautions for Using Manual Pressure Test Pump

• The normal water pressure of tap water is 0.3 MPa (0.1MPa is 1kg pressure), and the water pressure of high floors is 0.4 MPa.
• Water pipe pressure testing is generally between 0.8-1.0 MPa. Pressure testing time for household pipelines is maintained at 2 to 4 hours. (The specific situation is subject to the actual construction environment)
• Pressure testing for home should be between 0.8-1.0 MPa. Excessive pressure will shorten the service life of pipeline and even cause fatal damage to pipeline. For industrial pressure testing, adjust pressure according to demand.
• The manual pressure test pump has 3 sealing rings, which are located at the internal thread of union, the check valve and the pump body.
• These sealing rings have been installed at factory, and users do not need to install them again.
• Hose union must be installed last, otherwise the high pressure hose will be easily damaged.
