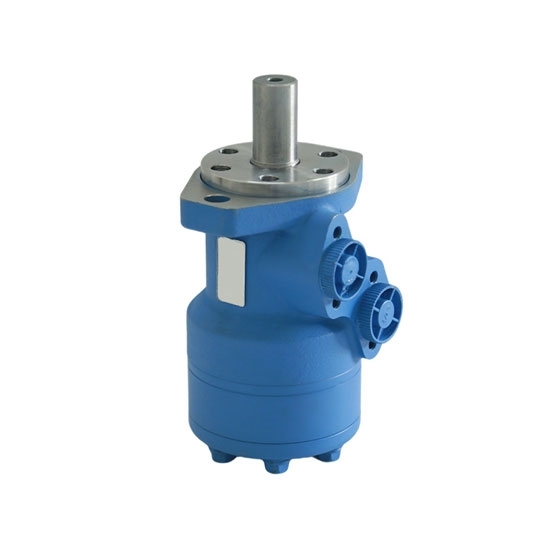

Hydraulic Orbital Motor, 125cc/rev

Low price hydraulic orbital motor with high performance shaft, can bear high pressure, high speed and high radial force. Mounting flanges of 2 bolts and 4 bolts, easy to install.

Specification

Note:

• A simultaneous maximum torque and maximum speed are not recommended.
• ∆Bar refers to true pressure difference between inlet port and outlet port.
• Continuous Rating means that the motor may be run continuously at these ratings.
• Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=154mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=160mm

Details

Tips: Main features of hydraulic orbital motors

1. The hydraulic orbital motor adopts end face flow distribution and axial face flow distribution. Its structure is simple and compact, and the flow distribution accuracy is high.
2. The hydraulic orbit motor adopts a toothed stator and rotor pair, high mechanical efficiency, and long service life under high pressure.
3. It adopts double-joint angular ball bearings, which can bear larger radial and axial loads, with low friction and high mechanical efficiency.
4. The advanced flow distribution mechanism design has the characteristics of high flow distribution accuracy and automatic wear compensation.
5. These motors are allowed to be used in series and in parallel, and the external drain port should be connected when used in series.
6. The tapered roller bearing support design has a large radial load capacity so that the motor can directly drive the working mechanism.
7. It has a variety of installation and connection forms such as flanges, output shafts, and oil ports.
