12V 800W Hydraulic Pump Motor, 4000rpm

12 volt hydraulic pump motor for dump trailer, 800W, 4000rpm rated speed, rated torque is 3Nm. 12V/24V hydraulic pump motor is widely used in bale bed, bale spike and hay bales, manufacturer direct sale.

SKU: CCHN-HPM-MD8018

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

12V/24V 800w hydraulic pump motor for sale, 4000RPM, rated torque of 3Nm, 110 amps rated current. CCHN hydraulic pump motor for a variety of hydraulic applications and systems.

Specifications

Model	CCHN-HM-MD8018
Rated Voltage	12V / 24V DC
Power	800W
Rated Current	12V 110A, 24V 50A
Ratation Speed	4000 RPM
Ratation Direction	CW
Torque	3 Nm
Protection Degree	IP54
Duty	S2=4 MIN S=10%ED
Weight	3 kg
Warranty	12 Months

Dimension (Unit=mm)

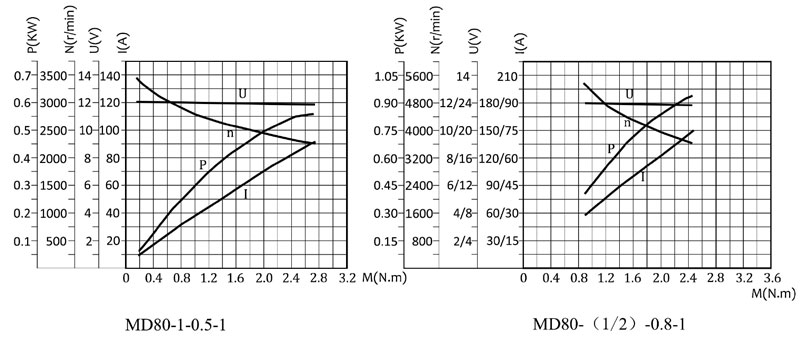

Torque Curve

Applications

Details

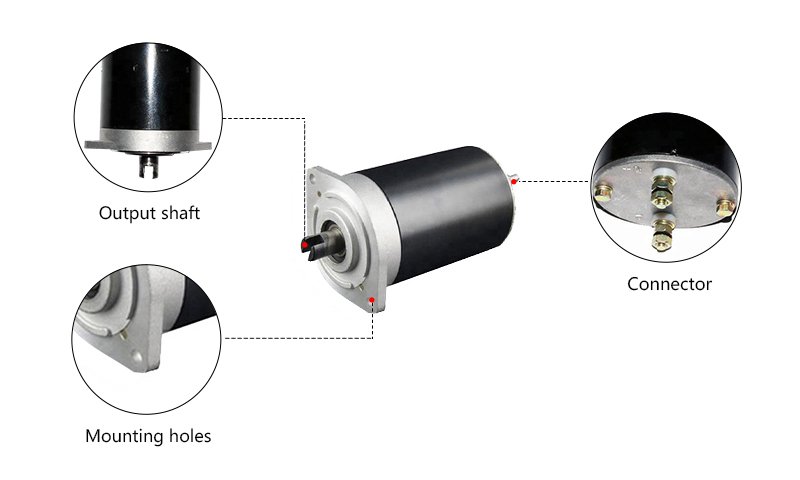

800W Hydraulic Pump Motor Details

Tips: The Role of The Hydraulic Pump Motor

In the hydraulic transmission system, the hydraulic pump is a power component of the hydraulic transmission system, and is an energy conversion device that converts mechanical energy input by a prime mover (such as a motor) into liquid pressure energy. It belongs to the power component in the hydraulic transmission system and is an important part of the hydraulic transmission system. Its function is to provide pressure oil to the hydraulic system.
