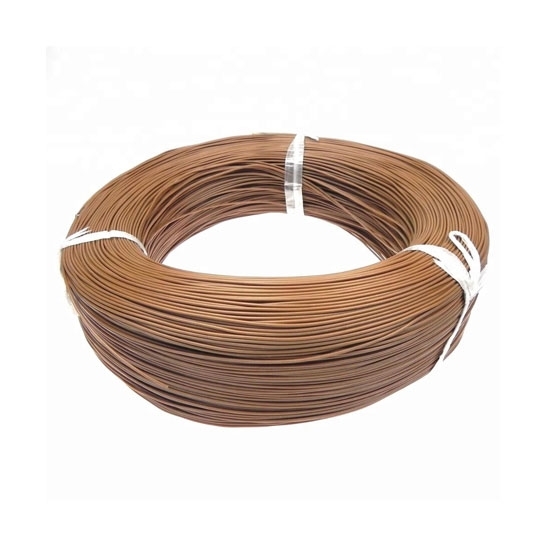

28AWG Hook-Up Wire, UL1061, 300V, 2000 ft

28AWG Hook-Up Wire, UL1061, 300V, 2000 ft

Cheap 28AWG electrical insulated hook-up wire with 300V rated voltage, 2000 ft. /roll. AWM wire meets UL 1061 standard for tinned cooper wire and PVC outer cover for insulation. Different colors for your choices.

SKU: CCHN-UL1061-28

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1061-28
UL Style		1061
Size		28 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.127mm
Conductor Resistance 20℃		239.00 Ω/km
Conductor Diameter		0.38mm
Insulation		PVC
Insulation Thickness	Nom.	0.25mm
	Min.	0.18mm
Overall Diameter	Average	0.88mm
	Tolerance	±0.10mm
Package		2000 ft/roll
Weight		1kg

Details

Details of UL1061 28AWG Isulated Copper Wire
