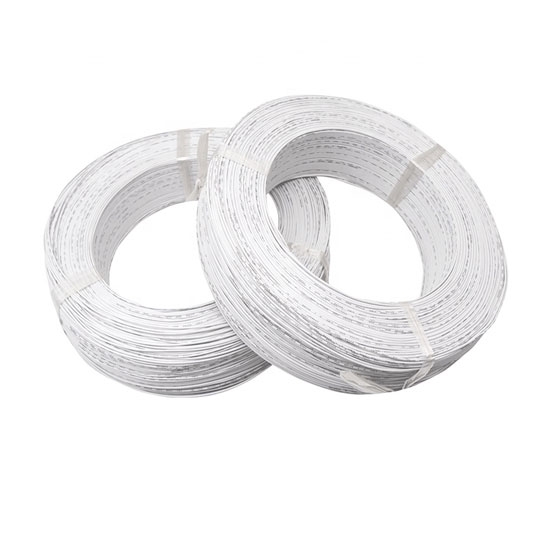

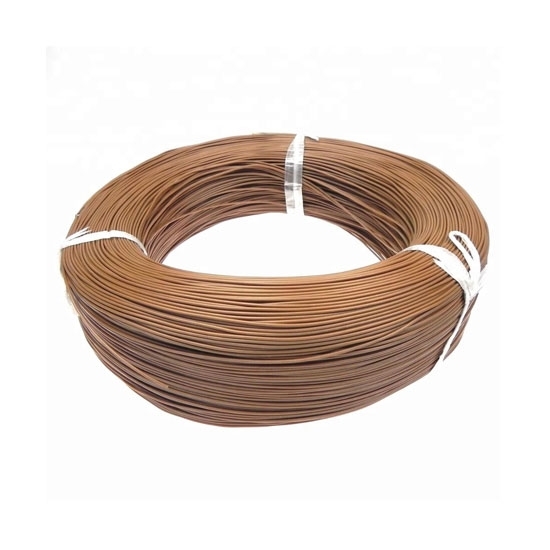

24AWG Hook-Up Wire, UL1061, 300V, 2000 ft

24AWG Hook-Up Wire, UL1061, 300V, 2000 ft

Low cost 24AWG stranded hook-up wire meets UL 1061 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.

SKU: CCHN-UL1061-24

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Our hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1061-24
UL Style		1061
Size		22 AWG
Rated Voltage		600V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 11/ 0.16mm
Conductor Resistance 20℃		94.20 Ω/km
Conductor Diameter		0.61mm
Insulation		PVC
Insulation Thickness	Nom.	0.25mm
	Min.	0.18mm
Overall Diameter	Average	1.10mm
	Tolerance	±0.10mm
Package		2000 ft/roll
Weight		2kg

Details

Details of UL1061 24AWG Isulated Copper Wire
