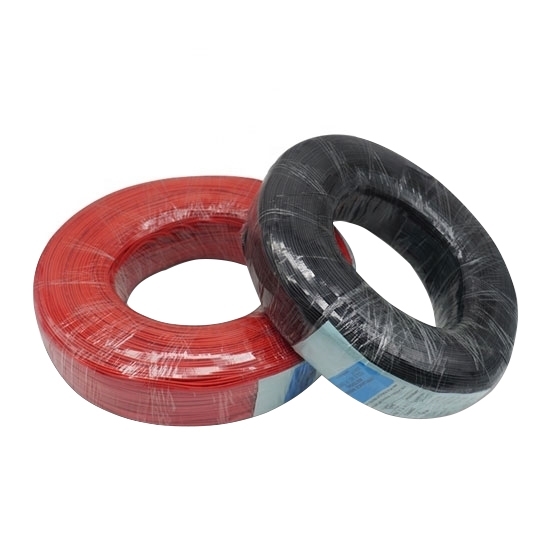

20AWG Hook-Up Wire, UL1015, 600V, 2000 ft

20AWG Hook-Up Wire, UL1015, 600V, 2000 ft

Electric stranded hook-up wire with economical price, 22AWG, 600V rated voltage, 2000 ft/ roll, meets UL 1015 standard for tinned copper wire, selectable different colors of insulated PVC outer cover.

SKU: CCHN-UL1015-20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1015-20
UL Style		1015
Size		20 AWG
Rated Voltage		600V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		105 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 21/ 0.18mm
Conductor Resistance 20℃		36.70 Ω/km
Conductor Diameter		0.95mm
Insulation		PVC
Insulation Thickness	Nom.	0.80mm
	Min.	0.69mm
Overall Diameter	Average	2.55mm
	Tolerance	±0.10mm
Package		2000 ft/roll
Weight		7kg

Details

Details of UL1015 20AWG Isulated Copper Wire

Tips: What kinds of insulated wires are there?

The insulated wire has PVC insulated wire, PVC insulated flexible wire, nitrile soft PVC compounds insulated wire, rubber insulated wire, PVC insulated nylon sheathed wire, electric power and lighting soft PVC insulated wire and so on.
