28AWG Hook-Up Wire, UL1007, 300V, 2000 ft

28AWG Hook-Up Wire, UL1007, 300V, 2000 ft

Favorable price 28AWG electrical insulated hook-up wire, 300V rated voltage, 2000 ft. /roll. It meets UL 1007 standard for tinned cooper wire and PVC outer cover for insulation. Different colors for your choices.

SKU: CCHN-UL1007-28

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1007-28
UL Style		1007
Size		28 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.127mm
Conductor Resistance 20℃		239.00 Ω/km
Conductor Diameter		0.38mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.18mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		4kg

Details

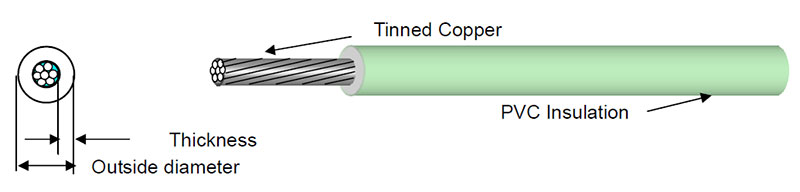

Details of UL1007 28AWG Isulated Copper Wire

Tips: Can UL1007 hook-up wire withstand -40℃？

UL1007 electric hook up wire is PVC outer cover for insulation which protects tinned or bare copper conductor from oil, chemistry and solvents. The temperature of PVC material is 0℃ to 80℃, so that it cannot tolerate -40℃, unless it adopts PVC cold-resistant rubber. In addition, the cold-resistant rubber generally needs to be customized.
