26AWG Hook-Up Wire, UL1007, 300V, 2000 ft

26AWG Hook-Up Wire, UL1007, 300V, 2000 ft

26AWG electrical insulated hook-up wire with low price, 300V rated voltage, 2000 ft. /roll. It meets UL 1007 standard for tinned cooper wire and PVC outer cover for insulation. Different colors for your choices.

SKU: CCHN-UL1007-26

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1007-26
UL Style		1007
Size		26 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.16mm
Conductor Resistance 20℃		150 Ω/km
Conductor Diameter		0.48mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.28mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		4kg

Details

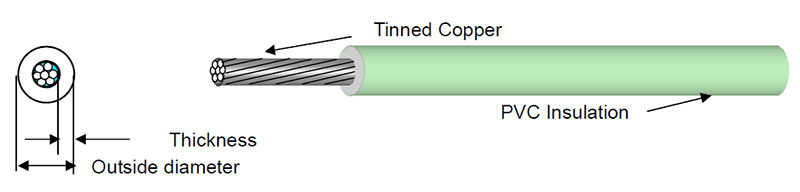

Details of UL1007 26AWG Isulated Copper Wire

Tips: Difference between UL1007 wire and UL1571 wire

Different pressure and temperature
The rated voltage of UL1007 wire is 300V, the rated temperature is 80℃. The rated voltage of UL1571 wire is 600V, the rated temperature is 105℃.
Different insulation thickness
UL1571 wire is thicker than UL1007 wire.
Different wire diameter
UL1007 wire is thinner than UL1571 wire in outer diameter.
