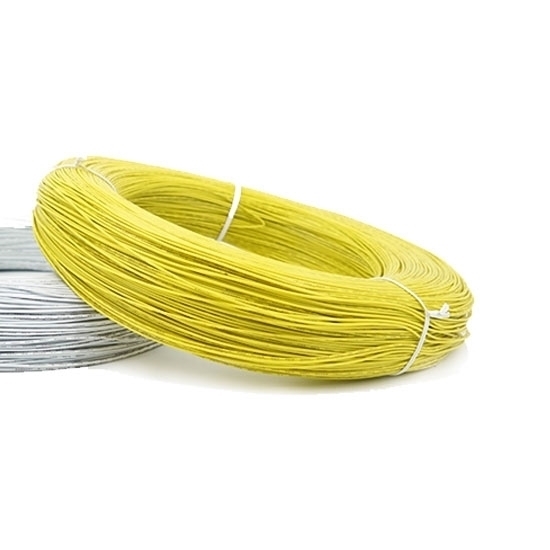

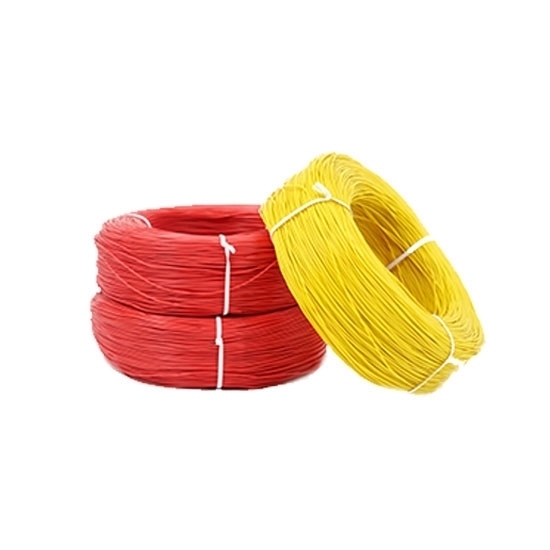

24AWG Hook-Up Wire, UL1007, 300V, 2000 ft

24AWG Hook-Up Wire, UL1007, 300V, 2000 ft

24AWG stranded hook-up wire meets UL 1007 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.

SKU: CCHN-UL1007-24

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1007-24
UL Style		1007
Size		24 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 11/ 0.16mm
Conductor Resistance 20℃		94.20 Ω/km
Conductor Diameter		0.61mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.41mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		5kg

Details

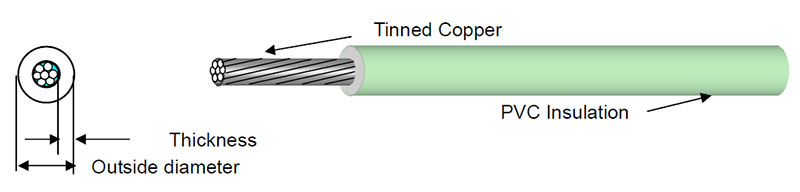

Details of UL1007 24AWG Isulated Copper Wire
