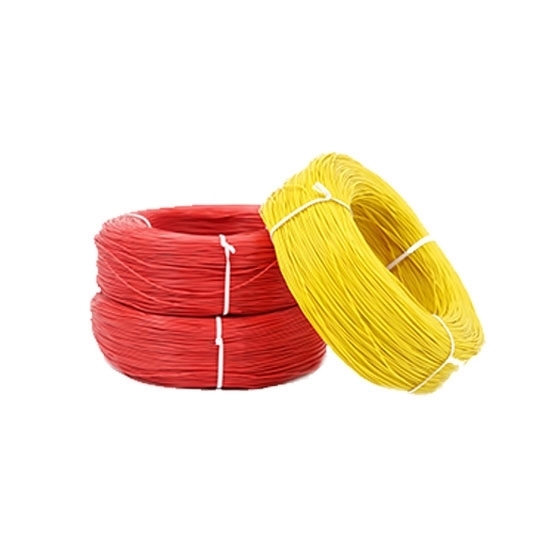

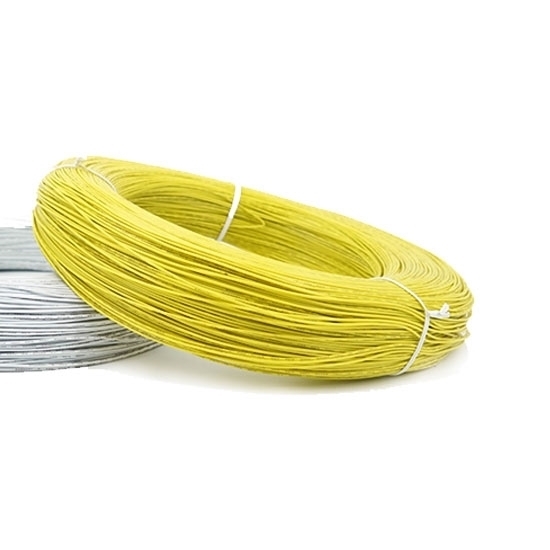

22AWG Hook-Up Wire, UL1007, 300V, 2000 ft

22AWG Hook-Up Wire, UL1007, 300V, 2000 ft

Buy 22AWG insulated hook-up wire at ATO, 300V, 2000 ft. It meets UL 1007 standard for tinned cooper wire. Electric stranded cable with different color of PVC outer cover for insulation, widely used in wiring appliances and electronics.

SKU: CCHN-UL1007-22

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		CCHN-UL1007-22
UL Style		1007
Size		22 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.254mm
Conductor Resistance 20℃		59.40 Ω/km
Conductor Diameter		0.76mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.56mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		6kg

Details

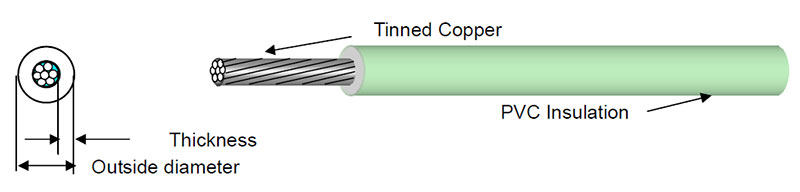

Details of UL1007 22AWG Isulated Copper Wire

Tips: What are the uses of UL1007 wires?

UL1007 wires are used in automotive industry, mechanical equipment, computers, household appliances, electronic and electrical equipment internal wiring.
